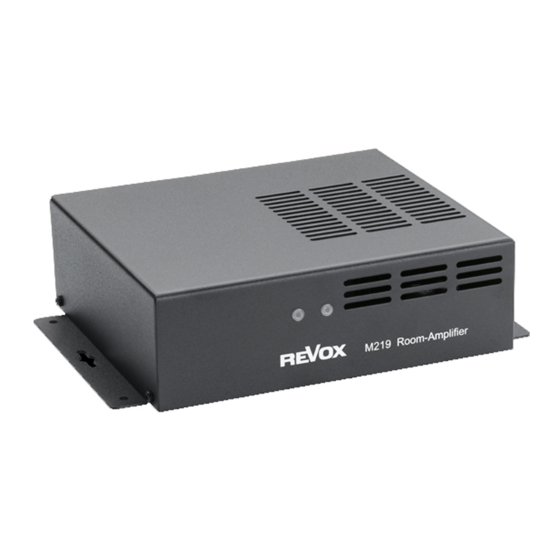

Summary of Contents for Revox M219

  • Page 1 The Philosophy of Excellence of Switzerland Dd l...
  • Page 2: Table Of Contents

    M219 Additional room amplifier M Series Contents M219 Additional room amplifier Safety Installation and operation Safety measures Warranty Front view Connection plan Detailed description [1] Local IN 1 2 3 [2] PRE OUT [3] DIL Setup switches (1) IR receiver...
  • Page 3: M219 Additional Room Amplifier

    M219 Additional room amplifier General You should avoid installing it in locations where: The M219 is a digital Additional there is direct sunlight Room Amplifier from the newest it is next to a heat source M Series in the Multiroom there is poor ventilation programme.
  • Page 4: Safety

    M219 Additional room amplifier M Series Safety Installation and operation Please take note of the Please check the unit and information shown on the labels accessories for any signs of on the rear of the unit. Housings transit damage, once you have should not be removed, in order unpacked it.
  • Page 5: Safety Measures

    M219 Additional room amplifier M Series Safety measures Warranty Operational anomalies Device regulations In the case of any unusual offers a warranty in noises or smells coming from EU/EEA countries on products the unit, remove the power bought within the EU, in cable immediately.
  • Page 6: Front View

    The InfraRed sensor receives signals from the remote control The ventilation slots on the front or from any other IR control and the top of the M219 must devices, such as the PDAs for always be left clear of the music server.
  • Page 7: Connection Plan

    M219 Additional room amplifier M Series Connection plan Rear view M219 LINK SETUP LOCAL IN 5 6 7 8 FUSE AC - POWER CHANNEL + R - - L + SELECT MR-BUS SPEAKERS [10] [11] [12] Short descriptions Stereo/ Mono switch...
  • Page 8: Detailed Description

    Detailed descriptions LOCAL IN 1 2 3 PRE OUT Local Cinch inputs L/R Preamp outputs L/R The M219 has 3 local line Using the M219s preamp inputs for a CD player, video outputs, additional output recorder or TV, for example,...
  • Page 9: Dil Setup Switches

    M219 infrared receiver In some cases, e.g. in buildings with glass internal walls, it can be useful to switch the M219 IR receiver off, in order to avoid operational conflicts with other devices. DIL switch DIL position...
  • Page 10: Pre Out

    M219. This means that the M219 speaker output remains active. Fixed Volume: In this mode, the volume control and the M219 output devices are deactivated, i.e. the volume cannot be controlled by any wall-mounted or infrared remote control. The speakers connected to the M219 remain silent.
  • Page 11 (from serial # 000) Using the voltage input IN on the M219, the local audio input LOCAL IN 1 can be activated by the application of 5 – 24 VDC. This means that as soon as the voltage is present at IN, the M219 switches on automatically and selects the input LOCAL IN 1.
  • Page 12 M219 Additional room amplifier M Series Cabling: Voltage input IN Audio Local (audio)-source e.g. TV WITHOUT switching-voltage output Audio 5-24V Local (audio)-source OUT DC e.g. SAT-receiver WITH switching-voltage output M219 LINK LOCAL IN SETUP 5 6 7 8 115V / T1A L...
  • Page 13: Input In

    M219 addressing If you want to control each M219 individually, to use the alarm function of the M51 Timer, for example, it is necessary to assign each M219 its own address. The maximum number of M219s is limited to 8 per zone.
  • Page 14: [4] M219-Link

    IR receivers per M219 is 5. IR commands * Comment The M219 accepts all RC5 or A 3-core cable with screening RC6 commands and carries out is recommended. In this case, those that are intended for it. All...
  • Page 15: Input In

    2000 [6] IN Voltage input (from serial # Using the voltage input IN on the M219, the local audio input LOCAL IN 1 can be activated by the application of 5 – 24 VDC. This means that as soon as the voltage is present at IN, the M219 switches automatically to LOCAL IN 1, irrespective of which source had been selected previously.
  • Page 16: In Revox Mr Bus

    MR-BUS [9] OUT MR-BUS Multiroom Bus input Multiroom Bus output Connection of the Connection for a further M219, Multiroom Bus cable, which is which is connected with a connected to the Multiroom Multiroom Bus cable. central unit e.g. M51 MR A maximum of 8 M219s can be Module MKII.
  • Page 17: R-L Speakers

    A wrong polarity will on the M219 rating label (240V). not cause any damage to the If required, the M219 can be speaker or to the M219, but it modified to work with other can result in imprecise and voltages. This modification...
  • Page 18: M219 Cabling Plan Diagram

    M219 Additional room amplifier M Series...
  • Page 19: Multiroom Cabling

    EIA/TIA-568-B. screening. There is a complete screening around all four pairs. This EIA/TIA-568-B standard provides for the following assignment: Clamp Colour code wh/or wh/gn wh/bl wh/bn MR-signal Personal M219 Settings (DIL switches) DIL setup switches Room e.g. Bedroom...
  • Page 20: Technical Data

    M219 Additional room amplifier M Series Technical data Amplifier part: Music power: 2 x 100 Watt at 4 Ohm / 1% THD Frequency range: 10 Hz - 25 kHz / -3 dB Damping factor: > 200 at 8 Ohm / 1 kHz Harmonic distortion: 0.03 % at 10 Watt...
  • Page 21: Guarantee

    Operating instructions need, send the M219 carriage free and without any accessories to your national Sales Office. Please supply a complete description of the problem and a full return postal address. M219 Additional room amplifier Operating instructions / Part no.: 10.30.3017...
