Intermec AC1 Instructions

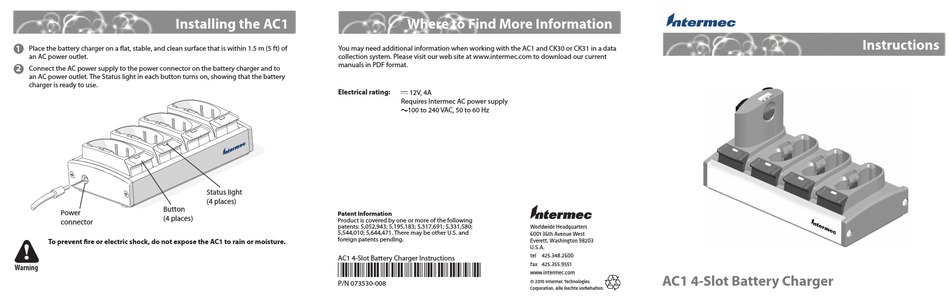

Installing the AC1
1
Place the battery charger on a flat, stable, and clean surface that is within 1.5 m (5 ft) of
an AC power outlet.
2
Connect the AC power supply to the power connector on the battery charger and to
an AC power outlet. The Status light in each button turns on, showing that the battery
charger is ready to use.
Button
(4 places)
To prevent fire or electric shock, do not expose the AC1 to rain or moisture.
You may need additional information when working with the AC1 and CK30 or CK31 in a data
collection system. Please visit our web site at www.intermec.com to download our current
manuals in PDF format.
Electrical rating:
Status light
(4 places)
Patent Information
Product is covered by one or more of the following
patents: 5,052,943; 5,195,183; 5,317,691; 5,331,580;
5,544,010; 5,644,471. There may be other U.S. and
foreign patents pending.
AC1 4-Slot Battery Charger Instructions
*073530-008* Specifications
P/N 073530-008
Where to Find More Information
x 12V, 4A
Requires Intermec AC power supply
v100 to 240 VAC, 50 to 60 Hz
Worldwide Headquarters
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
© 2010 Intermec Technologies
Corporation. Alle Rechte vorbehalten.

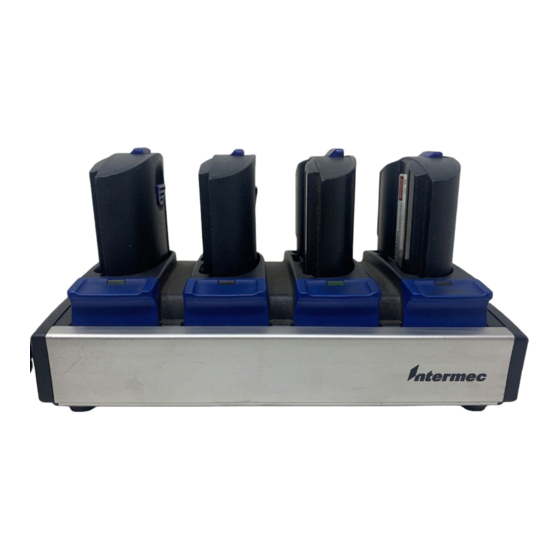

AC1 4-Slot Battery Charger
Instructions
