Intermec AC14 Quick Start Manual

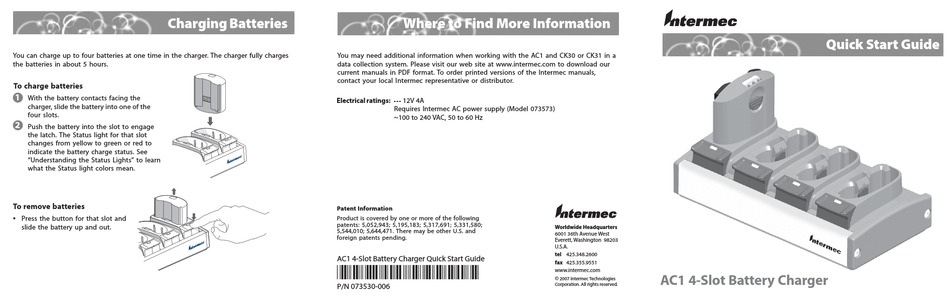

Charging Batteries

You can charge up to four batteries at one time in the charger. The charger fully charges
the batteries in about 5 hours.
To charge batteries
1
With the battery contacts facing the
charger, slide the battery into one of the
four slots.
2
Push the battery into the slot to engage
the latch. The Status light for that slot
changes from yellow to green or red to
indicate the battery charge status. See
"Understanding the Status Lights" to learn
what the Status light colors mean.
To remove batteries
•
Press the button for that slot and
slide the battery up and out.
Where to Find More Information
You may need additional information when working with the AC1 and CK30 or CK31 in a
data collection system. Please visit our web site at www.intermec.com to download our
current manuals in PDF format. To order printed versions of the Intermec manuals,
contact your local Intermec representative or distributor.
Electrical ratings: x 12V 4A
Requires Intermec AC power supply (Model 073573)
~100 to 240 VAC, 50 to 60 Hz
Patent Information
Product is covered by one or more of the following
patents: 5,052,943; 5,195,183; 5,317,691; 5,331,580;
5,544,010; 5,644,471. There may be other U.S. and
foreign patents pending.
AC1 4-Slot Battery Charger Quick Start Guide
Specifications
*073530-006*
P/N 073530-006
Worldwide Headquarters
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com

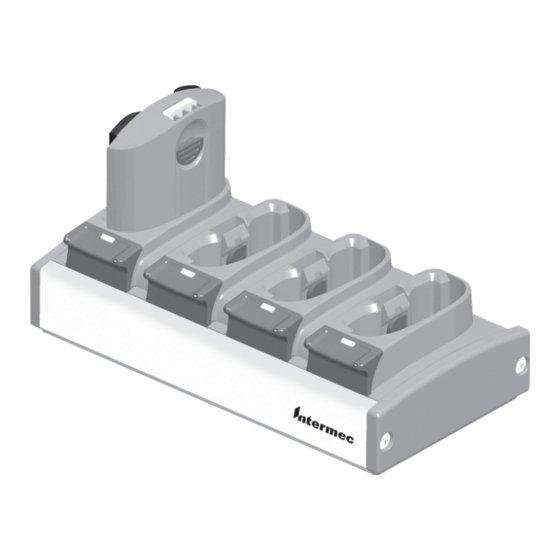

AC1 4-Slot Battery Charger
©
2007 Intermec Technologies
Corporation. All rights reserved.
Heading 1
Quick Start Guide
