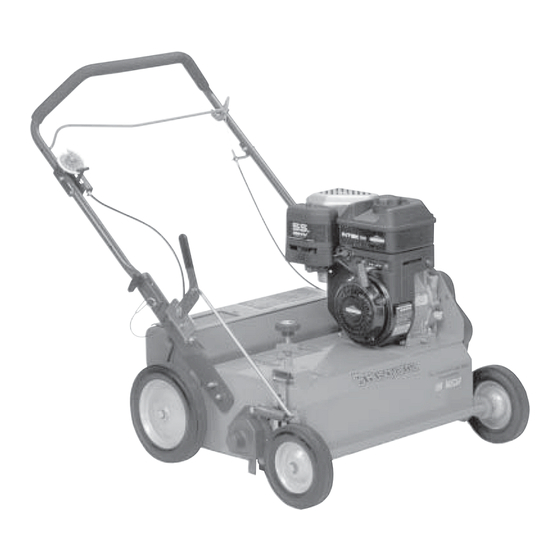

Husqvarna 968999131/DT22H5NRA Parts Manual

968999131/dt22h5nra; 968999212/dt22b5nra; 968999213/dt22b5fa; 968999243/dt22h5fa; 968999244/dt22b5dsa (sd22); 968999247/dt22nefa lawn mower.
Hide thumbs

Advertisement

Parts Manual
MANUAL NO. 539107175 REV. 06 (07/21/05)
Models:
968999131/DT22H5NRA
968999212/DT22B5NRA
968999213/DT22B5FA
968999243/DT22H5FA
968999244/DT22B5DSA (SD22)
968999247/DT22NEFA

Advertisement

   Related Manuals for Husqvarna 968999131/DT22H5NRA

   Summary of Contents for Husqvarna 968999131/DT22H5NRA

  • Page 1

    Parts Manual Models: 968999131/DT22H5NRA 968999212/DT22B5NRA 968999213/DT22B5FA 968999243/DT22H5FA 968999244/DT22B5DSA (SD22) 968999247/DT22NEFA MANUAL NO. 539107175 REV. 06 (07/21/05)

  • Page 2

    ©2005 Husqvarna. All Rights Reserved. Beatrice, NE. Printed in U.S.A.

  • Page 3: Table Of Contents

    INDEX HANDLE ASSEMBLY ......4-5 BODY ASSEMBLY ........ 6-7 FLAIL REEL ASSEMBLY ...... 8 DELTA REEL ASSEMBLY ..... 9 SPRING REEL ASSEMBLY ....10 DECALS ..........11 BAGGER ASSEMBLY ......12-13 SEEDER ASSEMBLY ......14-15...

  • Page 4: Handle Assembly

    HANDLE ASSEMBLY...

  • Page 5

    HANDLE ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ..539106758 ..1 ... HANDLE 2 ..539052561 ..2 ... FOAM GRIP 3 ..539106760 ..1 ... BAIL 4 ..539100481 ..2 ... KNOB 5 ..539106755 ..2 ... HANDLE SIDE 6 ..

  • Page 6: Body Assembly

    BODY ASSEMBLY...

  • Page 7

    BODY ASSEMBLY ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 1 .. 539106762 ..1 ..BODY 33 .. 540030485 ..1 ..KNOB 2 .. 539976941 ..2 ..HCS 3/8C X 1 1/4 34 .. 540052761 ..1 ..ROD, THREADED 3 ..

  • Page 8: Flail Reel Assembly

    FLAIL REEL ASSEMBLY ITEM PART NO. QTY. DESCRIPTION ..539107183 ..1 ..22" FLAIL REEL (COMPLETE) 1 ..539106641 ..1 ..SHAFT 2 ..539108113 ... 1 ..SPACER SET (56 SPACERS) 3 ..539108111 ... 1 ..SHAFT & HARDWARE SET(4 SHAFTS) 4 ..

  • Page 9: Delta Reel Assembly

    DELTA REEL ASSEMBLY ITEM PART NO. QTY. DESCRIPTION ..539107184 ..1 ..22" DELTA REEL (COMPLETE) 1 ..539100530 ..2 ..JAM NUT W/SETSCREW 2 ..539106653 ..2 ..END SPACER 3 ..539106651 ..15 ..BLADE MTG. PLATE 4 ..

  • Page 10: Spring Reel Assembly

    SPRING REEL ASSEMBLY ITEM PART NO. QTY. DESCRIPTION ..539107185 ..1 ..22" SPRING REEL (COMPLETE) 1 ..539106683 ..1 ..SHAFT 2 ..540108119 ... 1 ..SPRING W/HARDWARE SET (42 SPRINGS)

  • Page 11: Decals

    5 ..539104789 ... 1 ..DECAL SMALL CROWN 6 ..540200028 ... 1 ..DECAL, HEIGHT ADJUST 7 ..540200732 ... 1 ..DECAL, 12" HUSQVARNA W/CROWN 8 ..540200076 ... 1 ..DECAL, FOOT DANGER 9 ..539107359 ... 1 ..DECAL, GRAPHIC...

  • Page 12: Bagger Assembly

    BAGGER ASSEMBLY 11 7...

  • Page 13

    BAGGER ASSEMBLY ITEM PART NO. DESCRIPTION 1 ..539106799 ... 1 ..CHUTE 2 ..539106803 ... 1 ..TRAY 3 ..539107242 ... 1 ..BAG FRAME, BLACK 4 ..539106846 ... 2 ..EXTENDER 5 ..539106835 ... 1 ..SAFETY DOOR 6 ..

  • Page 14: Seeder Assembly

    SEEDER ASSEMBLY (INSIDE SEED BOX) (INSIDE SEED BOX) (INSIDE SEED BOX)

  • Page 15

    SEEDER ASSEMBLY ITEM PART NO. DESCRIPTION 1 ..539109374 ... 1 ..SEEDBOX 2 ..539106661 ... 2 ..AGITATOR 3 ..540000113 ... 2 ..SCREW, #8-32 X 3/8, TAPPING 4 ..539990580 ... 12 ..HCS 1/4C X 3/4 5 ..
