QuickSpecs

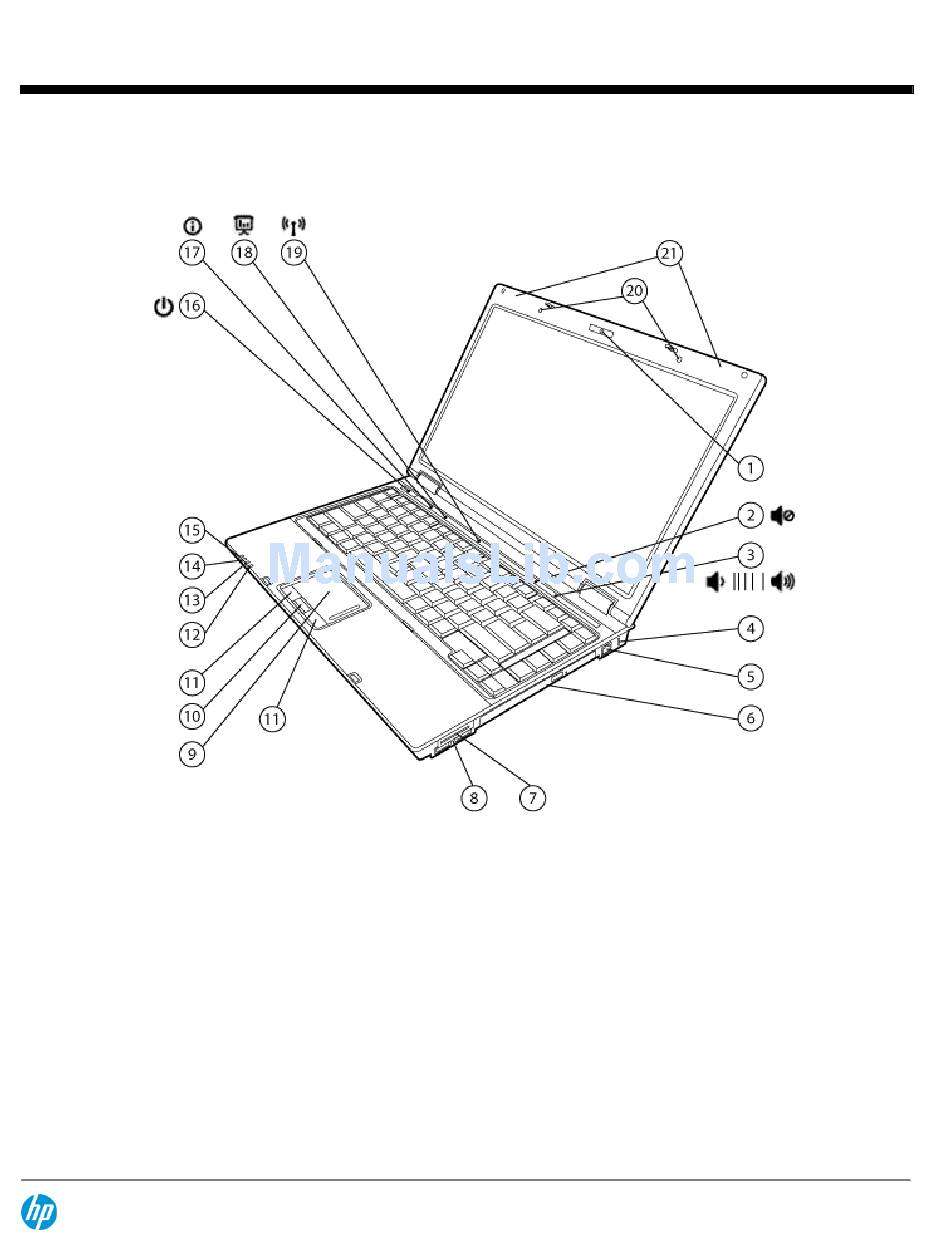

Overview
1.
Optional VGA webcam
2.
Volume mute button with LED indicator
3.
Volume scroll zone with up/down LED indicators
4.
Kensington Lock slot
5.
RJ-11/modem port
6.
Optical drive/Upgrade Bay
7.
Media Card Reader
8.
(2) USB 2.0 ports
9.
Touchpad with scroll zone
10. Optional HP Fingerprint Sensor
11. Touchpad buttons
DA - 13054 North America — Version 24 — June 17, 2010
HP Compaq 6535b Notebook PC
12. Hard drive activity / HP 3D DriveGuard LED indicator
13. Battery charging LED indicator
14. Power/standby LED indicator
15. Wireless on/off LED indicator
16. Power button with LED indicator
17. HP Info Center/ HP QuickLook 2 button with LED indicator
18. HP Presentation button with LED indicator
19. Wireless on/off button with LED indicator
20. Integrated microphone (dual-microphone array with webcam)
21. WLAN and WWAN antennas (select models)
Page 1
