QuickSpecs

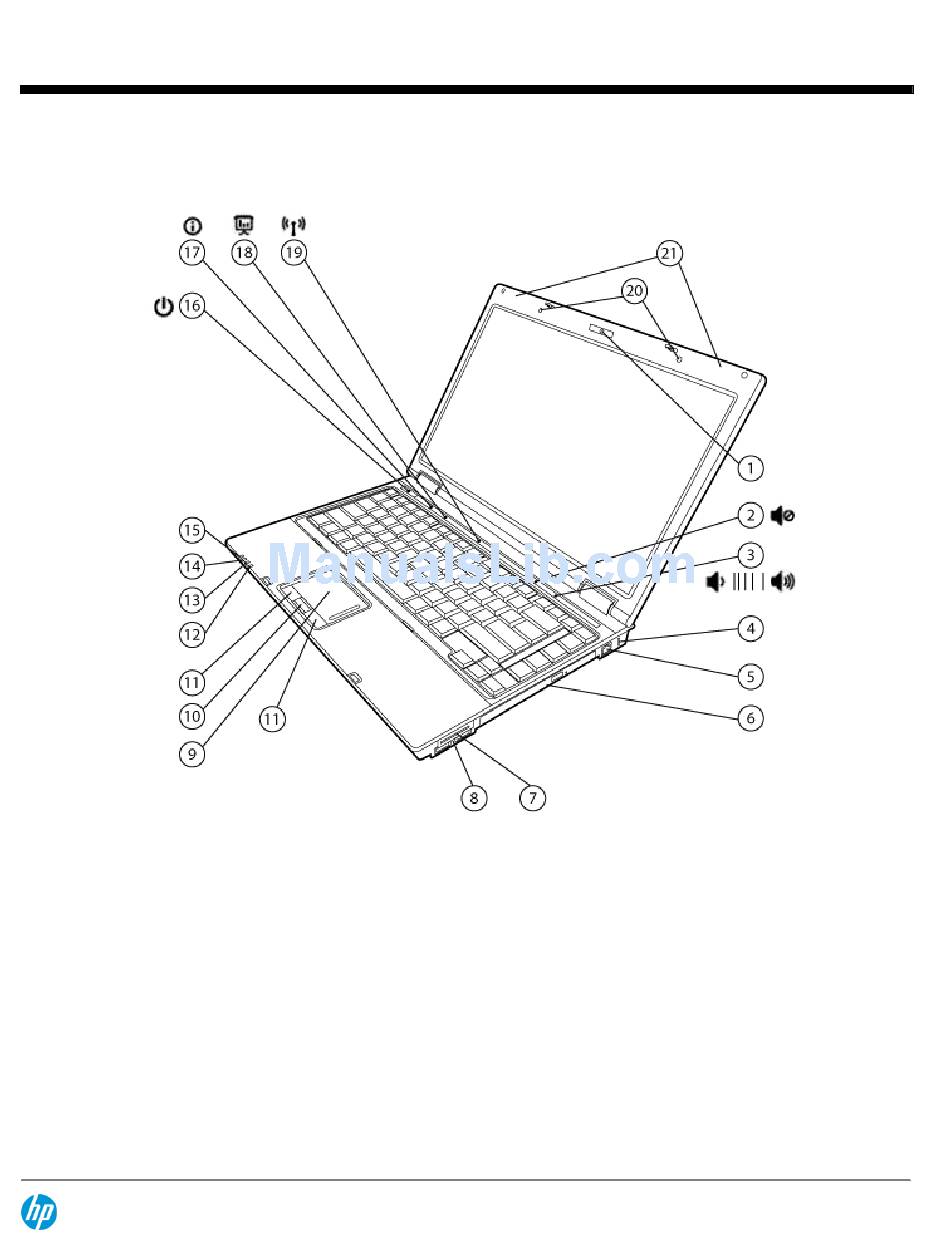

Overview
1.
Optional VGA webcam
2.
Volume mute button with LED indicator
3.
Volume scroll zone with up/down LED indicators
4.
Kensington Lock slot
5.
RJ-11/modem port
6.
Optical drive/Upgrade Bay
7.
Media Card Reader
8.
(2) USB 2.0 ports
9.
Touchpad with scroll zone
10. Optional HP Fingerprint Sensor
11. Touchpad buttons
DA - 13052 North America — Version 29 — June 17, 2010
HP Compaq 6530b Notebook PC
12. Hard drive activity / HP 3D DriveGuard LED indicator
13. Battery charging LED indicator
14. Power/standby LED indicator
15. Wireless on/off LED indicator
16. Power button with LED indicator
17. HP Info Center/ HP QuickLook 2 button with LED indicator
18. HP Presentation button with LED indicator
19. Wireless on/off button with LED indicator
20. Integrated microphone (dual-microphone array with webcam)
21. WLAN and WWAN antennas (select models)
Page 1

Advertisement

loading

Related Manuals for HP 6530b

Summary of Contents for HP 6530b

  • Page 1 15. Wireless on/off LED indicator RJ-11/modem port 16. Power button with LED indicator Optical drive/Upgrade Bay 17. HP Info Center/ HP QuickLook 2 button with LED indicator Media Card Reader 18. HP Presentation button with LED indicator (2) USB 2.0 ports 19.
  • Page 2 QuickSpecs HP Compaq 6530b Notebook PC Overview Stereo speakers 1394a port Stereo headphone/line out ExpressCard/54 slot or optional Smart Card Reader Stereo microphone in RJ-45/Ethernet port Display release latch 10. VGA/external monitor connector Power connector 11. S-Video TV out (2) USB 2.0 ports DA - 13052 North America —...
  • Page 3 HP QuickLook 2 for instant access to e-mail, calendar, and contact information Up to 500 GB 5400 rpm or 320 GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Enhanced reliability with magnesium alloy support structure and HP DuraFinish...

  • Page 4: Standard Features

    QuickSpecs HP Compaq 6530b Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9900 (3.06 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8800 (2.66 GHz, 3 MB L2 Cache , 1066 MHz FSB)*...
  • Page 5 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 6 QuickSpecs HP Compaq 6530b Notebook PC Standard Features Communications Integrated Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC)* 56K V.92 modem** * The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
  • Page 7 19 mm x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and comfort-dished keycaps. Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook 2, HP Presentation button, wireless on/off, mute, and volume up, volume down...
  • Page 8 QuickSpecs HP Compaq 6530b Notebook PC Standard Features Storage Hard drives 120/160/250/320/500 GB 5400 rpm SMART SATA II 160/250/320 GB 7200 rpm SMART SATA II NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to 10 GB is reserved for the system recovery software.
  • Page 9 First update included. Subscription required for updates thereafter. HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 10 System Management BIOS, previously known as DMI BIOS, is used to store system management information. HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security Manager capabilities through add-on software modules.
  • Page 11 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries or the HP Long Life Battery.
  • Page 12 HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.
  • Page 13 HP Primary SATA 120 GB 7200 rpm Hard Drive AH920AA HP Primary SATA 250 GB 5400 rpm Hard Drive AK072AA HP Upgrade Bay SATA 250 GB 5400 rpm Hard Drive AK868AA HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive AK869AA...
  • Page 14 HP Executive Leather Case RR316AA HP Deluxe Nylon Backpack RR317AA HP Deluxe Roller Case GD405AA Security HP ExpressCard Smart Card Reader with Java Card AJ451AA HP ProtectTools Java Card – 10 units EL348AA HP/Kensington MicroSaver Security Lock PC766A HP 14.1" Display Privacy Filter...
  • Page 15 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

  • Page 16: Internal Storage Device

    QuickSpecs HP Compaq 6530b Notebook PC Storage Upgrade Bay Drive Support Quantity Supported Drive Bay DVD+/-RW SuperMulti DL LightScribe Upgrade Bay Drive DVD/CD-RW Combo Drive Upgrade Bay DVD-ROM Drive Upgrade Bay 250 GB 5400 rpm SMART SATA II Upgrade Bay...

  • Page 17: Technical Specifications

    QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.28 in (at front) x 13.18 in x 9.56 in 32.6 mm (at front) x 334.8 mm x 242.8 mm Weight Starting at 5.31 lb (2.41 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components.
  • Page 18 HP Compaq 6530b Notebook PC Technical Specifications UKRSERTCOMPUTER * Configurations of the HP Compaq 6530b that are ENERGY STAR qualified are identified as HP Compaq 6530b ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 19 System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Fuel Gauge When pressed, LEDs light indicating level of charge remaining on battery...
  • Page 20 2.5 hours Standby System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Displays 14.1-inch WXGA anti- Active Area (W x H) 11.9 x 7.5 in (30.3 x 19.0 cm)
  • Page 21 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications 14.1-inch WXGA Active Area (W x H) 11.9 x 7.5 in (30.3 x 19.0 cm) BrightView Diagonal Size 14.1 in (35.7 cm) Surface Treatment BrightView Number of Colors Up to 16M Contrast Ratio...
  • Page 22 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 23 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications 160 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 24 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications 320 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 25 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications 160 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 26 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications DVD-ROM Drive Access Times Random <116 ms CD (typical) <125 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X-DVD Up to 10,800 KB/s Transfer Mode UDMA Mode 5...
  • Page 27 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <175 ms CD (typical) LightScribe Drive <230 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s...
  • Page 28 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications Hardware Implementation ADI1981HD High Definition CODEC Touch-Sensitive Volume Volume up, volume down, and mute Controls Full Duplex Microphone In Stereo Headphone/Line Out Stereo Integrated Microphone Yes, dual-microphone array when equipped with optional webcam...
  • Page 29 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications NIC Device Driver Name Broadcom NetLink Gigabit Ethernet V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...

  • Page 30: Configuration Utilities

    QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications HP un2400 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), 850MHz (UTRA FDD Band V)
  • Page 31 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications * The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.

  • Page 32: Configuration Utility

    QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications 802.11 b – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment 802.11 g – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment...
  • Page 33 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,...
  • Page 34 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager Broadcom IHV extensions for Windows Vista available to support Cisco Compatible Extensions.
  • Page 35 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points...
  • Page 36 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications Compatible Extensions. LED Activity LED Off – Radio OFF; Solid LED On – Radio ON Check latest software/driver release for updates on supported security features. Maximum output power may vary by country according to local regulations.
  • Page 37 QuickSpecs HP Compaq 6530b Notebook PC Technical Specifications Temperature Operating –4° to 158° F (–20° to 70° C) Non-operating –40° to 176° F (–40° to 80° C) Humidity Operating 10% to 90% Non-operating 5% to 95% Altitude Operating 15,000 ft (4,572 m)

  • Page 38: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 39 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
  • Page 40 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
