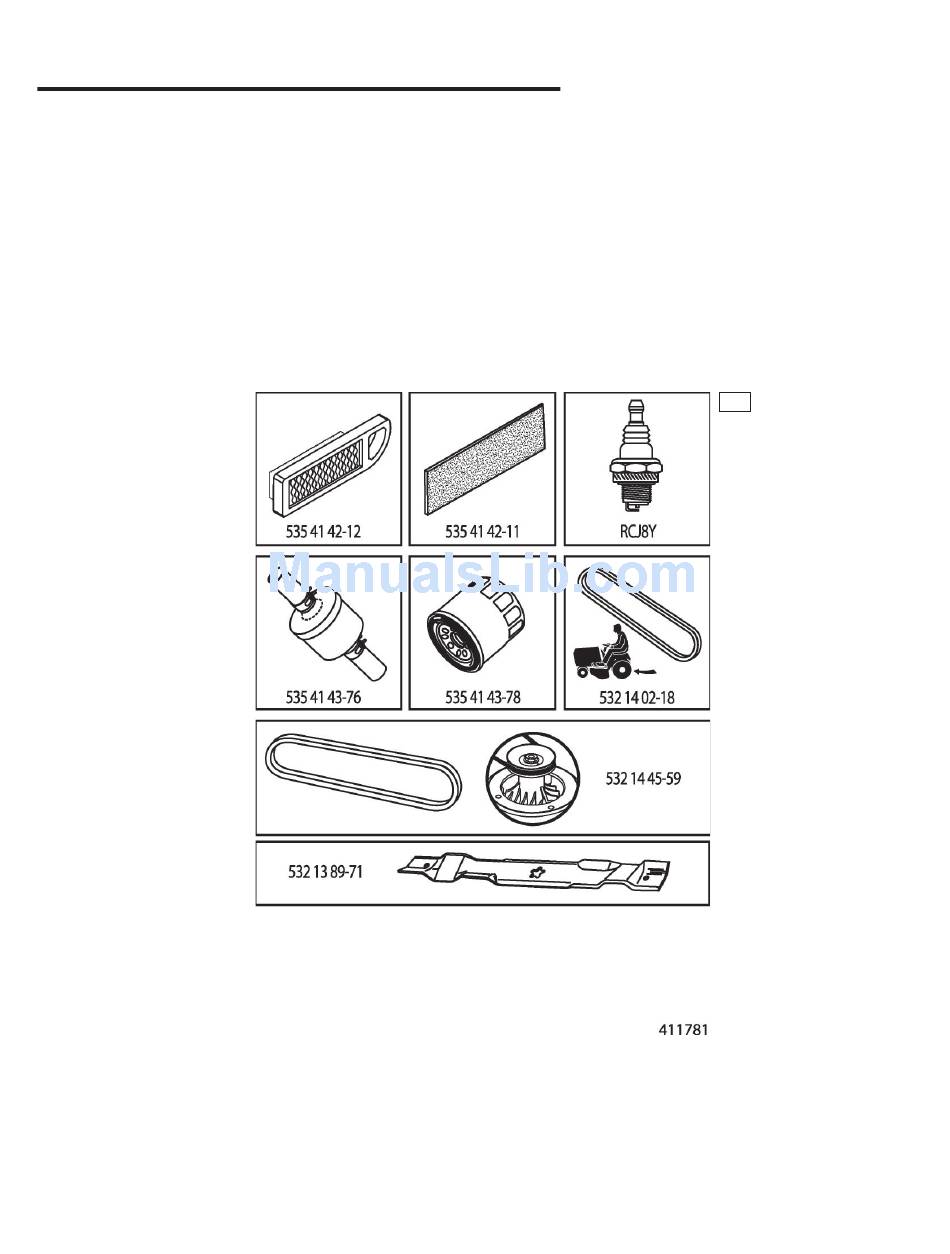

- Page 1 ILLUSTRATED PARTS LIST MFG. ID NO. 96041002501 CUSTOMER CATALOG NO. YTH180 TWIN PRODUCT NO. 960 41 00-25 532 41 17-59...
-
Page 2: Wheels And Tires
TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 DECALS PART PART DESCRIPTION DESCRIPTION 532 40 86-00 Decal, Panel Side 581 57 91-01 Decal, Cutfinger Warning 581 57 92-01 Decal, Warning Symbol 532 40 28-32 Decal, Hood Logo 532 41 17-81 Decal, Replacement 532 14 08-37 Decal, Brake Parking 532 16 69-60 Decal, Bypass... - Page 3 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 SCHEMATIC 38 SCH12 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) ELECTRIC CLUTCH WHITE PTO SWITCH BLACK WHITE (DISENGAGED) WHITE BLACK GRAY CLUTCH/BRAKE (PEDAL UP) REVERSE SWITCH (NOT IN REVERSE) BLACK BLACK BLACK...
- Page 4 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 ELECTRICAL T09S With 12V Outlet Option With Charge Indicator Option With Service Minder Option...
- Page 5 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 ELECTRICAL PART DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 532 18 64-91 Battery Box 532 17 61-38 Switch Interlock 532 18 37-59 Harness Socket Light 532 00 41-52 Bulb, Light # 1156 532 40 02-53 Cable Battery 532 19 88-93 Cable Starter...
- Page 6 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 CHASSIS chassis-tex_TEX GT HUSQ_103...
- Page 7 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 CHASSIS PART PART DESCRIPTION DESCRIPTION 581 05 63-01 Logo 532 19 82-59 Plate Deck Lift 532 44 84-43 Dash 532 40 30-48 Vent Side Hood RH 532 41 10-46 Hood 532 40 30-76 Vent Side Hood LH 532 19 89-07 Lens LH 532 41 66-13 Vent Hood Top...
- Page 8 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 DRIVE 37 183 drive-tex_HYDROGR_fender_16...
- Page 9 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 DRIVE PART PART DESCRIPTION DESCRIPTION Transaxle, Hydro 354-0510 532 41 34-30 Keeper Belt Centerspan – – – – – – – – (400505)(Order Parts from 532 13 70-57 Spacer Split Transaxle Manufacturer.) 532 44 14-55...
- Page 10 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 ENGINE SPARK ARRESTER KIT engine-tex_Kawa-2cyl_20...
- Page 11 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 ENGINE PART DESCRIPTION Engine Kawa Model No. FH531V- – – – – – – – – AS10 (184344)(Order part from Engine Manufacturer.) 532 14 97-23 Muffler 532 19 43-19 Keeper Belt Engine 532 18 05-05 Clutch Electric 532 19 43-38 Pulley Engine 532 19 34-99 Tank Fuel 4.0...
-
Page 12: Steering Assembly
TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 STEERING ASSEMBLY steering-tex_HUSQHR_5... - Page 13 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 STEERING ASSEMBLY PART DESCRIPTION 532 19 36-51 Wheel, Steering 532 19 59-68 Axle Asm., Front 532 40 30-87 Spindle Asm., LH 532 40 30-88 Spindle Asm., RH 532 12 49-31 Bearing, Race Thrust Harden 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
-
Page 14: Mower Deck
TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 MOWER DECK 42_D_elec-Tex_30... - Page 15 TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 MOWER DECK PART PART DESCRIPTION DESCRIPTION 532 19 64-95 Mower Deck Assembly, 42" 817 00 06-16 Screw 3/8-16 x 1 532 19 51-86 Arm Susp. Rear 532 14 10-43 Guard TUV Idler 532 19 30-03 Bolt/Washer Asm 7/16-20 unf 872 11 06-16 Bolt Rdhd Sqnk 3/8-16 unc x 2 (The following Blades are available)
-
Page 16: Mower Lift
TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 MOWER LIFT lift-tex_29 *Key 91 may be substituted for Key 101 PART PART DESCRIPTION DESCRIPTION 532 42 20-27 Shaft Asm., Lift 817 06 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z 532 19 52-30 Lever Asm., Lift Rh 532 19 52-70 Link Lift Susp. -
Page 17: Seat Assembly
TRACTOR - MODEL NO. YTH180 TWIN (96041002501), PRODUCT NO. 960 41 00-25 SEAT ASSEMBLY seat-tex_6.5SL_1_r1 PART PART DESCRIPTION DESCRIPTION 532 40 66-21 Seat 532 19 76-61 Handle Slide Seat 532 18 01-66 Bracket Pivot Fender 532 19 82-00 Spring Latch Seat 874 76 06-12 Bolt 3/8-16 x 3/4 532 14 06-75 Strap, Asm Fender 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga. - Page 18 12.19.13 BD...
