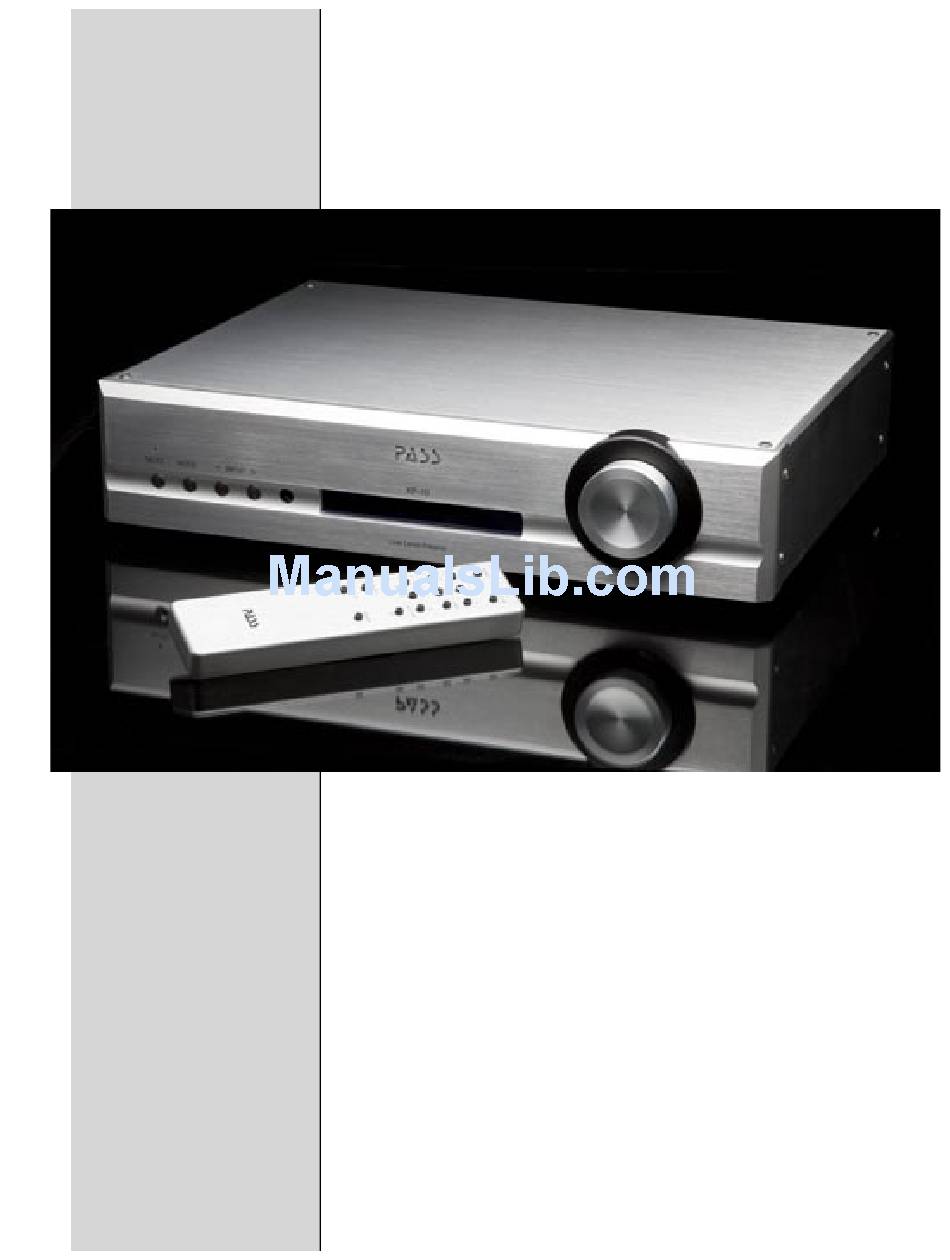

- Page 1 XP-10 Owner’s Manual Dec 4, 2009 XP-10 Owner’s Manual...
- Page 2 Introduction The XP-10 is an ultra high quality line-stage audio preamplifier featuring remote control and internal power supply. The XP-10 minimizes the number of components in the signal path, and yet retains exemplary objective performance specifications. It pushes the edge of the art by exploring how much subjective quality is obtainable with unique circuit elements applied in innovative ways.
- Page 3 Pass Laboratories has redesigned the remote control to allow direct access to the most frequently wanted control functions, thus simplifying and enhancing product operation. The new remote control codes have been carefully selected to minimize the impact on other remote controlled electronic devices, allowing for more carefree product placement.
- Page 4 220 volts, 120 volts, or 100 volts. A 0.5 amp 3AG slow blow fuse is provided with 100-120 volt units, and a 0.25 amp slow blow fuse is provided with 220-240 volt units. The input frequency rating of the power supply is 50 to 60 Hz. The preamplifier typically draws XP-10 Owner’s Manual...
-
Page 5: Description Of Operation
Pass Labs product. The left most button on the front panel is Mute. Pressing this button toggles between mute on and mute off. Mute on removes signal from the output of the preamp. XP-10 Owner’s Manual... - Page 6 When the right-front and left-front outputs of the processor are routed through input 5 of the XP-10 (with the gain of the XP-10 set for Unity), the volume will be under full control of the processor and the XP-10’s action will be totally transparent.
- Page 7 Where applicable the remote mirrors the front panel controls. Power, tape and ext. amp on (external amplifier turn-on) have no reality with the XP-10. these specific control functions have no effect on this product. MUTE: pressing mute once will quiet the pre-amplifier outputs,...
- Page 8 Muting relays, which delay connection during turn-on and shut off the output when insufficient power supply is available to maintain regulation, guard the output of the preamplifier and offer protection to the power-amplifier and loudspeakers. The XP-10 consists of a single chassis. XP-10 Owner’s Manual...
- Page 9 For more information please contact: Pass Laboratories Inc. P.O. Box 219, 24449 Foresthill Rd., Foresthill, CA 95631 Tel: 530.367.3690 Fax: 530.369.2193 www.passlabs.com © 2008 Pass Laboratories Inc. XP-10 Owner’s Manual...
- Page 10 “Pass”, “pass”, “Pass Labs”, “Pass Laboratories”, Supersymmetery”, “Aleph”, and “Zen” and are all registered trademarks of Pass Laboratories, Inc., and all rights thereto are protected by law. XP-10 Owner’s Manual...
-
Page 11: Warranty Information
Product with altered or missing serial numbers will be suspected as counterfeit product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for inter- national markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada. - Page 12 Power Cords: Pass Laboratories provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an after-market product we urge you to choose one that is fully safety rated by the necessary local authority.
