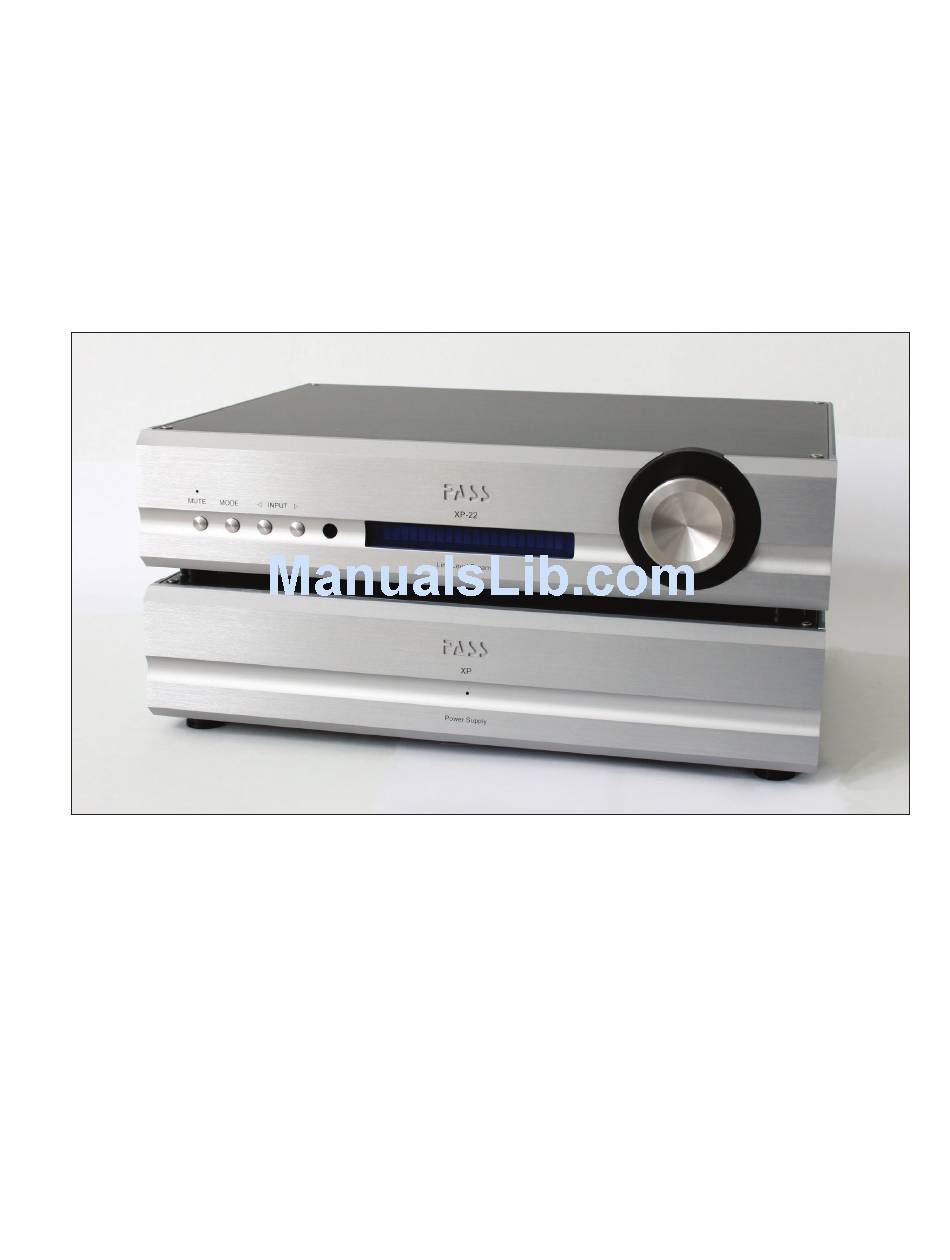

- Page 1 PASS XP-22 Owner’s Manual XP-22_om_prelim...
- Page 2 Power Cords: Pass Laboratories provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an after- market product we urge you to choose one that is fully safety rated by the necessary local authority.
- Page 3 Introduction: At Pass Labs we don’t change our products unless we feel that the changes are significant improvements over previous versions. Because of this we see typical product life spans of seven to eight years. We are constantly working on and listening to new things and increasing our knowledge of circuits and components on sound.
- Page 4 Setup: Please read and understand the operational instructions and safety issues associated with this product. We go through great effort to make a soundly engineered, and supurbly performing product of lasting duribility. We understand that things infrequently go wrong, if you have any questions or problems please contact either your dealer or the factory, we are here to support the product and you, the user.
- Page 5 a similar fashion balanced XLR inputs and outputs are marked with “L” for left and “R” for right channel. The main outputs are located at the left-hand side (viewed from the rear) of the rear panel, two male XLR connectors, and two RCA connectors, “R”...
- Page 6 1 dB. The remote control uses multi-button direct access architecture. This remote is designed to operate several pieces of Pass Labs electronics, not all of the functions available on this remote will be applicable to your Pass Laboratories XP-22. XP-22_om_prelim...
- Page 7 The Remote control operation is, or should be very intuitive in operation; we have attempted to make its operation as familiar as possible. Where applicable the remote mirrors the front panel controls. Power, tape and ext. amp on (external amplifier turn-on) are not used with the XP-22.
- Page 8 With balanced operation, the common mode rejection of the preamp reflects the intrinsic common mode rejection of the topology, the matching of the gain devices, and the matching of the attenuator channels. In this case we have been able to keep the total mismatch to about .1%, for a common mode rejection of approximately -60 dB.
- Page 9 All Pass Laboratories products purchased new from an authorized Pass Laboratories dealer in North America are covered by a transferable, limited 3-year warranty. This warranty includes all parts...
- Page 10 “Aleph”, and “Zen” and are all registered trademarks of Pass Laboratories, Inc., and all rights thereto are protected by law. PASS ® Pass Laboratories Inc., 13395 New Airport Rd., Suite G, Auburn, CA 95602 voice: 530.878.5350 fax: 530.878.5358 web: passlabs.com...
