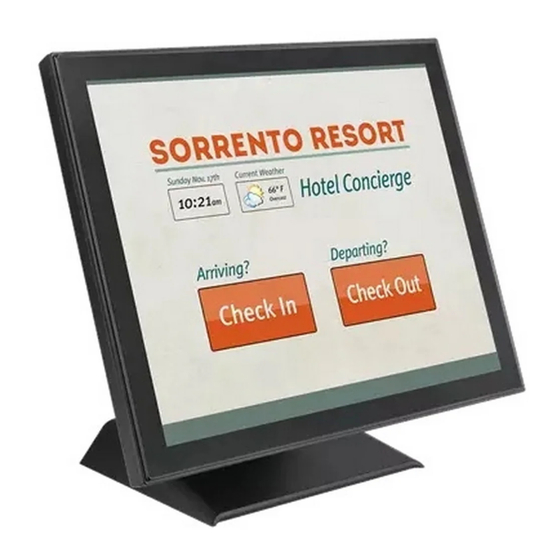

- Page 1 PT1745R / PT1745S / PT1745P Touch Screen Monitor USER’S GUIDE www.planar.com...
-
Page 2: Important Recycle Instructions
Recycle or dispose in accordance with local, state, or federal laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specifi c disposal information check WWW.LAMPRECYCLE.ORG. For more information on how to recycle your product, please visit WWW.PLANAR.COM/GREEN. -
Page 3: Table Of Contents
Precautions ..........................1 Introduction About PT1745R/PT1745S/PT1745P ..................2 Touch Screen for PT1745R ....................3 Touch Screen for PT1745S ....................3 Touch Screen for PT1745P ....................3 Package Overview ......................... 4 Installation Product Overview ........................5 Front View .......................... 5 PT1745R/PT1745S Bottom View (Without Stand) ............ -
Page 4: Usage Notice
Usage Notice Warning - To prevent the risk of fi re or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: Introduction
Introduction About PT1745R/PT1745S/PT1745P The PT1745R/PT1745S/PT1745P is a 17" fl at panel screen with an active matrix, thin-fi lm transistor (TFT) liquid crystal display (LCD). This unit is to be used as commercial and light industrial equipment only. Features include: • Direct Analog signal input •... -
Page 6: Touch Screen For Pt1745R
• Transmittance: 92±5% • Driver: Windows® 7/8, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux kernel 2.6.x(32 bit & 64 bit), Apple® Mac OS PT1745P Touch Screen for • Projected Capactive touch screen for fi nger input only •... -
Page 7: Package Overview
Package Overview Display VGA Signal Cable Power Cord Audio-in Cable USB Cable ( A to B) RS-232 Cable (PT1745R/PT1745S only) Cable Cover Screw Landing Strip User’s Guide... -
Page 8: Installation
Installation Product Overview • Front View Standard Bezel Free • PT1745R/PT1745S Bottom View (Without Stand) AUDIO AC IN RS-232 POWER SWITCH • PT1745P Bottom View (Without Stand) AC IN AUDIO POWER SWITCH... -
Page 9: Start Your Installation
Start Your Installation Please follow these instructions so that you can hookup the cables to associated connector. 1. Lay the display fl at on an even surface. 2. Move the stand into position as seen in the step 2 diagram. 3. -
Page 10: Connecting The Display (Figure 8.1)
Connecting the Display (Figure 8.1) To setup this display, please refer to the following fi gure and procedures. 1. Be sure all equipment is turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (8.1). -
Page 11: (Figure 8.1)
(Figure 8.1) PT1745R/PT1745S PT1745P... -
Page 12: Kensington Security Slot
Kensington Security Slot The monitor can be secured to your desk or any other fi xed object with Kensington lock security products. The Kensington lock is not included. -
Page 13: Vesa Mount Your Monitor
VESA Mount Your Monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defi nes a physical mounting interface for fl at panel monitors, and corresponding with the standards of fl at panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor. -
Page 14: Remove The Deskstand
Remove the Deskstand Remove 4 screws and then remove hinge. -
Page 15: User Controls
User Controls Side Panel Controls Icon key Name Menu Down Enter Power Menu off status Menu on status Menu appear Menu disappear/ return to main item Brightness Main item select up/ Adjust up Mute Main item select down/ Adjust down Enter/Select sub-item function Power On/Off... -
Page 16: How To Use The Osd Menus
How to Use the OSD Menus Icon Key Name Menu Down Enter Power 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the six functions in the main menu. 2. -
Page 17: On-Screen Display Menus
On-Screen Display Menus Main OSD Menu: ITEM CONTENT The monitor luminance level control. Contrast The monitor backlight level control. Brightness Fine-tune the image to full screen automatically. Auto Adjust Moving screen image horizontal position to left or right. Left/Right Moving screen image vertical position to up or down. Up/Down The screen image horizontal dot clock adjustment. -
Page 18: Appendix
Appendix Troubleshooting If you are experiencing trouble with the display, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected described in the "Installation"... -
Page 19: Warning Signal
Below are the three kinds of Warning Signal. Please check the cable connections or contact your local dealer or Planar for more information. No Signal This message means that the display has been powered on but it cannot receive any signal from the computer graphics card. -
Page 20: Product Dimensions
Product Dimensions PT1745R/PT1745S 386.8 mm ► Front View ► Side View 67.0 mm 222.5 mm ► Top View... -
Page 21: Pt1745P
PT1745P ► Front View ► Side View ► Top View... -
Page 22: Compatibility Modes
Compatibility Modes Mode Resolution H-Frequency (KHz) V-Frequency (Hz) IBM VGA 720 x 400 31.47 IBM VGA 640 x 480 31.47 VESA VGA 640 x 480 37.86 VESA VGA 640 x 480 37.50 VESA SVGA 800 x 600 35.16 VESA SVGA 800 x 600 37.88 VESA SVGA... -
Page 23: Touch Screen Driver Installation
See “Optional Calibration Tool Install” section for more information. 2. For PT1745P, the system requires 15 seconds for Windows 7 to install/uninstall the touch drivers while turning power on/off or plugging/unplugging USB cable. PT1745R/PT1745S Optional Calibration Tool Install: If you would like to use the Optional Calibration Tool, follow the instructions below. -
Page 24: Pt1745P Optional Calibration Tool Install
PT1745P Optional Calibration Tool Install: Calibrating the touch screen in Windows 7/8: 1. Tap the Start button, Control Panel and then Hardware and Sound. 2. Under Tablet PC Settings, tap Calibrate the screen for pen or touch input. 3. On the Display tab, under Display options, tap Calibrate and then Yes to allow the program to make changes. -
Page 26: Pt1745R/Pt1745S Install Instructions
3. Be sure that your EWF is disabled. If your EWF is enabled, please disable the EWF by using the EWF Manager command. 4. Once the EWF is disabled click on the XP driver at www.planar.com/support. and follow the step-by-step instructions as shown on the pop-up windows. - Page 27 When changing the Touch Interface (RS-232 or USB), please follow instructions below. 1. Uninstall the touch driver. 2. Re-start the computer. 3. Remove the original Touch Interface (RS-232 or USB). 4. Connect the computer to the Touch Interface (RS-232 or USB) that you would like to use. 5.
-
Page 28: Pt1745P Driver Install Instructions
3. Be sure that your EWF is disabled. If your EWF is enabled, please disable the EWF by using the EWF Manager command. 4. Once the EWF is disabled click on the XP driver at www.planar.com/support. and follow the step-by-step instructions as shown on the pop-up windows. -
Page 29: Technical Support
Technical Support Cables and Accessories To fi nd cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com. Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touch screen drivers, warranty information and access to Planar’s Technical Library for online troubleshooting. - Page 30 Tel: 1-866-PLANAR1 (866-752-6271) or +1 503-748-5799 outside the United States. Hours: 24 hours a day, 7 days a week © 2013 Planar Systems, Inc. 10/13 Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners.
