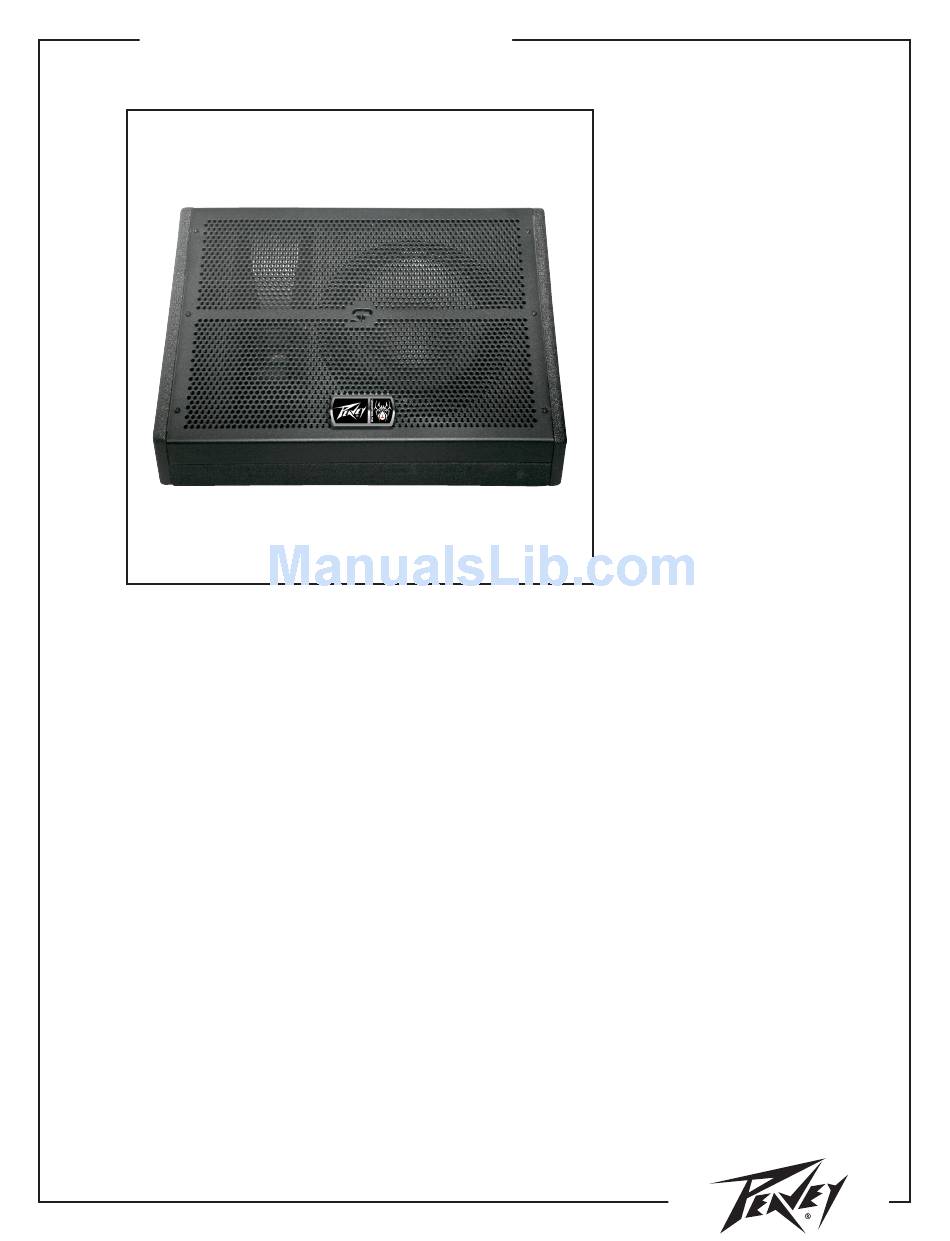

Peavey SP 15M Specifications

Two-way floor monitor speaker system
Hide thumbs

1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

SPECIFICATIONS

Frequency Response, 1 Meter
On-Axis, Swept-Sine in Anechoic
Environment:
90 Hz to 14 kHz (±3 dB)
Usable Low Frequency Limit
(-10 dB point):
67 Hz
Power Handling:
500 watts continuous
1,000 watts program
2,000 watts peak
Sound Pressure Level, 1 watt, 1 meter
in Anechoic Environment:
99.0 dB (2.83 V input)
Maximum Sound Pressure Level
(1 meter):
126.0 dB SPL continuous
132.0 dB SPL peak
Radiation Angle Measured at -6 dB
Point of Polar Response:
40° horizontal by 90° vertical
Transducer Complement:
Low frequency section:
One 15" woofer
1508-8 HE SF BWX
High frequency section:
SP
15M
™
One .875" exit/51 mm voice coil
Rx™22 compression driver on a
CD horn
Box Tuning Frequency:
Low frequency section: 94 Hz
Crossover Frequency (internal
passive):
Low frequency - high frequency:
1,600 Hz
Impedance (Z):
Full range:
Nominal:
8.0 Ω
Minimum:
6.3 Ω
Input Connections:
Full range: Two 1/4" phone jacks
and a four-pin twist lock connector
Enclosure Materials & Finish:
Hardwood panel coated with
Peavey's HammerHead™ polyurea
finish.
Mounting Provisions:
This unit is not designed for
overhead suspension.
Metal stand mount adapter
incorporated and eight rubber feet
on two sides for dual-angle use.
Dimensions (H x W x D):
45° baffle orientation:
17.13" x 26.13" x 19.88"
435 mm x 664 mm x 505 mm
30° baffle orientation:
16.88" x 26.13" x 18.88"
429 mm x 664 mm x 480 mm
Net Weight:
56 lbs. (25.4 kg)
Features
• Two-way, full-range floor monitor
• 1,000 watts program 2,000 watts
peak
• 15" BWX Black Widow
®
Woofer,
4" VC, field-replaceable basket
• Rx™22 compression driver with
ferrofluid cooling
• Sound Guard™ III tweeter
protection
• Hardwood panel coated with
Peavey's HammerHead™
polyurea finish
• Dual baffle angles of 45° or 30°
• Two 1/4" full-range phone-jack
inputs in parallel with a four-pin
twist lock connector
• Perforated metal grille
• Stand-mount adapter
Description

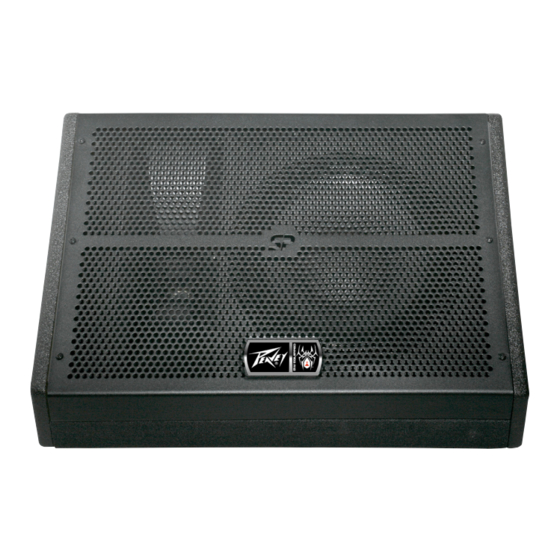

The new SP
™
15M is a two-way
floor monitor speaker system
comprised of a 15" Black
®
Widow
SF woofer with a
®
Kevlar
impregnated cone
and an enclosure
, made from a
hardwood panel and coated with
Peavey's heavy-duty polyurea
finish for increased durability
A full length
and ruggedness.
wrap-around perforated steel
grille protects the front of the
enclosure. An metal stand mount
adaptor is built in for side-fill or
PA use.
The low frequencies are
provided by the 15" Black Widow
BWX woofer with a Kevlar
impregnated cone and dust
cap. Capable of over 500 Watts
of continuous power handling
(AES Std 2-1984), the woofer
can handle a lot of power,
®
