S500 Series Passive
Loudspeakers

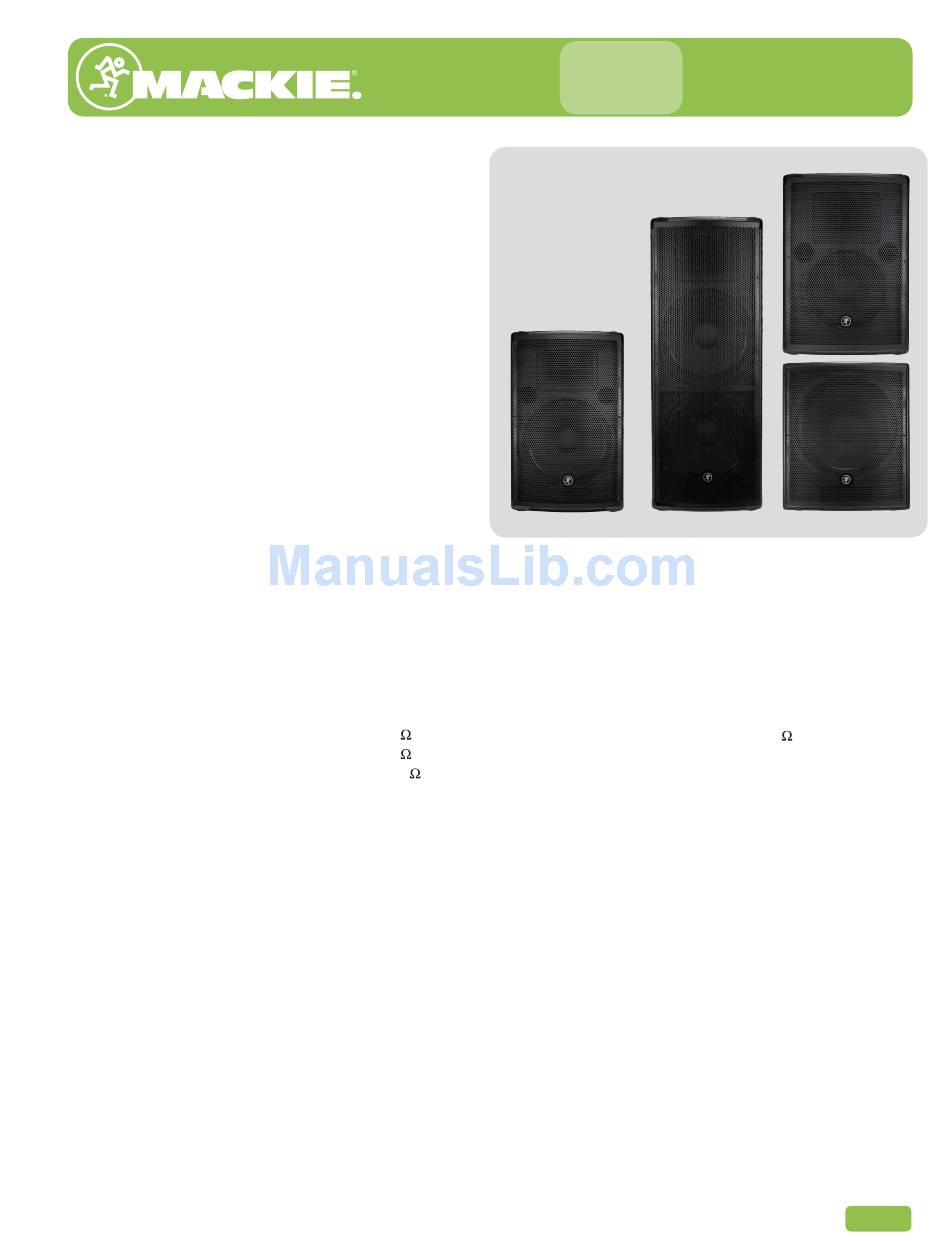

S500 Series Passive Loudspeakers are the perfect voice
for your passive system, with proven performance that is
as professional as it is affordable. They feature high-output
transducers that sound great and the full-range boxes
deliver ultra-wide 90˚ x 50˚ dispersion.
Road ready, the rugged, PVC vinyl-covered wood
enclosures also include protective edge bumpers,
keeping your investment safe during transport.
S500 speakers are the perfect complement to Mackie's
PPM Series Powered Mixers. Or integrate them with
Mackie FRS Series Power Amplifiers and an SP260
Speaker Processor for a completely optimized passive
system with the flexibility and performance you need.
Four models available:
S512 – 12" 2-way loudspeaker
S515 – 15" 2-way loudspeaker
S525 – Dual 15" 2-way loudspeaker
S518S – 18" subwoofer

S500 FULL-RANGE MODELS FEATURES:

Class-leading power handling for professional shows
• S512 – 500W program / 1000W peak at 8
• S515 – 600W program / 1200W peak at 8
• S525 – 1200W program / 2400W peak at 8
Precision, high-output transducers:
• S512 – 12" woofer / 1" HF driver
• S515 – 15" woofer / 1" HF driver
• S525 – Dual 15" woofers / 1" HF driver
Rugged, professional PVC vinyl covered wood
enclosures with protective edge bumpers
Wide-dispersion 90˚ x 50˚ high-frequency horn
for maximum audience coverage
HF protection circuitry reduces high-frequency
output to protect against driver damage
NL4 and 1/4" input and thru connections for
connecting multiple units on a single amp channel
Stand / Pole-mountable [S512 and S515]
S512 / S515
S525 / S518S

S518S SUBWOOFER FEATURES:

Class-leading power handling
• 900W program / 1800W peak at 8
18" high-output woofer
Rugged, professional wood enclosure with
high-durability, textured paint
Integrated low-pass filter focuses power to low
frequencies for maximum punch
NL4 and 1/4" input and thru connections for
connecting multiple units on a single amp channel
Pole receptacle for mounting full-range loudspeaker
S500 Series
Passive Loudspeakers
1/6 PAGES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S512 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mackie S512

  • Page 1 Class-leading power handling for professional shows ■ Class-leading power handling ■ • S512 – 500W program / 1000W peak at 8 • 900W program / 1800W peak at 8 • S515 – 600W program / 1200W peak at 8 18" high-output woofer ■...
  • Page 2 Depth: 15.6 in / 396 mm Weight: 49 lb / 22 kg Weight: 51 lb / 23 kg Ordering Information Ordering Information S512 12" 2-Way Passive SR Loudspeaker: P/N 2038505-00 S515 15" 2-Way Passive SR Loudspeaker: P/N 2038507-00 2/6 PAGES...
  • Page 3 S512 / S515 S500 Series Passive Loudspeakers S525 / S518S S525 TECHNICAL SPECIFICATIONS S518S TECHNICAL SPECIFICATIONS System System Type: Two-way, full-range loudspeaker Type: Subwoofer Frequency Range (-10 dB): 51 Hz - 18 kHz Frequency Range (-10 dB): 37 Hz - 220 Hz Horizontal Coverage Angle: 90˚...
  • Page 4 S512 / S515 S500 Series Passive Loudspeakers S525 / S518S S512 DIMENSIONS 17.8 [452] 15.6 25.6 [396] [650] 13.8 [351] UNLESS OTHERWISE SPECIFIED: S512 NOTES: THIRD ANGLE PROJECTION ALL DIMENSIONS ARE IN INCHES DUAL [MM] DIMENSIONS 1. WEIGHT APPROX. 49 lb [22 kg].
  • Page 5 S512 / S515 S500 Series Passive Loudspeakers S525 / S518S S525 DIMENSIONS 16.8 [427] 15.6 [396] 43.9 13.3 [1115] [338] S525 NOTES: 1. WEIGHT APPROX. 75 lb [34 kg]. 2. SHIPPING WEIGHT APPROX. 79 lb [35.8 kg]. S515 NOTES: 1. WEIGHT APPROX. 70 lb [32 kg].
  • Page 6 Owner’s Manual S500_Series_Loudspeakers_OM.PDF “Mackie” and the “Running Man” figure are registered trademarks of LOUD Technologies Inc. All other brands mentioned are trademarks or registered trademarks of their respective holders, and are hereby acknowledged.
