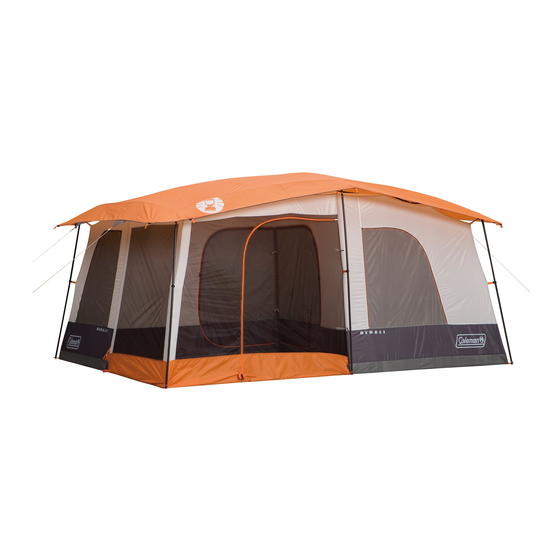

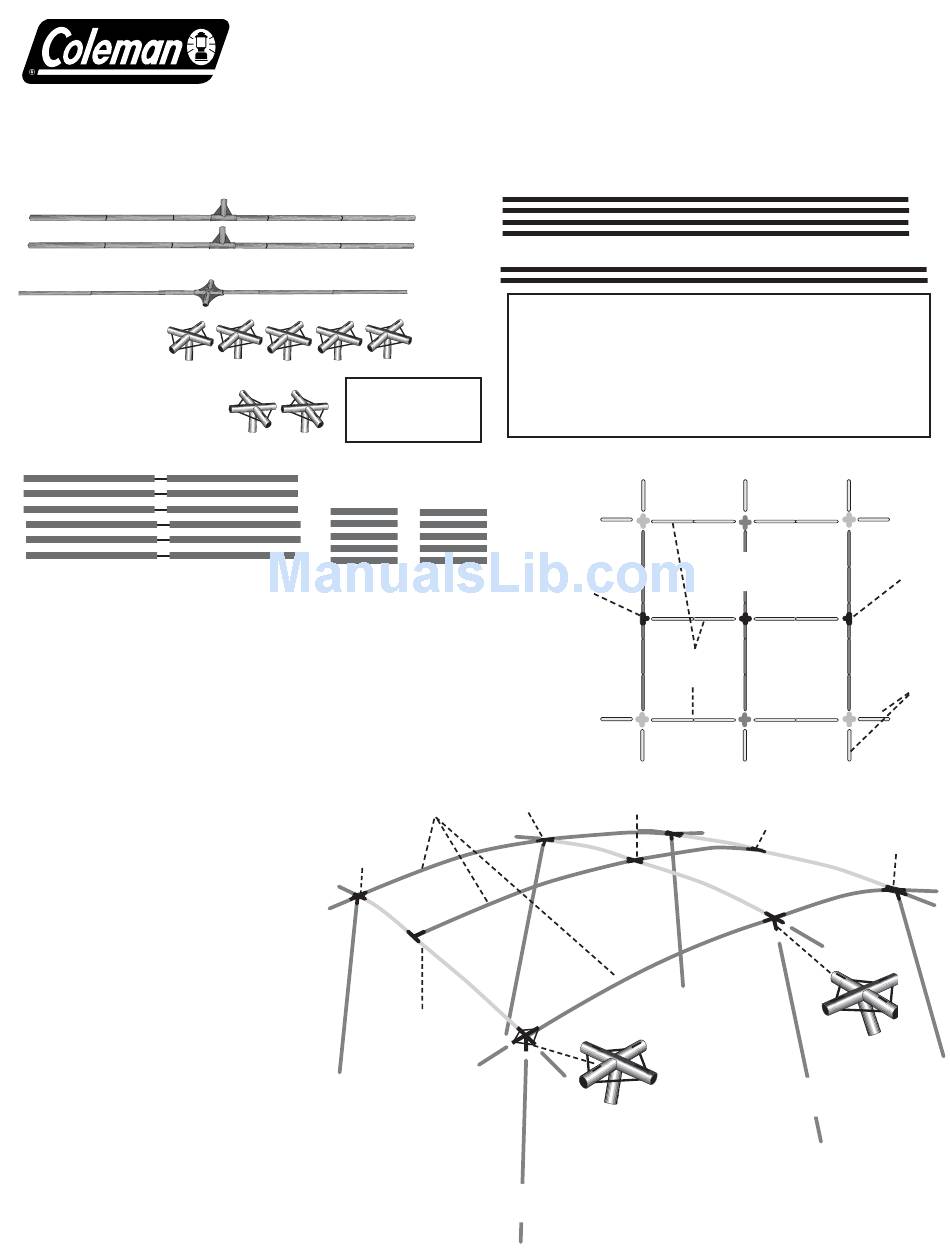

Coleman Denali 9230-410 Instructions

(2) Side Poles w/ 3-way hub Part No. 9230-3711
(1) Ridge Pole w/ 4-way hub Part No. 9230-3751
(4) 5-way Corner
Hubs (A)
Part No. 9230-3791
(4) 5-way Corner Hubs (B)
Part No. 9230-3791
(6) 2-Section Poles Part No. 9230-3771 (10) 1-Section Poles

1 Frame Assembly

– Position the two 5-section 3-way hub Side Poles
approximately 10' apart. (illus. 1)
– Place the 5-section 4 way hub Ridge Pole between
and parallel to the two Side Poles. (illus. 1)
– Attach the four 5-way Corner Hub (A)s to the ends of
the outside side poles. (illus. 1), (illus. 2)
– Attach the two 5-way Hub (B)
to the ends of the middle
ridge pole. (illus. 1), (illus. 2)
– Connect the six 2-section roof
poles to the hubs to complete
the roof frame main section.
(illus. 1), (illus. 2)
– Attach the ten 1-section poles
to the open hub on each
corner and the center ridge
pole to fully complete the
roof frame assembly.
(illus. 1), (illus. 2)
– Attach the four corner upright
poles to the downward
hub at each corner. (illus. 2)
– Attach the two center
upright poles to the
downward hub on
the center ridge. (illus. 2)
™
Denali
Instructions apply to Part Number 9230-410
POLE ASSEMBLY PARTS
Rainfly Part No.
9230-3661
Part No. 9230-3691
2-SECTION
POLES
5-WAY
HUB (A)
SIDE POLE
w/ 3-WAY HUB
14'x10'
(4) Corner Upright Poles Part No. 9230-3671
(2) Center Upright Poles Part No. 9230-3811

When You Are Ready To Set Up Your Tent

– Select a level campsite clear of rocks, branches and
other hard or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions, position the end
of tent into the wind.
illus. 1 Roof Frame Assembly
SIDE POLE
w/ 3-WAY HUB
2-SECTION
5-WAY
RIDGE POLE
HUB (B)
w/ 4-WAY HUB
5-WAY CORNER
HUB (A)
illus. 2 Tent Frame Assembly
CORNER
POLE
RIDGE POLE
w/ 4-WAY HUB
POLES
SIDE POLE
w/ 3-WAY
5-WAY HUB (B)
CENTER
POLE
CORNER
HUB (A)
SIDE POLE
w/ 3-WAY HUB
1-SECTION
POLES
5-WAY
HUB (A)
