Coleman 10'x14' tent instruction manual

Advertisement

Quick Links

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.
1
Layout & Positioning of Tent
– Layout and position tent with door
facing desired direction. (illus. 1)
– Stake down tent, starting with the corners.
Do not stretch too tight. Angle the stakes
slightly toward the tent. (illus. 2)
Keep the floor taut.
– Stake down the remainder
of the stake loops.
– Unzip the door.
2
Assemble & Place Roof Poles
– Assemble all shock-corded
ridge poles. When assembled will
form a continuous arch with both
ends pointing down. (illus. 3)
– Insert ridge poles through
the four roof sleeves. (illus. 4)
Glacier Creek
Instructions apply to Part Number 9230-014

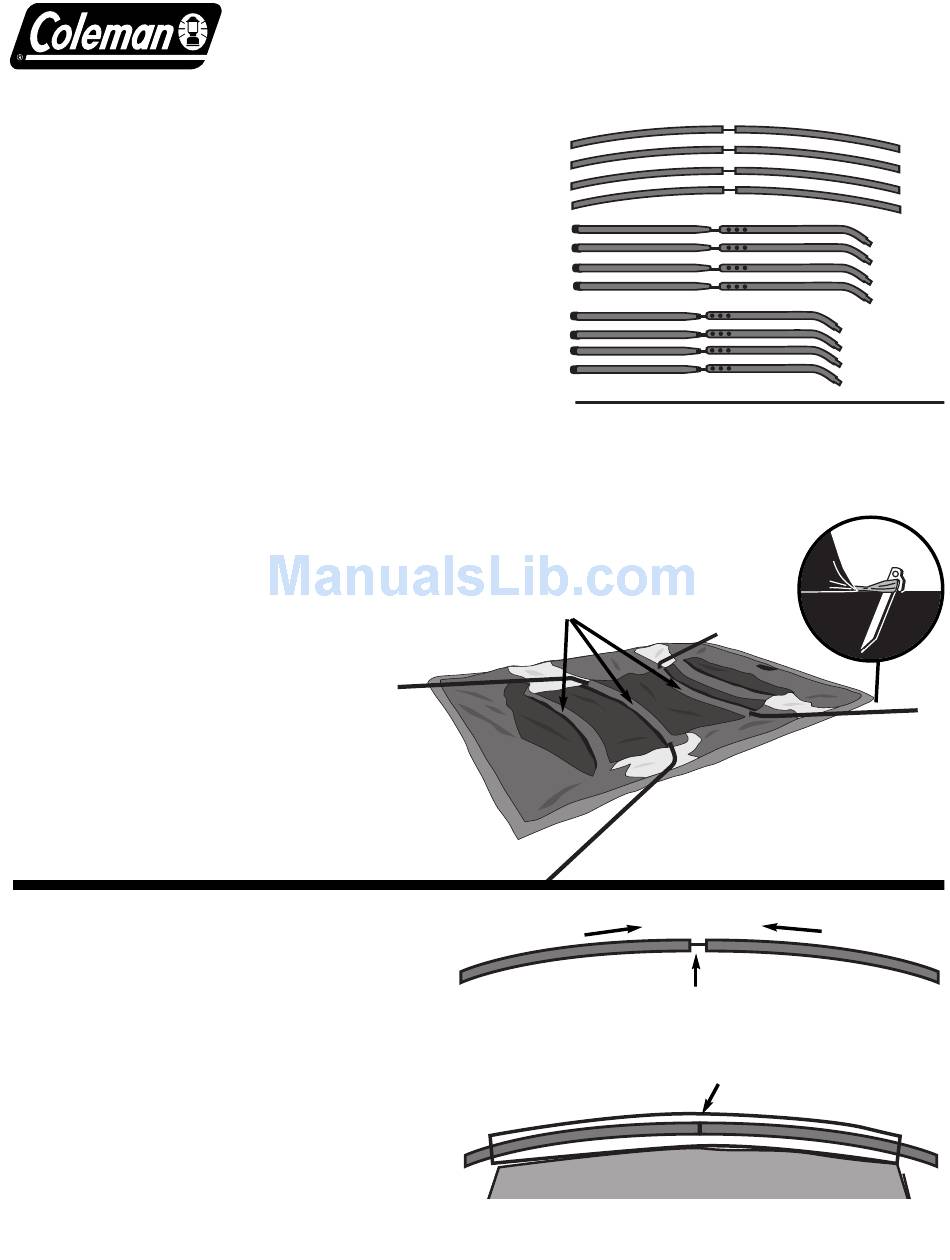

POLE ASSEMBLY PARTS
(4) Ridge Poles
Part No. 9230-1031
(4) Center Poles
Part No. 9230-1041
(4) Side Pole Part
No. 9230-1051
(1) Rainfly Pole
No. 9230-1061
Rainfly Part No.
illus. 1
9230-1071
Roof sleeve
Forms an arch
Shock-corded poles
illus. 3 Curved roof pole assembly.
Roof pole sleeve
illus. 4
Curved roof pole system shown
inserted through pole sleeve.
10'x14'
illus. 2
Stake loops
properly staked
Front of
screen
door
