Installation
Battery
Door
Phillips
Head
Screw
Installing or changing the battery -
To access the battery compartment
remove the small Phillips head
screw that secures the battery
door to the transmitter assembly.
Starting at one of the corners of
the door, pull upwards to remove
door. Replace with a CR2032 battery
when necessary. The battery should
be installed with the positive (+)
side up.
Buttons one (1) through (4) turn on
the fan and control the speed.
(1) Extra Low
(2) Low
(3) Medium
(4) High

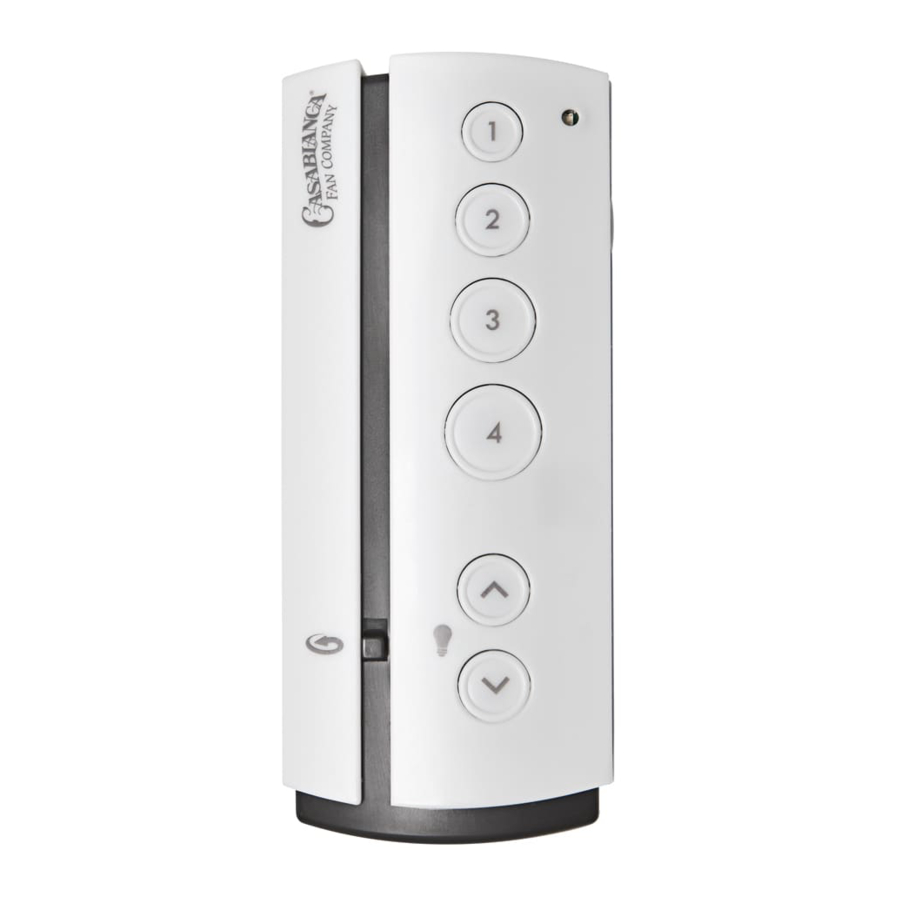

Remote Control
Transmitter
Model #99020
OFF
Before pairing your remote, the
power must be turned off at the
breaker box. Wait 5 seconds and
then turn the power back on.
Up
Arrow
Down
Arrow
The up arrow and down arrow
buttons control the lights on the fan.
Quickly press the up or down arrow
to turn the lights off and on. Hold
the up or down arrow to raise or dim
the light level.
M6008-01 • 06/26/12 • © Casablanca Fan Company
www.CasablancaFanCo.com
Read and Save These Instructions
Pairing
Fan
Power
4
Note: The remote must be paired
before the fan will operate.
Within 3 minutes of restoring
power to the fan, press both the
power button and the 4 button
for at least 3 seconds. The fan will
turn at the lowest speed signifying
that the remote pairing process is
complete. If using the transmitter
with multiple fans, repeat this
process for each fan.
Reverse
Switch
Move the reverse switch to opposite
position to change the direction of
airflow. The fan must be running to
use the reversing feature.
1.888.227.2178
Operations
LED
Light
Fan
Power
The power button found on the right
side of the transmitter turns the fan
off. The LED light will illuminate
when a button is pushed, letting you
know that the signal has been sent
to the fan.
Post
Your Universal Remote comes with
wall plates that have two (2) posts
on which to mount your transmitter
when not in use.
