W-505

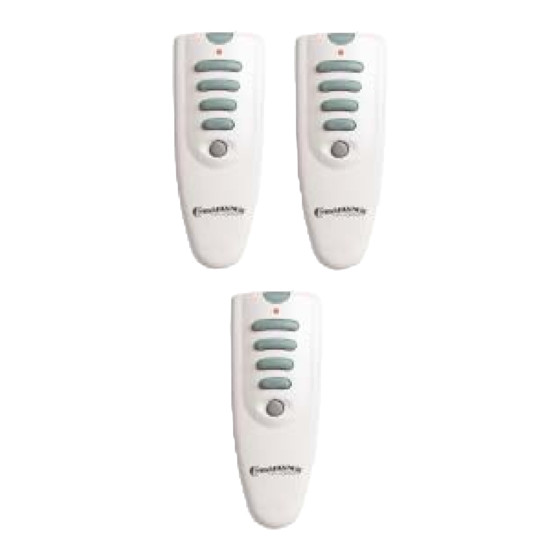

W-505™ Control includes all of the standard features, in a new design that is
compatible with a number of Casablanca fan Models . The W-505™ hand-held
remote provides three forward or reverse fan speeds, full spectrum light dimming
and has an optional wall bracket. The W-505™ may be used alone to control
several fans or with extra controls to operate a single fan from different locations.
W-505
CONTROL
(TRANSMITTER)
W-505™
CAUTION! Do not use with wall dimmer or rocker switch.
Rocker
Switch
NOTE: - If a ROCKER SWITCH is being use to con-
trol the fan location, it must be changed to a STAN-
DARD SWITCH as shown.
Casablanca Fan Co. - Factory Service Department - Technical Library
FILE NAME ( W505Operation.pmb) RAS 09-12-06
™
W-505™ INSTALLATION
W-505
CONTROL
HOLDER
CONTROL BRACKET INSTALLATION
Standard Switch
12V BATTERY
DRYWALL
ANCHOR
6-32 (2)
Standard Light Switch
Step A. Remove the two screws holding the switch cover
plate. Do not remove the cover plate.
Step B. Orient the control bracket as shown and line up
the two inner mounting holes with those on the switch.
Step C. Install and tighten screws by hand only.
1
W-505
(Transmitter)
SCREW
WOOD SCREW
6-32 X
1" (2)
SCREW
6-32 X 1"(2)
Wall Controls - CONTINUED
3
/
" (2)
8
Advertisement
Table of Contents
Related Manuals for Casablanca W-505
Summary of Contents for Casablanca W-505
- Page 1 ™ W-505™ Control includes all of the standard features, in a new design that is compatible with a number of Casablanca fan Models . The W-505™ hand-held remote provides three forward or reverse fan speeds, full spectrum light dimming and has an optional wall bracket. The W-505™ may be used alone to control several fans or with extra controls to operate a single fan from different locations.
- Page 2 (2) this device must accept any interference, including interference that may this equipment. cause undesired operation of the device. Wall Controls - CONTINUED Casablanca Fan Co. - Factory Service Department - Technical Library FILE NAME ( W505Operation.pmb) RAS 09-12-06...
- Page 3 LIGHT button. Release the but- ton when the desired level is reached. Casablanca Fan Co. - Factory Service Department - Technical Library FILE NAME ( W505Operation.pmb) RAS 09-12-06...
-
Page 4: Checking The Switch Settings
Step 3. Turn the power back on (at the circuit breaker) and push the HIGH, MED, and LOW buttons–in that order–within 20 seconds. Step 4. The fan should now function properly. Casablanca Fan Co. - Factory Service Department - Technical Library FILE NAME ( W505Operation.pmb) RAS 09-12-06... - Page 5 PROBLEMAN WILL NOT S TARTMin th t ordleb)to set the frlequncy ofrthe fFanto the co trl Before Requesting Service: Please follow this troubleshooting guide before contacting your dealer for assistance. Casablanca Fan Co. - Factory Service Department - Technical Library FILE NAME ( W505Operation.pmb) RAS 09-12-06...
