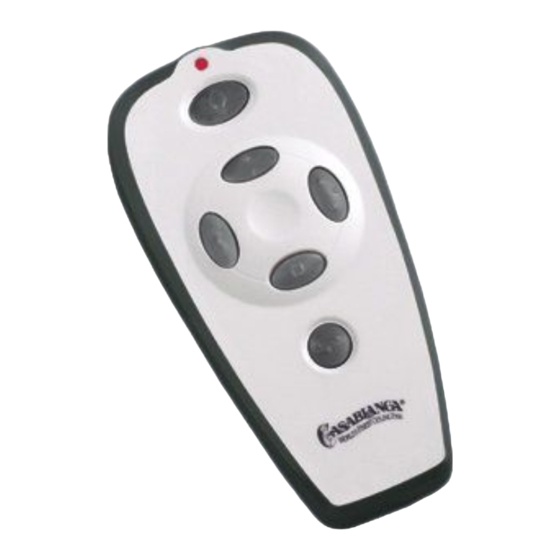

Casablanca Versa Touch 2 Quick Start Manual

Warning: To reduce the risk of electrical shock, this fan must be installed with an
isolating wall control/switch.
W-72
CONTROL

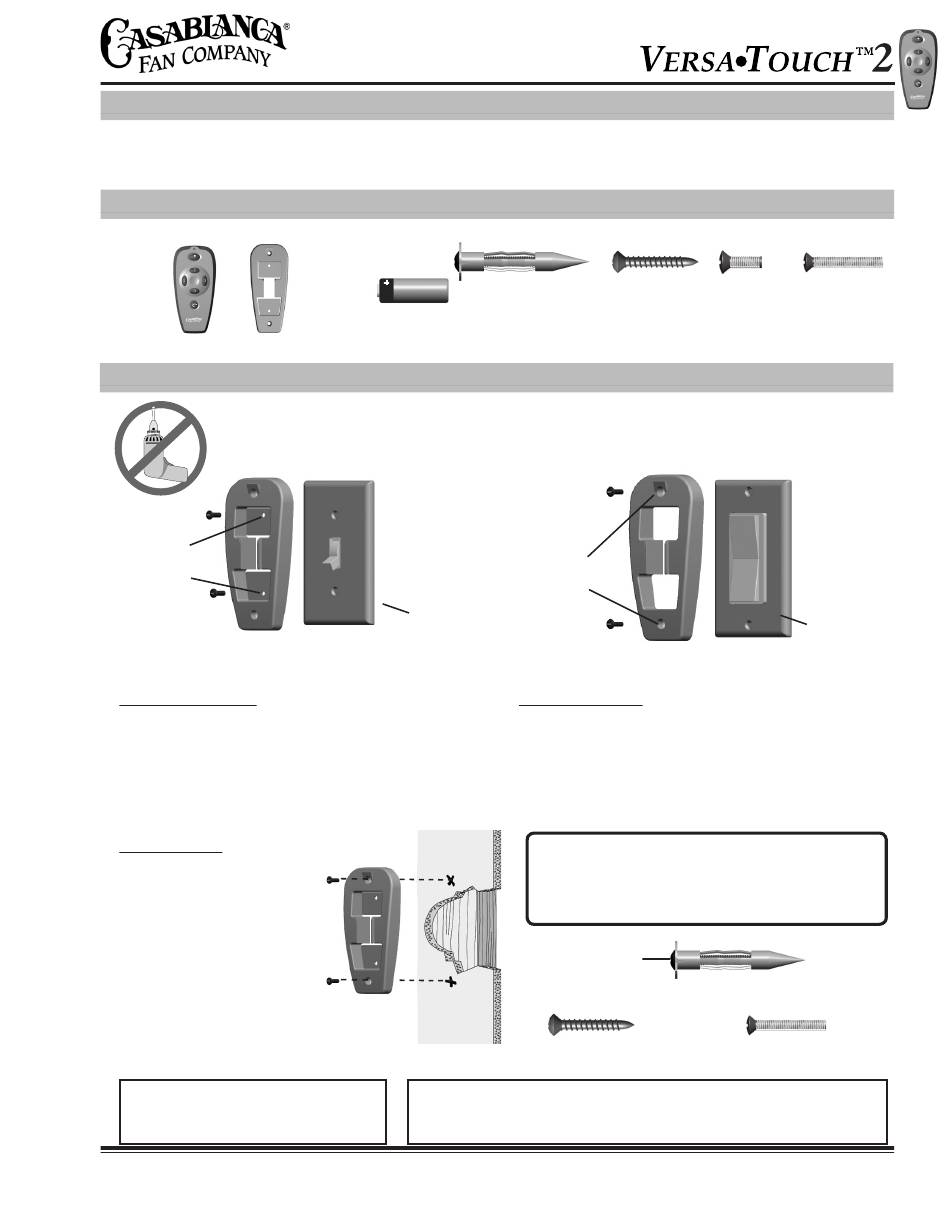

VERSA•TOUCH2 CONTROL BRACKET INSTALLATION
INNER
MOUNTING
HOLES
CONTROL
BRACKET
Standard Light Switch
Step A. Remove the two screws holding the switch cover
plate. Do not remove the cover plate.
Step B. Orient the control bracket as shown and line up the
two inner mounting holes with those on the switch.
Step C. Install and tighten screws removed in Step A, by
hand only.
Wall Installation
Step A. Locate a 2x4
wall stud in a convenient
location.
Step B. Orient the control
bracket as shown over the
2x4 stud.
Step C. Use the 1" wood
screws in either the inner
or outer mounting holes.
Install and tighten screws
by hand only.
Changes or modifications not expressly
approved in writing by Casablanca Fan Co.
may void the user's authority to operate
this equipment.

SAFETY FIRST

VERSA•TOUCH INSTALLATION
A23 MN21 12V
W-72
12V BATTERY
CONTROL
HOLDER
CAUTION! Do not use with wall dimmer.
STANDARD
TOGGLE
SWITCH
SWITCH
COVER
PLATE
This device complies with RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
P/N W7243001 RL0910
DRYWALL WOOD
ANCHOR SCREW
6-32 (2) 1" (2)
OUTER
MOUNTING
HOLES
CONTROL
BRACKET
Rocker Light Switch
Step A. Break off the two tabs by pushing outward.
Step B. Remove the two screws holding the switch cover
plate. Do not remove the cover plate.
Step C. Orient the control bracket as shown and line up the
two inner mounting holes with those on the switch.
Step D. Install and tighten screws removed in Step B by
hand only.
Note: The wall anchors and 6-32 x 1" screws may be
used in situations where mounting to a stud is not pos-
sible. Use the inner mounting holes. After securing the
anchor, discard the anchor's pointed screws and use the
6-32 decor ovalhead screws supplied.
ANCHOR
PANHEAD
SCREW
WOOD
SCREW 1"
SCREW SCREW
6-32 X / " 6-32 X 1"
3
8
(2) (2)
ROCKER
TYPE
LIGHT
SWITCH
SWITCH
COVER
PLATE
DRYWALL ANCHOR
DECOR OVALHEAD SCREW
6-32 X 1"
