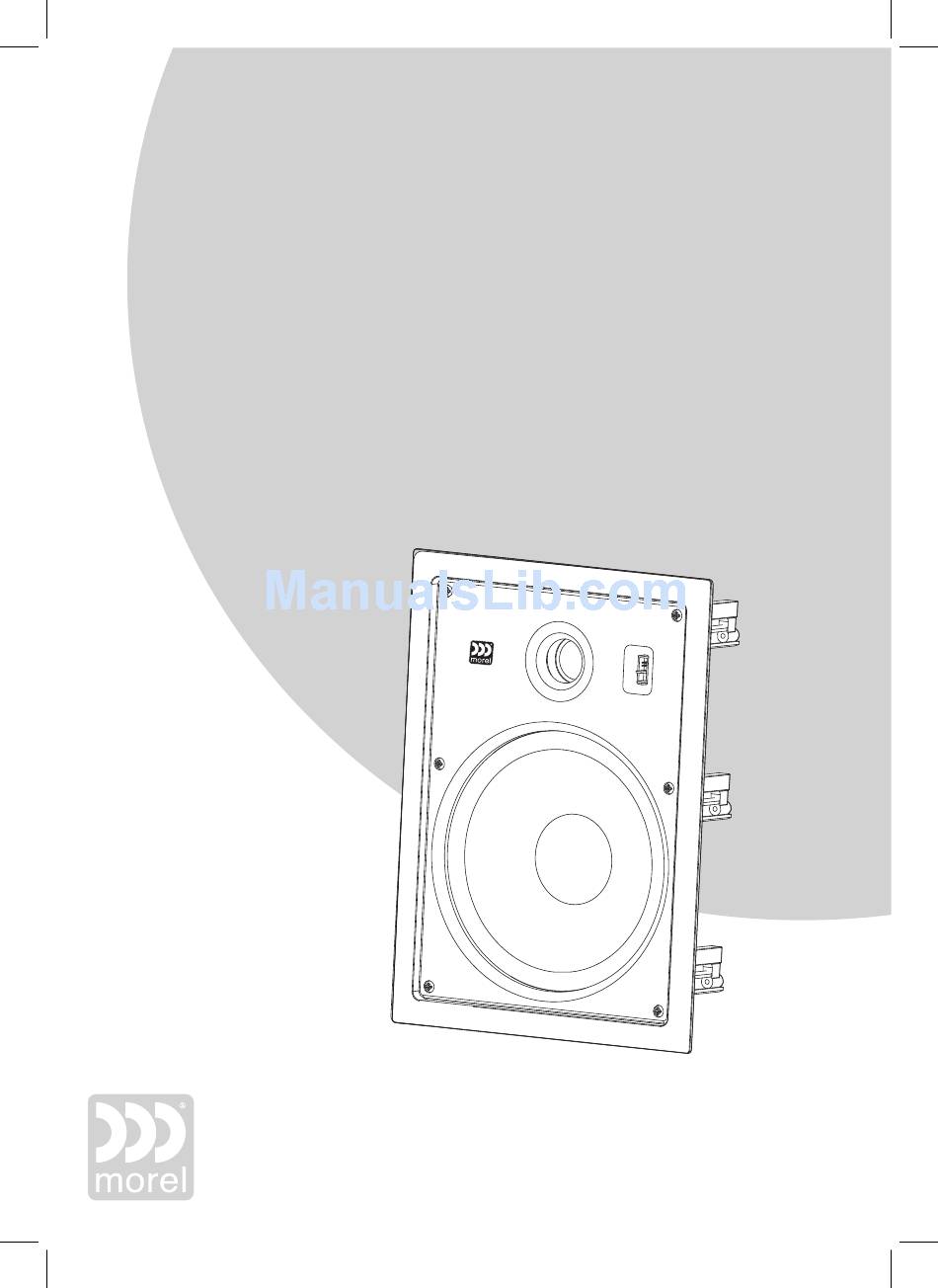

- Page 1 SoundWall Series User manual and inst allation guide...
-
Page 2: Speaker Placement
The information in this manual will help you get the best possible performance out of your speakers. If you have any questions, please contact your Morel dealer, or Morel Support at www.morelhifi.com. Speaker placement The position of the speakers has a great effect on the quality of the sound and soundstage created. - Page 3 SoundWall Installation Marking the wall bracket location using the cardboard Cut the wall gently Insert the speaker frame into the wall template(make sure there is no stud at the back of the drywall) Use screw driver to secure connet the cable to speaker inputs rame in the wall (+) to (+) and (-) to (-) Connect speaker to the frame with original...
- Page 4 (329 x 237 mm) (246 x 164 mm) FINISH White White White Morel operates a product design improvement policy consequently specifications are subject to alterations without prior notice SoundWall™ M / X Series SPECIFICATIONS IN-5M IN-6M / 6M (f) IN-8M...
