CONTENTS WARNING AND IMPORTANT INFORMATION ..........3 INSTALLATION ........................4 Positioning ..........................4 Cleaning the interior prior to use..................5 Installation instructions: ....................5 View of the appliance .....................10 Changing over the freezer compartment door ............11 OPERATION AND FUNCTIONS ................11 Operation-temperature regulation ................11 Storing food and drink ....................12 Food shelves...
WARNING AND IMPORTANT INFORMATION These warnings have been drawn up to ensure the safety of the user and others. Please read this instruction booklet carefully before installation and using the appliance, and always keep it together with the appliance for future reference. Disconnect the main plug before carrying out any cleaning or maintenance operations (e.g.
Units are supplied with isobutene (R600a). In any case the label inside the unit shows the type of refrigerant used. All units must be transported and installed with the utmost care since any exclusive knocking or shaking could damage the refrigerating circuit.

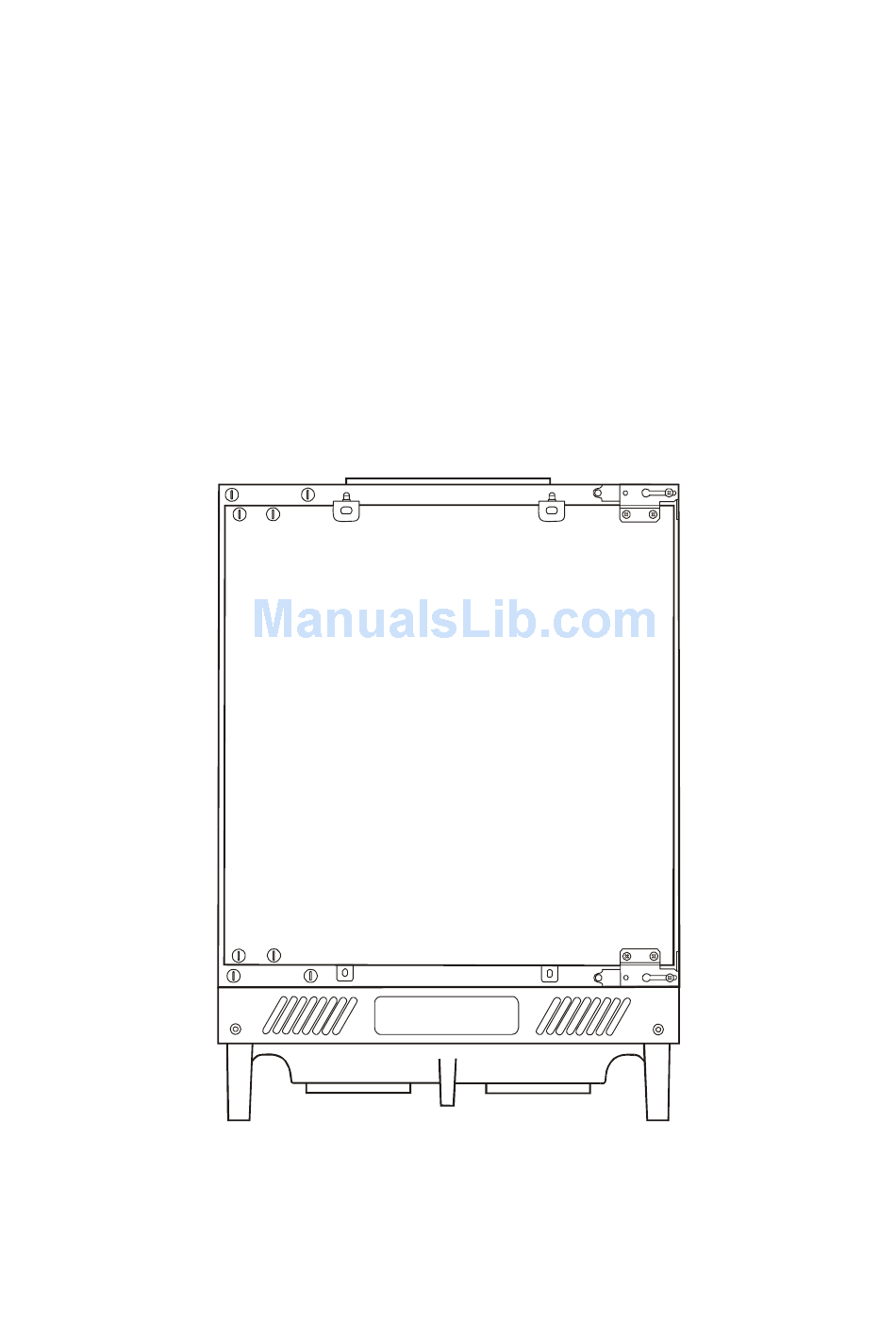

Cleaning the interior prior to use Prior to use, clean all internal parts with warm water and neutral detergent to remove the “new” odor and dry thoroughly. Never use abrasive detergents and/or powders that can damage the appliance. Installation instructions: Before installing, carefully read the instruction in order to avoid a certain number of problems.

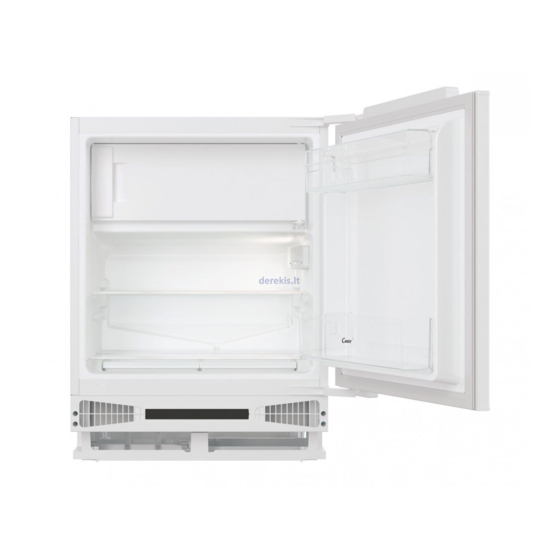

View of the appliance Rack Cover Freezer Chamber Ice Tray Upper rack on the door Temperature Regulator Shelf Lower rack on the door Crisper Drawer Cover Crisper Drawer How to remove the shelf from the appliance The shelf may be placed randomly upon any of the guide slots inside the appliance. It is protected against sliding out.
Changing over the freezer compartment door Open the freezer compartment door a little way Using a small screwdriver, press the spring in the opening of the lower door bearing slightly upwards and take the door bearing out complete with the door. Position the covering cap (M) on the opposite side Turn the freezer compartment door through 180 and fit the lower door bearing into the lower bearing cavity of the freezer compartment door.
Storing food and drink For optimal use of the refrigerator compartment observe the following instructions: Never put hot liquid or food in the refrigerator while evaporating; Cover or wrap food prior to storage (food containing spices in particular); Arrange food so that air can circulate freely inside the compartment. Meat (all types): wrap in protective material and store up to 1-2days maximum.
Defrosting the freezer compartment During use and when the freezer compartment door is opened, moisture is deposited in the freezer compartment as frost. Remove this frost from time to time with the soft plastic scraper. Under no circumstances use hard or pointed objects to remove frost. The freezer compartment should always be defrosted when the layer of frost has reached a thickness of approx.
Page 14
Symptom What to do Check that the power supply is not disconnected Check the thermostat is not set to “0 ”; Check that the plug is inserted correctly into the mains Appliance operation failure socket; Check that automatic cut-out on the mains line has not tripped or that a fuse has blown;...
