Modules described
in this manual
SZ2-ST
WHSZ Series Eyepieces
Auxiliary Objectives
SZX-STAD1
SZH-STAD1
SZ2-FO
SZH-SG
SZH-SC
This instruction manual is for the Olympus Zoom Stereo Microscopes. To ensure the safety, obtain
optimum performance and to familiarize yourself fully with the use of this microscope, we recom-
mend that you study this manual thoroughly before operating the microscope.
Retain this instruction manual in an easily accessible place near the work desk for future reference.

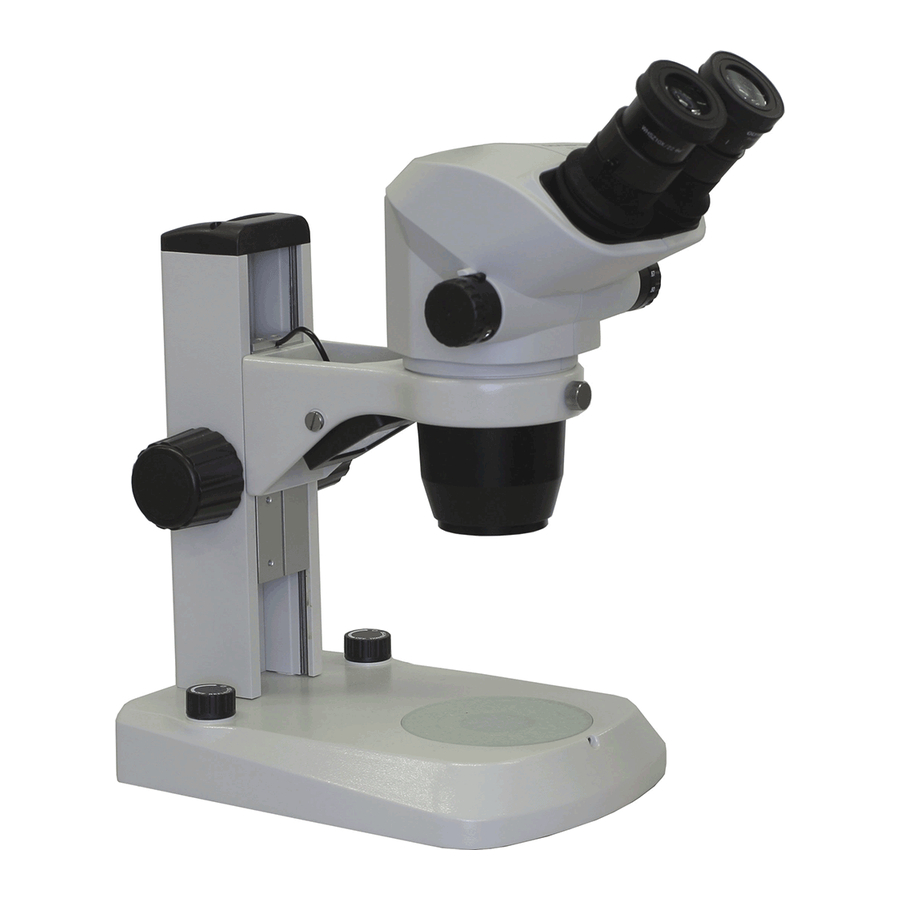

INSTRUCTIONS
SZ61/SZ61-60
SZ51/SZ51-60
ZOOM STEREO MICROSCOPES
SZ61TR
A X 6 6 1 1
Advertisement
Table of Contents
Related Manuals for Olympus SZ61
Summary of Contents for Olympus SZ61
- Page 1 SZ51/SZ51-60 ZOOM STEREO MICROSCOPES This instruction manual is for the Olympus Zoom Stereo Microscopes. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this microscope, we recom- mend that you study this manual thoroughly before operating the microscope.
- Page 2 This device complies with the requirements of directive 98/79/EC concerning in vitro diagnostic medical devices. CE marking means the conformity to the directive.
-
Page 3: Table Of Contents
series CONTENTS IMPORTANT – Be sure to read this section for safe use of the equipment. – MODULES AND NOMENCLATURE SUMMARY OF OBSERVATION PROCEDURE OPERATION 6-10 3-1 Base ............................................6 Using the Stage Plate ..........................................Adjusting the Focus Adjustment Knob Tension ..........................3-2 Microscope Body .................................. -
Page 4: Safety Precautions
IMPORTANT The SZ2 series of stereo microscopes are provided with ESD (Electro-Static Discharge) protection specifications. They are provided with electroconductive coating in their external finish to reduce the surface resistance and grounding lead wires in their standard base or frame to eliminate static electricity from them. CAUTION To maintain the ESD protection performance, always use the microscope in combination with the modules described in this manual or options having the ESD protection specifications. -
Page 5: Maintenance And Storage
series Maintenance and Storage 1. To clean the lenses and other glass components, simply blow dirty away using a commercially available blower and wipe gently using a piece of cleaning paper (or clean gauze). If a lens is stained with fingerprints or oil smudges, wipe it gauze slightly moistened with commercially available absolute alcohol. -
Page 6: Modules And Nomenclature
MODULES AND NOMENCLATURE Eye shade (Page 8) Eyepiece clamping knob (x 2) Zoom adjustment knob (Page 6 & 7) · SZ61/61-60/TR: 0.67X to 4.5X · SZ51/51-60: 0.8X to 4X Eyepiece · WHSZ10X · WHSZ10X-H Accessory mount thread · WHSZ15X-H (x 5) ·... - Page 7 series Observation Tube of SZ61TR C-mount (Page 10) C-mount clamping screw Confocality adjustment clamping screw (Page 10) (x 2) Light path selector lever (Page 9) Pulled out: TV path 100% (Right eyepiece sleeve light path 0%) Pushed in: Right eyepiece sleeve light path 100%...
-
Page 8: Summary Of Observation Procedure
SUMMARY OF OBSERVATION PROCEDURE 2-1 Preparation (Page) ............................1. Confirm the mounting, particularly that of the microscope body. (P. 14 - 16) .................. 2. Confirm that the eyepieces are positioned correctly with respect to the standard base. (P. 15) ..................................3. -
Page 9: Operation
series OPERATION 3-1 Base Using the Stage Plate When reflected light illumination is used, the stage plate can be placed either the white or black surface facing up depending on which side makes the specimen easier to view. # To maintain the ESD performance, use the black surface of the SZ2- SPBW stage plate. -
Page 10: Using The High/Low Zoom Magnification Stopper
Eyepieces with eyepiece micrometer disk ³ 1. Look through the eyepiece with eyepiece micrometer disk and rotate its diopter adjustment rings ² to bring the micrometer scale into focus. 2. Place an easy-to-observe specimen on the stage plate. ƒ 3. Set the zoom adjustment knob ³ for low magnification, look through the ²... -
Page 11: Using The Eye Shades
series Using the Eye Shades (Fig. 7) # The eye shades are not provided with ESD protection performance. When ESD protection is required, do not use the eye shades. When Wearing Eyeglasses Use with the eye shades in the normal, folded-down position. This will prevent the eyeglasses from being scratched. -
Page 12: Using The Auxiliary Objectives
Using the Auxiliary Objectives (Fig. 10) }All of the auxiliary objectives are provided with the ESD protection performance. # The 0.3X and 0.4X auxiliary objectives cannot be used in combina- tion with the standard base because their working distances are too long. -
Page 13: Adjusting The Confocality Of Tv Camera (Sz61Tr)
series Adjusting the Confocality of TV Camera (Fig. 12) (SZ61TR) }Ensuring the confocality between the observation image and the TV camera monitor image makes it possible to maintain accurate focusing of the observation image or monitor image even when the light path is ³... -
Page 14: Troubleshooting Guide
Under certain conditions, performance of the microscope may be adversely affected by factors other than defects. If problems occur, please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact Olympus. Problem... -
Page 15: Specifications
SPECIFICATIONS Item SZ61 SZ61-60 SZ61TR SZ51 SZ51-60 Microscope body Magnification 0.67X to 4.5X 0.8X to 4X Zoom ratio Working distance 110 mm Tube tilting angle 45° 60° 45° 60° Interpupillary distance Left/right interlocked. adjustment Adjustment range: 52 to 76 mm (using the WHSZ10X eyepieces) -
Page 16: Optical Performance
OPTICAL PERFORMANCE # The following data shows only the typical magnifications of each zoom magnification. Eyepieces Working WHSZ10X WHSZ15X WHSZ20X WHSZ30X Zoom Distance FN 22 FN 16 FN 12.5 FN 7 Magnification (mm) Actual Field Actual Field Actual Field Actual Field Total Power Total Power Total Power... -
Page 17: Assembly
series ASSEMBLY 7-1 Assembly Diagram The diagram below shows the sequence of assembly of the various modules. The numbers indicate the order of assembly. Assembly steps enclosed in will be detailed on the subsequent pages. # When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. - Page 18 7-2 Detailed Assembly Procedures Installing the Microscope Body (Fig. 13) · Loosen the body clamping knob @ and insert the microscope body gently. }The body clamping knob @ can be attached to any of the three posi- tions ² around the arm. After installation, attach the knob to a position so that the knob does not come in the way of the light source, etc.
- Page 19 series Mounting the TV Camera (SZ61TR only) (Fig. 16) 1. Using the Allen wrench, loosen the C-mount clamping screw @ and remove the C-mount seat ². ³ ² 2. Screw the C-mount seat ² into the TV camera ³. 3. Place the C-mount seat in the original position and tighten the clamping screw @.
-
Page 20: Optional Modules
OPTIONAL MODULES 8-1 BX Stage Adapter Type 1 SZX-STAD1 Introduction The SZX-STAD1 is an adapter for use in mounting the U-SRG or U-SRP rotary stage on the SZ2-ST standard base, SZ- ST standard base, large base or SZX illumination base. The U-SRP is used in combination with the U-FMP mechanical stage to enable movement in the X- and Y-directions, which is convenient for framing in photomicrography or TV observation. - Page 21 series Installation Mechanical stage U-FMP Rotary stage Rotary stage U-SRP U-SRG Clamping screw Allen wrench Clamping screw BX stage adapter type 1 SZX-STAD1 Mounting hole Mounting screw hole Base Mounting the polarizer (SZX-PO or SZ-POL-2) When simplified transmitted light polarized observation is required, mount the polarizer on the BX stage adapter type 1 (SZX-STAD1).
-
Page 22: Stage Adapter Type 1 Szh-Stad1
8-2 Stage Adapter Type 1 SZH-STAD1 The SZH-STAD1 is an adapter providing the similar function to the BX stage adapter type 1 (SZX-STAD1). The applicable stage is the BH2-SH horizontal knob stage. The installation and polarizer (SZX-PO or SZ-POL-2) mounting methods are identical to those for the SZX-STAD1. Please read the previous section (page 18). - Page 23 series External View and Nomenclature Focus adjustment knobs Stroke: Approx. 21 mm Rotation tension adjustable. Clamping screw mount holes Stage Load capacity: 1 kg Clamping knob Installation 1. Using the provided screw and Allen wrench, attach the SZ2-FO up/down moving stage into the screw hole on the stage plate mount hole of an applicable base or that on the stage plate (SZ-STL).
-
Page 24: Gliding Stage Szh-Sg
Adjusting the focus (Fig. 19) 1. Rotate the focus adjustment knob @ of the SZ2-FO up/down moving Bring to the center of stage to bring the stage at the center of the focusing stroke. the stroke. 2. Place a specimen on the stage and rotate the focus adjustment knob ² ²... -
Page 25: Cup Stage Szh-Sc
series Installation Note 1. Be sure to clean the friction surfaces if dirt or metallic power is attached on them. Stage plate Stage plate mount hole Note 2. Do not place the gliding stage on the friction Use the one provided with the base. - Page 26 Installation # Before mounting, remove dirt and dust from the mount surfaces and handle carefully so as not to damage them. Specimen holder Fit the cup stage seat into the stage plate mount hole of an applicable base. Specimen holder Place the cup stage on the seat.
