Summary of Contents for Alto ELVIS 15.2XL

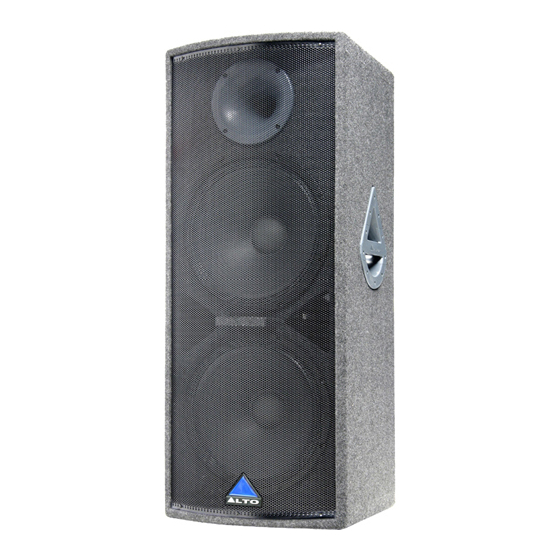

- Page 1 User's Manual ELVIS 15.2XL Series www.altoproaudio.com Version 1.0 Feb. 2007 English...
- Page 2 SAFETY RELATED SYMBOLS Unplug the product before electrical storms occur and when unused for long periods of time to reduce the risk of electric shock or CAUTION fire. RISK OF ELECTRIC SHOCK DO NOT OPEN External Connection This symbol, wherever used, alerts Always use proper ready-made insulated you to the presence of un-insulated mains cabling (power cord).
- Page 3 To avoid the risk of electric shock and Servicing damage, do not subject this product to Refer all servicing to qualified service any liquid/rain or moisture. Do not use this personnel only. product when in close proximity to water. Do not perform any servicing other than those instructions contained within the Do not install this product near any direct User's Manual.
-
Page 4: Table Of Contents
-. For Passive Full-range Speakers -. For Active Full-range Speakers 2. CONNECTION PLATE ................6 -. PASSIVE FULL-RANGE Speaker for ELVIS 15.2XL -. Active FULL-RANGE Speaker for ELVIS15.2XLA 3. WIRE CONNECTIONS................8 -. For Passive Full-range Speakers -. For Active Full-range Speakers... -
Page 5: Quick Start - Passive/ Active Speaker Cabinet
1. QUICK START - PASSIVE /ACTIVE SPEAKER CABINET Make all initial connections with all the equipment powered off, and ensure that all main volume controls are turned completely down. -. For Passive Full-range Speakers 1). Connect one side of the speaker cable to the Output CHA/CHB or Binding Post of your stereo power amplifier and the other side to the Input socket of your speaker cabinet. -
Page 6: For Active Full-Range Speakers
-. For Active Full-range Speakers 1). Connect one side of the signal cable at your audio mixer in to Output Left /Right (with Stereo-Jack or XLR) and the other side of the cable in to the Line Input (COMBO) of your active speaker cabinet (with Stereo-Jack or XLR). 2). -
Page 7: Connection Plate
2. CONNECTION PLATE - PASSIVE FULL-RANGE Speaker for ELVIS 15.2XL (1) INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2/-2 not connected). (2) THRU: Direct LINK for connect in parallel a second speaker cabinet (SPK +1/-1 connected;... -
Page 8: Active Full-Range Speaker For Elvis15.2Xla
-. ACTIVE FULL- RANGE Speaker for ELVIS15.2XLA (1) Bi-polar main power switch (2) Input AC power socket with main fuse VOLUME main power amplifier control LINE OUT at + 4dB on XLR connector LINE IN at + 4dB on COMBO connector Ground Swicth POWER, Green LED, indicate ON status (8) SIGNAL LIMIT... -
Page 9: Wire Connections
3. WIRE CONNECTIONS -. For Passive Speaker Cabinets Please use only the power connectors to make connections with other signal source equipment for the passive speaker cabinets. The power connector has four terminals: 1+, 1-, 2+, 2-. In our cabinets, only 1+/1- are used to connect the Speaker+/Speaker-, and 2+/2- are not used. -
Page 10: Technical Specifications
4. TECHNICAL SPECIFICATIONS Model No. ELVIS15.2XL System Type 3-Way Vented Box Continuous Power 500W AES Standard Peak Power Rating 1000W Peak Sensitivity (1W, 1m) 101dB /122 dB Max Frequency Response 55Hz /20kHz +/-6dB Impedance Nominal Crossover Frequency 2200Hz 12dB/oct Electronics High Frequencies Protection Protection Low-Frequency 2*15"/385mm Woofer... - Page 11 No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan http://www.altoproaudio.com Tel: 886-4-22313737 email: alto@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2007 SEIKAKU GROUP NF02169-1.1...
