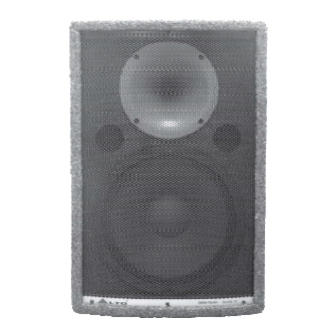

Elvis series speaker cabinet
Hide thumbs Also See for ELVIS Series:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version
User's Manual
ELVIS Series
SEKAKU ELECTRON IND. CO., LTD
R R
LTO
NO.1, LANE 17, SEC. 2, HAN SHI WEST ROAD, TAICHUNG, 401 TAIWAN
http://www.altoproaudio.com
Tel:886-4-22313737
www.altoproaudio.com
email: alto@altoproaudio.com Fax:886-4-22346757
Version 1.0 July 2003
All rights reserved to ALTO. All features and content might be changed
English
English
without prior notice. Any photocopy, translation, or reproduction of part of this
manual without written permission is forbidden. Copyright
2003 Sekaku Electron

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELVIS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Alto ELVIS Series

Summary of Contents for Alto ELVIS Series

  • Page 1 Tel:886-4-22313737 www.altoproaudio.com email: alto@altoproaudio.com Fax:886-4-22346757 Version 1.0 July 2003 All rights reserved to ALTO. All features and content might be changed English English without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright...
  • Page 2 SAFETY INSTRUCTIONS ELVIS12SA ELVIS15SA Output Power IHF 250Watt IHF 350Watt IHF Output Power RMS 180Watt RMS 250Watt RMS CAUTION Max SPL at 1mt 121 dB ( IHF Power ) 123 dB ( IHF Power ) Input Sensitivity + 4dB / 1,23V L -R IN / L -R OUT RISK OF ELECTRIC SHOCK Input Impedance 30kOhms - In / 600Ohms - Out...
  • Page 3 TABLE OF CONTENT 5. ELVIS TECHNICAL SPECIFICATIONS 1. QUICK START - PASSIVE SPEAKER CABINET..................3 ELVIS10 ELVIS12 ELVIS15 ELVIS12M -. For Passive Full-range Speakers System type 2-way vented box 2-way vented box 2-way vented box 2-way vented box Continuous power 120W AES standard 180W AES standard 250W AES standard 180W AES standard...
  • Page 4 4. WIRE CONNECTIONS 1. QUICK START - PASSIVE SPEAKER CABINET -. For Passive Speaker Cabinets Make all initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely down. Please use only the power connectors to make connections with other signal source equipment for the passive speaker cabinets.
  • Page 5 -. For Passive Subwoofer & Satellite Speakers -. ACTIVE SUBWOOFER Speaker for ELVIS12 SA / ELVIS15 SA 1). Connect one side of speaker cable to the Output CHA/CHB or Binding Post of your stereo power amplifier and the other (1) Bi-polar main power switch. side to the Input socket of your subwoofer, with the second speaker cable connect the Output of the subwoofer to the (2) Input AC power socket with main fuse.
  • Page 6 2. QUICK START - ACTIVE SPEAKER CABINET -. ACTIVE FULL- RANGE Speaker for ELVIS10A / ELVIS12A / ELVIS15A / ELVIS12MA (1) Bi-polar main power switch. Make all initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely (2) Input AC power socket with main fuse.
  • Page 7 -. For Active Subwoofer & Satellite Speakers 3. CONNECTION PLATE 1). Connect one side of signal cable at your audio mixer in to Output Left /Right (with Stereo-Jack or XLR) and the other - PASSIVE FULL-RANGE Speaker for ELVIS10 / ELVIS12 / ELVIS15 / ELVIS12M side of the cable in to the Left / Mono Input (COMBO) of the active subwoofer;...
