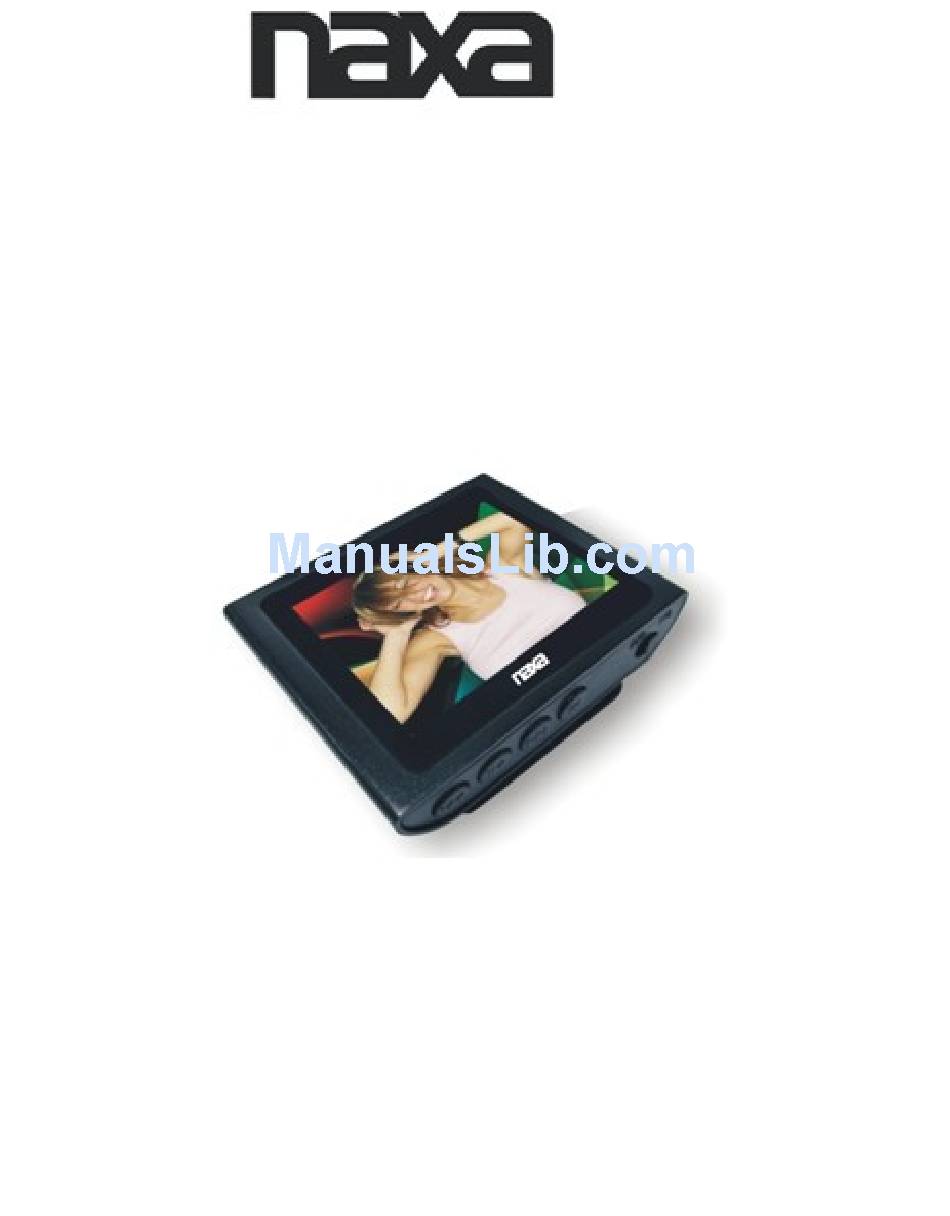

Page 1: Instruction Manual
Portable Media Player with 1.8" G-Sensor Touch Screen, Built-In 4GB Memory, PLL Digital FM Radio & Bulit-In SD Card Slot NMV-170 Instruction Manual Please read the manual thoroughly before operating this product. Keep the manual for future reference... - Page 2 Charge: In order to charge the unit switch must always be kept in the ON position This player is the newest digital video player. Support MP3、WMA music file and AMV video file. Which have pure music sound and excellent exterior. We are sincerely hoping this player can bring more enjoyable digital time.
- Page 3 Setup function • Touch screen function. • TF card slot • G-sensor function • Inside record function • You can record radio program if you like the program. No driver under Windows2000 • Record and repeat • Can record and save WAV format voice file. And also you can choose some parts of the file to repeat or compare repeat to realize digital repeat function.
- Page 4 Multi play mode • Normal, Repeat one, Folder, Repeat folder, Repeat all, Random, Intro Stable power off function • You can set the player into sleep mode or save battery mode. U-disc Function free of Drives • Without management programs, you can directly operate files by means of "Moving Disc"...
- Page 5 5. Back: Last item/ fast backward/volume decrease, fast decrease 6. USB port: USB plug 7. EARPHONE jack: Earphone standard jack • Battery Battery 3.7V，display full battery. With the time pass by the battery indicate will decrease. If battery used up battery display blank and re-charge in time If re-charge please turn on player, or Mp3 player can’t response the charge task.
- Page 6 Swith the button on/off to “ON” or Long press Play/Pause button to turn on. Swith the button on/off to “OFF” or Long press Play/Pause button to turn off. Play/Pause: exit from submenu Press Play/Pause button or short click screen to play music when in music mode Press Play/Pause button or short click screen to stop when playing music Press Play/Pause button or short click screen...
- Page 7 Know your player Play/pause...
- Page 8 menu back on/off next earphone jack card slot Basic function...
- Page 9 • Enter into menu Switch turn on button will enter into main menu. Music: Short press “Menu” button or click music symbol to enter into music menu. . Press play/pause button or short click screen can choose play or stop music. .
- Page 10 choose your favorite songs. . Long press ”Menu” button or long click screen can back to main menu. . when play songs, you can press menu or slide right on screen to choose” Repeat, Equalizer, SRS WOW, exit.” Press “Menu” button you can choose “Repeat”...
- Page 11 click on screen to enter, choose “yes” or “No” by press Next/back button or click , click screen or press “menu” button to confirm and return back. Movie Short press “Menu” button or click Video symbol to enter into movie menu. .
- Page 12 . When stop play movie, you can press menu or slide right on the screen to choose “ Local folder, Delete file, Delete all, repeat, exit”. Press “menu” button or slide right on screen can enter submenu. If you want delete movie, please press “menu”...
- Page 13 . Long press ”Menu” button or long click screen can back to main menu. . Press “menu” button or slide right on screen to can choose “ Local folder, Playback set, delete file, delete all, exit”. If you want delete file, please press “menu”...
- Page 14 new recording. Long press ”Menu” button or long click screen can saving record and back to main menu. . When stop play record, you can press menu or slide right on screen to choose “REC bitrate, exit” FM Radio Short press “Menu” button or click Radio symbol to enter into Radio menu.
- Page 15 can back to main menu. Extras Short press “Menu” button or click “Extras” symbol to enter into Extras menu. Press next/back button or click to choose Text or Browser. You can read files in text menu, Press next/back button or Slide up/down on screen to turn page.
- Page 16 or long press Menu or long click screen can back to main menu Setup Short press “Menu” button or click “Settings” symbol to enter into setup menu. . Press play/pause button or slide left on screen or long press Menu or long click screen can back to main menu .
-
Page 17: Technical Specifications
“Power off time” and “sleep time” from “power off” menu. ·Technical Specifications Dimension 50.5*43*14.5mm Audio Format MP3, WMA Video Format... - Page 18 1.8〞 Display USB 2.0 Memory Flash memory: 4GB Power Supply Built-in rechargeable battery 32Kbps，64 Kbps，128 Freq. Kbps Recording Format...
