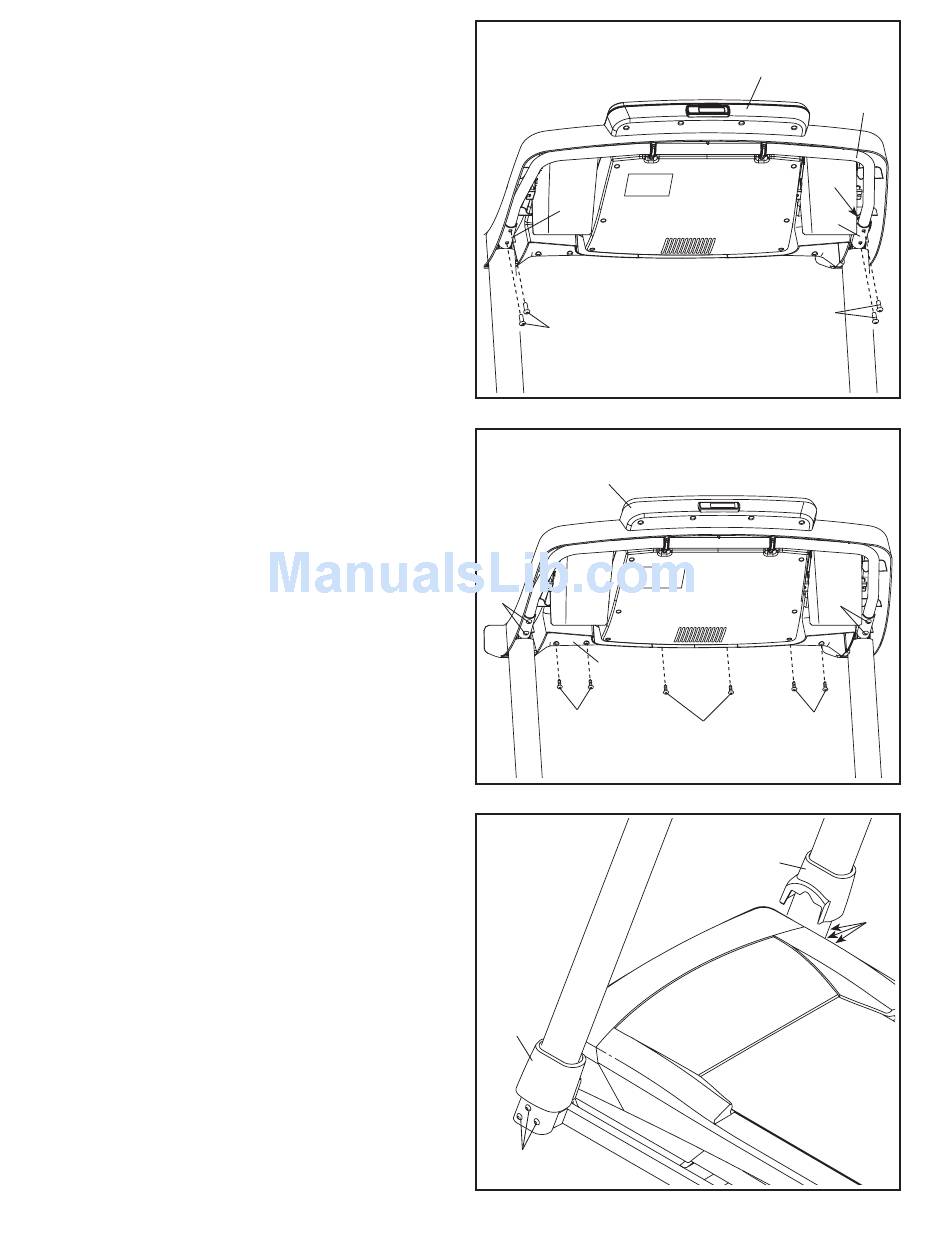

10. Set the console assembly on the Left and Right
Handrails (71, 72). Make sure that no wires
are pinched. Insert the excess Upright Wire
(70) behind the Console Frame (87).
Attach the console assembly to the brackets on
the Handrails (71, 72) with the four 5/16" x 5/8"
Screws (7) that you removed in step 6. Do not
tighten the Screws yet.
11. Attach the Pulse Crossbar (31) to the console
assembly with six #8 x 1/2" Screws (9). Start all
six Screws, and then tighten them.
Firmly tighten the four 5/16" x 5/8" Screws (7).
12. Firmly tighten all six 3/8" x 4" Screws (4). Slide
the Left and Right Base Covers (73, 74) down.
10
72
7
11
Console
Assembly
7
31
9
12
73
4
12
Console
Assembly
87
70
71
7
7
9
9
74
4
