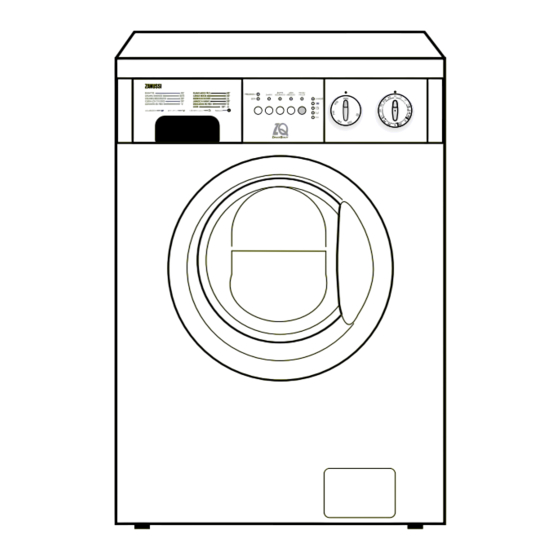

Zanussi FA825E User Manual

Washing machine fa825e; fa1025e
Hide thumbs

Advertisement

LAVADORA
WASHING MACHINE
MÁQUINA DE LAVAR ROUPA
FA825E
FA1025E
E
MANUAL DE USO
GB
USER MANUAL
MANUAL DE UTILIZAÇÃO
P
35.292.809/1

Advertisement

loading

  Related Manuals for Zanussi FA825E

  Summary of Contents for Zanussi FA825E

  • Page 1 LAVADORA WASHING MACHINE MÁQUINA DE LAVAR ROUPA FA825E FA1025E MANUAL DE USO USER MANUAL MANUAL DE UTILIZAÇÃO 35.292.809/1...
  • Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
  • Page 3: Table Of Contents

    Contents Warnings 27-28 Maintenance Bodywork Disposal Detergent dispenser drawer Cleaning of the drainage area Tips for environmental protection 28 Water inlet filter Emergency emptying out Technical specifications Frost precautions Installation 30-31 Something not working? 45-47 Unpacking Hydraulic connection Levelling Electrical connection Your new washing machine Description of the appliance Detergent dispenser drawer...
  • Page 4: Warnings

    Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •...
  • Page 5: Disposal

    Child safety • Keep all detergents in a safe place out of children’s reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum.
  • Page 6: Technical Specifications

    MAXIMUM RECOMMEND LOAD Cotton, linen 4,5 kg Synthetics 2 kg Delicates 2 kg Woollens 1 kg SPIN SPEED FA825E 800 rpm máx. FA1025E 1000 rpm máx. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2100 W MINIMUM FUSE PROTECTION 10 A...
  • Page 7: Installation

    Installation Transit security bars Hydraulic connection Before starting the machine up, the transport There should be a COLD WATER tap near the security bars must be removed as follows: washing machine with a screwing on connection You are advised to keep all the transport security pipe of 3/4 gas for the water supply, a sink, a wash bars.
  • Page 8: Levelling

    1,5 m. Max. IMPORTANT: The distance from the floor to the Electrical connections highest part of the hose should be between 60 to Before plugging the appliance make sure that: 90 cm. (It is advised to be between 60 and 70 cm). 1º.
  • Page 9: Your New Washing Machine

    Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The balance control device reduces the risk of instability in machine movement and it guarantees a quieter operation.
  • Page 10: Use

    Control panel 1. Detergent dispenser drawer 3. DIARIO button By selecting this option the washing cycle duration is Programme option buttons reduced. We recommend its use for slightly soiled Depending on the programme, different option cotton and synthetic fabrics. buttons can be combined. When these buttons are pressed, the corresponding 4.
  • Page 11: Programme Progress Display

    3. Press INICIO / PAUSA button, to start the new cycle. Position 500 r.p.m. is common for all fabrics. In FA825E model: position 800 r.p.m. corresponds to 800 r.p.m. for synthetics and 700 for wool and delicates. Position 400 r.p.m. is common for all fabrics.
  • Page 12: Washing Hints

    Laundry weights Washing hints The following weights are indicative: Sorting the laundry bathrobe 1200 g napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens.
  • Page 13: Detergents And Additives

    Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly.
  • Page 14: International Wash Code Symbols

    International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not...
  • Page 15: Operating Sequence

    Operating sequence Before washing your first load of laundry, we recommend that you run a cotton cycle at 60° C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half of the normal amount of detergent into the main wash compartment and start up the machine.
  • Page 16: Start The Machine

    7. Start the machine 10. Opening the door after the programme has started Before starting the machine check that: Firstly, stop the machine by pressing • the appliance is plugged in. INICIO / PAUSA button. • the water supply tap is turned on. After about one or two minutes the door can be •...
  • Page 17: Washing Programmes

    Programme table Washing programmes for cotton and linen Programme selector Washing Load Stains and type of fabric Description Possible option dial programme position Prelavado o lejía Wash at 90° C Diario 4,5 kg For heavily soiled cotton items. 3 rinses BLANCOS Super aclarado ALGODÓN...
  • Page 18: Programme Table

    Programme table Washing programmes for synthetics, mixed fabrics, delicates, wool Programme selector Washing Load Stains and type of fabric Description Possible option dial programme position Prelavado Special programme for synthetic Wash at 40° C Diario PLANCHADO 2 kg fabrics, which makes ironing 4 rinses Super aclarado FÁCIL...
  • Page 19: Washing Programmes

    Programme table Special washing programmes Programme selector Washing Load Possible option Stains and type of fabric Description dial programme position With this programme it is possible to rinse and spin garments which have been 3 rinses 4,5 kg Antiarrugas (*) ACLARADOS washed by hand.
  • Page 20: Maintenance

    Maintenance 1. Bodywork 3. Cleaning of the drainage area Clean the outside of the machine with warm water The drainage area must be cleaned if the pump has and a neutral, non-abrasive household detergent. been blocked with objects such as buttons, safety Rinse with clean water and dry with a soft cloth.
  • Page 21: Water Inlet Filter

    4. The water inlet hose filter 6. Frost precautions If the machine is installed in a place where the If it takes longer to fill up the washing machine it is temperature could drop below 0°C, proceed as time to check the water inlet hose filter it may be follows: clogged.
  • Page 22: Something Not Working

    Something not working? Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling technical service. Before contacting your local Service Force Centre, please check the following possible problems listed below. During machine operation it is possible that FIN light flashes to indicate that something is not working correctly. •...
  • Page 23: Unsatisfactory Washing Results

    Problems Possible cause - Unsatisfactory washing results: • Little detergent or an inappropriate one has been used. An insufficient amount of detergent leaves the laundry looking grey. • Stubborn stains have not been treated prior to washing. • The correct wash programme has not been selected.
  • Page 24 If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.
  • Page 26 EHPOESL/Z - 09/2002...

This manual is also suitable for:

Fa1025e
