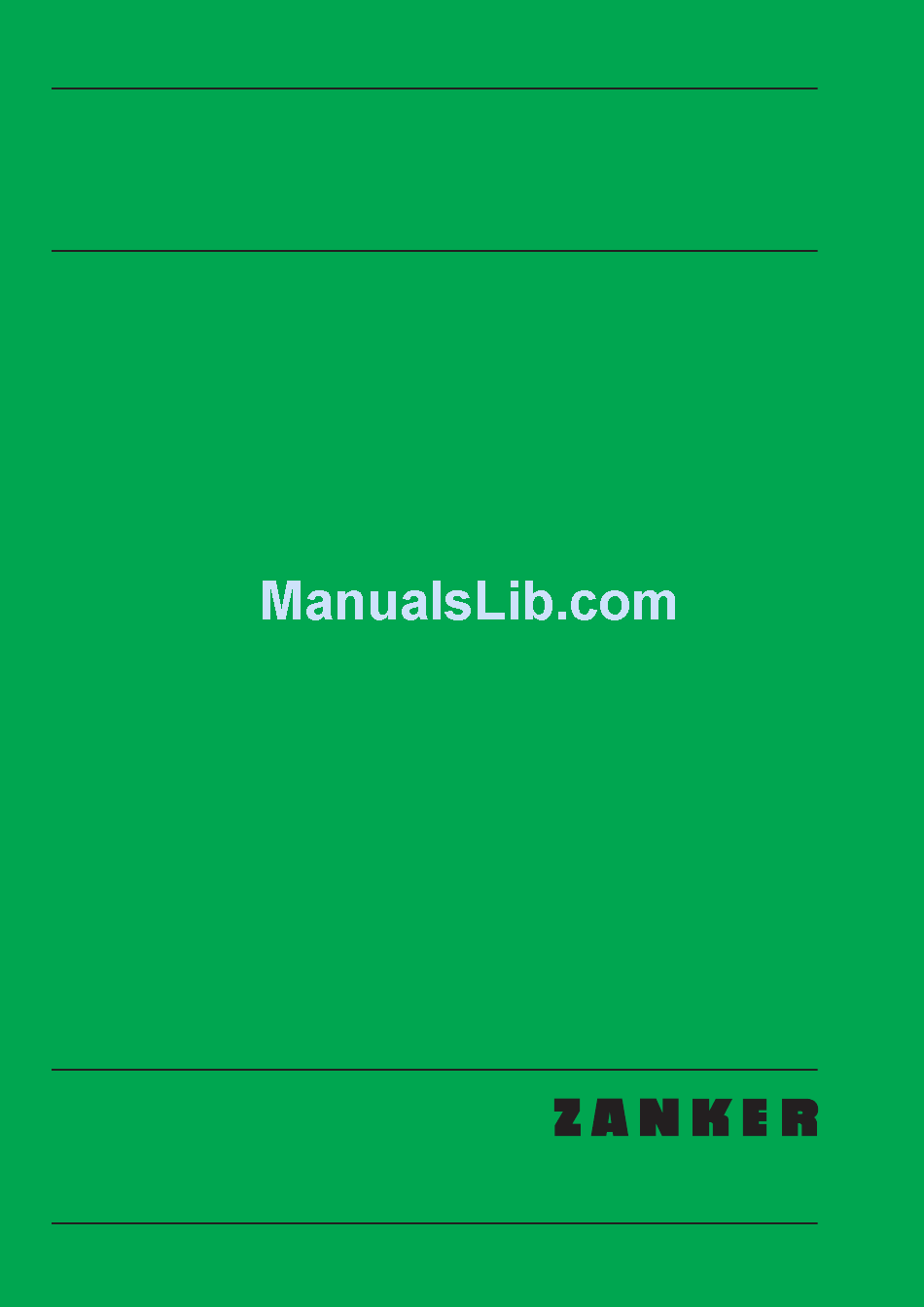

- Page 1 Geschirrspüler ZKS 5619 Dishwasher Bedienungsanleitung Instruction book...
-
Page 2: Table Of Contents
Contents For the user For the installer Important safety information Installation instruction Technical specifications Description of the appliance Water supply connections The control panel Water outlet connection Before use Electrical connection Setting the water softener Building-in Rinse aid Adjusting the height Use of detergent of the appliance The furniture door... -
Page 3: Important Safety Information
Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 4: Description Of The Appliance
Description of the appliance IN85 1. Water hardness adjustment 10. Large filter 2. Levelling spacers 11. Central filter 3. Upper basket stop 12. Upper spray arm 4. Salt container 13. Upper basket 5. Lower spray arm 6. Detergent dispenser 7. Control panel 8. -
Page 5: The Control Panel
The control panel 1 2 3 4 1. On/Off indicator light 6. Salt refill indicator light This comes on when the salt has run out, to 2. On/Off pushbutton remind you to refill the container. By depressing this button the machine starts 7. -
Page 6: Before Use
Before use Before using your dishwasher for the first time: 1. ensure that the electrical and water connections comply with the installation instructions 2. remove all packaging from inside the appliance 3. set the water softener 4. fill the salt container 5. -
Page 7: Filling With Salt
Filling with salt If your water is "level 0" it is already soft and therefore there is no need to use salt. Salt must be used from level 1 upward. Only use salt specifically designed for use in dishwasher. All other types of salt not specifically designed for use in dishwasher, specially table salt, will damage the water softener. -
Page 8: Rinse Aid
Rinse aid Rinse aid is automatically added during the last rinse, ensuring through rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting. -
Page 9: Use Of Detergent
Use of detergent Only use detergents specifically designed for use in dishwashers. To fill the dishwasher with detergent proceed as follows: 1. Open the dispenser lid by pulling the catch (D). 2. Add the detergent according to the recommendations in the programme chart. As all detergents are not the same, you should also consult the instructions on the packet specially for tablets. -
Page 10: Using Your Appliance
Using your appliance Loading your appliance Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance. Do not load very small items which can fall through the baskets. Open the door and slide out the baskets to load the dishes. -
Page 11: Adjusting The Height Of The Upper Basket
The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Glasses with long stems can be placed upside down in the raised cup racks. Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so they do not move. -
Page 12: Hints And Tips
Hints and tips To save energy Items not suitable for dishwashers: The following items should not be washed in Place dishes in the machine immediately after the dishwasher (unless they are sold as every meal and wait until the dishwasher is full dishwasher proof): before washing. -
Page 13: Washing Programmes
Washing programmes Starting Required Recommended quantity Programme Cycle Degree of soil of detergent position of the pushbuttons and type of load description in the on the programmer dispenser dispenser Prewash up to 55°C Intensive Heavy soil. Main wash up to 70°C Crockery, cutlery 70°C 25 g... -
Page 14: Operating Sequence
Operating sequence Check the filters Start the programme Ensure they are clean and properly Depress the On/Off button. positioned (see cleaning instructions). The On/Off indicator light will come on and the machine will start. If you wish to interrupt the wash Check that there is rinse aid programme at any time press the button and salt... -
Page 15: Maintenance And Cleaning
Maintenance and cleaning Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend every 3 months to run a 65°C wash programme without dishes using detergent. Cleaning the central filter (After each wash) Scraps of food may accumulate in the drain filter... -
Page 16: External Cleaning
External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc..). Prolonged periods of non-operation If you are not using the machine for any period of time you are advised to: 1. -
Page 17: Something Not Working
Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. Symptom Solution The machine will not start The door has not been properly closed. -
Page 18: Protection Against Flooding
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door (see picture). Protection against flooding In order to prevent water floods, the machine has Prod.No. -
Page 19: Installation Instruction
Installation instruction Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. Technical specifications DIMENSIONS Width... -
Page 20: Water Supply Connections
Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. Water supply connections This dishwasher may be fed with either hot (max. 60°) or cold water. Nevertheless we advise you a cold water supply. A hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes a lot. -
Page 21: Water Outlet Connection
Water outlet hose connection The end of the drain hose can be connected in the following ways: 1. To the sink outlet siphon, securing it if necessary with a clip. 2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm. The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher. -
Page 22: Building-In
Building-in This dishwasher is designed to be fitted under a kitchen counter or worksurface. It is essential that the recess dimensions indicated in the diagram are followed. No further openings for venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through. -
Page 23: The Furniture Door
The furniture door The door on this appliance is designed for the overlay of a panel having the following dimensions: Width 596 mm Height 604 mm max Thickness 20 mm max Weight 2 - 7.5 kg max The panel height should be no more than indicated, otherwise complete opening of the door will not be possible as the furniture door panel will hit against the dishwasher plinth. -
Page 24: Of The Appliance
Fitting the vapour protection Screw the vapour protecting strip onto the front part of the worktop using four 3.5 x 16 screws. 6 0 0 m m II25 Fitting the sealing strips to the sides of the appliance To ensure closer contact with adjacent kitchen units, fit the plastic sealings strips down both sides of the front of the machine before inserting it into the recess. -
Page 25: Noise Protection
Noise protection Adhesive noise protection ensures excellent noise insulation. This should be fitted when the dishwasher has been mounted in the recess and the height adjusted. Apply the protection as shown in the drawing, making sure that the non-adhesive section reaches right down to the floor. - Page 26 2/1198 152991 38/2...
