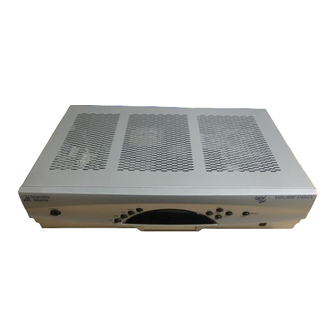

Explorer
Digital Video Recorder
User's Guide
Get More Out of Your TV...
Watch
Record
Watch & Record • Watch one program while recording another
Play Back
Recordings on
Other TVs
®
• Your favorite shows anytime you want...on your schedule
• Pause live TV for up to 1 hour without missing a minute
• Two live programs at the same time
• All future episodes of your favorite programs by performing a simple,
one-time setup
• Watch two programs at once (using the PIP feature) and record
one of them
• Watch a pre-recorded program while recording one or two
other programs
• Use the Multi-Room
on up to 4 TVs at the same time
• Use parental controls to block play back of recordings in any room
*The MR-DVR feature is only available on the Explorer
™
DVR* (MR-DVR) system to play back recordings
®
8300
™
MR-DVR models.
