  • Page 1 Explorer Wireless Keyboard User’s Guide...
  • Page 2 Terminal. The Wireless Keyboard is specifically designed to interface with the EXPLORER 2000 terminal. See the components diagram in the EXPLORER 2000 Terminal Front Panel section of this guide for information about basic functions for using the EXPLORER 2000 terminal front panel controls.

  • Page 3: Table Of Contents

    Proper Use of Keyboard ................. 7 Quick Reference ..................10 • Wireless Keyboard .............. 10 • EXPLORER 2000 Terminal Front Panel ......11 • Buttons and Keys ..............12 Programming the Wireless Keyboard ..........17 • Programming for TV Operation ........17 •...

  • Page 4: Important Rules For Safe Operation

    M agn etic/static d evices m ay affect th e op eration of th is eq u ip m en t. Continued on next page Explorer Wireless Keyboard User’s Guide 594157 Rev C...
  • Page 5 Avoid p erson al in ju ry an d d am age to th is eq u ip m en t. Placin g th is eq u ip m en t on an u n stab le su rface m ay cau se it to fall. Continued on next page 594157 Rev C Explorer Wireless Keyboard User’s Guide...
  • Page 6 • Operation is not normal (the instructions describe the proper operation). Upon completion of any service or repairs to this keyboard, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition. Explorer Wireless Keyboard User’s Guide 594157 Rev C...

  • Page 7: Proper Use Of Keyboard

    The following guidelines may reduce straining your arms, wrists, and hands when typing. Please also review illustrations in this section for correct and incorrect positioning of arms, wrists, and hands. Continued on next page 594157 Rev C Explorer Wireless Keyboard User’s Guide...
  • Page 8 • Avoid bending, arching, or angling your wrists. • Use light touch when pressing the keyboard keys. INCORRECT CORRECT Wrists Arched Wrists Leveled T6781 Continued on next page Explorer Wireless Keyboard User’s Guide 594157 Rev C...
  • Page 9 Continued Posture Adopt an upright, relaxed working posture and avoid slouch- ing forward or leaning too far backward. Your forearms and wrists should be parallel with the floor as illustrated. Posture T6779 594157 Rev C Explorer Wireless Keyboard User’s Guide...

  • Page 10: Quick Reference

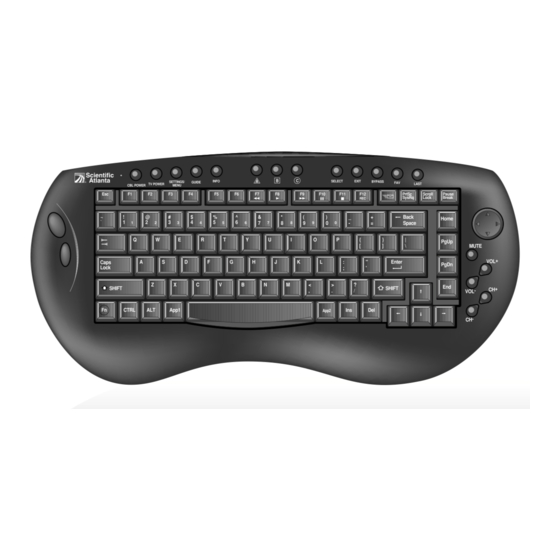

    F9/VOD Fast Forward Key F10/VOD Pause Key Favorite Key Last Key F11/VOD Stop Key Pointer Device F12/Record Hot Key Mute Key Email Hot Key Volume Control Keys T6783 Continued on next page Explorer Wireless Keyboard User’s Guide 594157 Rev C...

  • Page 11: Explorer 2000 Terminal Front Panel

    Quick Reference, Continued EXPLORER 2000 Terminal Front Panel The EXPLORER 2000 terminal front panel provides basic display indicators and functional buttons. You can use the front panel buttons as an alternative to using general remote control and keyboard functions. The indicators define the current operating status and channel selected.

  • Page 12: Buttons And Keys

    Most of the keys and buttons mirror the functions on your Model E2050-ER1 Remote Control. Slight adjustments in appearance may have been made. Power Keyboard Function Turns Explorer 2000 terminal power on and off Sound Keyboard Function Mutes sound Adjusts volume...
  • Page 13 Until that time, please use the arrow keys to move through the interactive screens. Returns to program Displays interactive program guide Chooses interactive screen item Displays program settings Continued on next page 594157 Rev C Explorer Wireless Keyboard User’s Guide...
  • Page 14 Keyboard Function Rewinds VOD Plays VOD Fast Forwards VOD Pauses VOD Stops VOD Enter channel numbers and Personal Identification Numbers (PIN) Continued on next page Explorer Wireless Keyboard User’s Guide 594157 Rev C...
  • Page 15 Press this key to control the following function. Keyboard Function • Controls the BYPASS option (See EXPLORER 2000 Digital Home Communication Terminal User’s Installation Guide, part number 565069) Continued on next page 594157 Rev C Explorer Wireless Keyboard User’s Guide...
  • Page 16 Note: The Pointer Device is not supported at this time, but will be supported in a later system release. Please contact your local cable provider for release dates. Email Hot Key • Allows user to open the Email application Explorer Wireless Keyboard User’s Guide 594157 Rev C...

  • Page 17: Programming The Wireless Keyboard

    1. Locate your TV brand in the TV setup code tables on the pages that follow. If your TV brand is not listed, see Searching the Code Library. 2. Point the keyboard away from the EXPLORER 2000 terminal, the TV, and the VCR. 3. On your keyboard, press and hold at the same time until the LED on the Wireless Keyboard blinks twice.

  • Page 18: Searching The Code Library

    TV is turned on before you program the Wireless Keyboard. To search the code library, complete the following procedure. 1. Point the keyboard at the EXPLORER 2000 terminal. 2. Press and hold down at the same time until the LED on the Wireless Keyboard blinks twice.

  • Page 19: Identifying Programmed Codes

    LED blinks. To identify the TV programming code, complete the following procedure. 1. Point the keyboard away from the EXPLORER 2000 terminal and the TV. 2. Press and hold at the same time until the LED on the keyboard blinks twice.

  • Page 20: Programming For Volume Control

    Continued Programming for Volume Control You can program the Wireless Keyboard to control the volume and mute functions for either the TV or the EXPLORER 2000 terminal. To program your keyboard, complete the following procedure. 1. Point the keyboard away from the EXPLORER 2000 terminal and the TV.

  • Page 21: Keyboard Setup Codes

    038, 052, 002, 003, 092, 034, 046, 050, 035, 036, 004, 005, 061, 008, 015, 082, 102, 103, 006, 008, 135, 136, 103 111, 125, 119, 112 Daytron 001, 006, 020, 113 Continued on next page 594157 Rev C Explorer Wireless Keyboard User’s Guide...
  • Page 22 077, 074, 101, 063, 142, 143 Philips 088, 001, 061, 006, 090, 012, 098, 092, 082, 020, 005, 057, Soundesign 001, 050, 012, 006, 019 118, 119, 137 Spectricon 006, 050 Continued on next page Explorer Wireless Keyboard User’s Guide 594157 Rev C...
  • Page 23 088, 001, 090, 006, 036, 017, 018, 089, 080, 050, 039, 023, Telefunken 096, 097 078, 064, 055, 103, 112, 113, Telernet Yamaha 001, 006, 090 Zenith 076, 084, 006, 109, 110 594157 Rev C Explorer Wireless Keyboard User’s Guide...

  • Page 24: Troubleshooting

    LED stays on for work more than 10 seconds, replace batteries. • Point the keyboard directly toward the EXPLORER 2000 terminal when the keyboard is in use. • Make sure that there are no obstructions blocking the signal path from the keyboard to the TV, such as a table.

  • Page 25: Replacing The Wireless Keyboard Batteries

    Wireless Keyboard and snap the back of the cover into place. Important: If any keyboard key is pressed and the LED stays on for more than 10 seconds, replace the batteries. 594157 Rev C Explorer Wireless Keyboard User’s Guide...

  • Page 26: Notices

    Notices Trademarks Scientific-Atlanta, Scientific-Atlanta ARCs Logo, and EXPLORER are registered trademarks of Scientific-Atlanta, Inc. Other trademarks listed herein are the property of their respec- tive owners. Documentation Copyright Notice © 1999 Scientific-Atlanta, Inc. All rights reserved. Information in this document is subject to change without notice.

  • Page 27: Regulatory Notices

    “This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.” “Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada.” 594157 Rev C Explorer Wireless Keyboard User’s Guide...
  • Page 28 United States: Scientific-Atlanta, Inc., 4261 Communications Drive, P.O. Box 6850, Norcross, GA 30091-6850; Tel: 770-903-5000; TWX: 810-799-4912; Telex: 0542898 Europe: Scientific-Atlanta, Inc., Home Park Estate, Kings Langley, Herts WD4 8LZ, England; Tel: +44-1-923-266133; Telex: 912044; Fax: +44-1-923-269018 Asia-Pacific: Scientific-Atlanta (HK) Limited, Suite 56-57, 5/F New Henry House, 10 Ice House Street, Central, ®...
