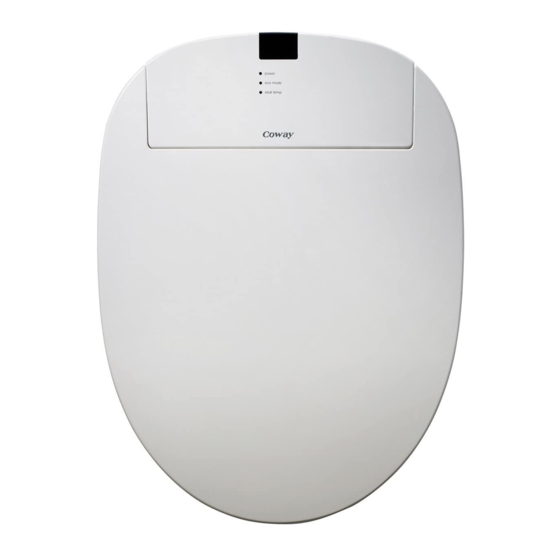

Coway BA13-AR Owner's Instructions Manual
  1. Manuals
  2. Brands
  3. Coway Manuals
  4. Plumbing Product
  5. BA13-AR
  6. Owner's instructions manual

Coway BA13-AR Owner's Instructions Manual

Bidet
Hide thumbs Also See for BA13-AR:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Coway BA13-AR

Summary of Contents for Coway BA13-AR

  • Page 2: Table Of Contents

    Product features Ba13-ar/ae/Br/Be common functions 1. Instant warm water system the water is instantly heated when using the rear and front cleaning functions so that you can immediately use water at your desired temperature. 2. air+ function the water stream with air bubbles provides softer, stronger cleansing.

  • Page 3: Safety Precautions

    • U nplug the system if it is not being used for a long period of time. Failing to do so may result in electric shock or fire. • Do not attempt to repair or modify the power cord. This may result in electric shock or fire. • I f the power cord is damaged, do not replace the cord yourself. Call a Coway Service Center to have it replaced. failing to do so may result in electric shock or fire. save tHese InstructIons...
  • Page 4 ※ I f foreign material enters the product, pull the power plug out of the electrical outlet, turn off the main water valve, and call the coway service center. • Do not drop the remote control. This may result in product damage or a malfunction. • D o not separate the seat from the bidet. This may result in electric shock, fire, or product damage.
  • Page 5 safety PrecautIons WarnIng: • D o not operate or store the unit in locations where flammable or combustible materials are used. this may result in electric shock or fire. • U se main water supply as the supplied water. Industrial water or gray water, if used as supply water may cause skin damage or disease. • Do not block the warm air outlet with your hand. This may result in burns or fire. • P lease turn off the main water supply valve when cleaning the filter. Failing to do so may result in electric shock or product damage. • F or children, the elderly, and those who cannot adjust the temperature themselves or have sensitive skin, set the warm water temperature and seat temperature to ‘l.’ failing to do so may result in low temperature burns.
  • Page 6 safety PrecautIons cautIon: • D o not connect the main water to the hot water pipe. This may result in a malfunction or accident (Make sure to connect it to the cold main water supply pipe). • A fter the installation, make sure to check the water supply connections for leaks. Rubber packing should be applied to the connection hose. • D o not install the air purifier in a location exposed to direct sunlight. This may result in deformation or discoloration. • D o not open/close the seat cover using excessive force or lean on the cover. This may result in product damage or a malfunction or physical injury. ※ The seat cover closes/opens slowly using the ‘soft opening/closing’ method. • E xercise caution that urine does not come into contact with the nozzles, air dryer outlet, or the outside surface of the product. failing to do so may result in bad odors or malfunctions. • I f the product will not be used for a long period of time, pull the power plug out of the electrical outlet, close the main water supply valve, and drain the water in the water tank.
  • Page 7 safety PrecautIons groundIng InstructIons • T his product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape route (wire) for the electric current. This product is equipped with a cord consisting of a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. the improper use of the grounding plug can result in electric shock. • I f the repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. the insulation wire with an outer green surface with or without yellow stripes is the grounding wire.

  • Page 8: Part Names

    Part naMes dimensions the bidet has the following dimensions. do not install the bidet when the dimensions of the bidet differ from those of the toilet. >> Ba13-ar/Br (round shape) 202 mm 382 mm 411 mm (7.9 inch) (15 inch) (16.2 inch)

  • Page 9: Front / Rear View

    T-shaped connector ir sensor Power cord nozzle Product sticker seat sensor drain plug bidet seat button water tank hose installation plate bidet hose MESH filter main water supply pipe remote control Ba13-ar/ae Ba13-Br/Be BA13-A BA13-A BA13-B BA13-B...

  • Page 10: Installation Parts

    Part naMes Installation parts 2 fixing screws bidet hose 2 fixing rubbers remote control wall mount (including the sticker for 2 fixing washers attachment) 2 fixing nuts 2 screws installation plate 2 anchors 2 fixing sliders 3 batteries (AAA) rubber packing T-shaped connector...

  • Page 11: Check Before Using Your Product

    cHeck Before usIng your Product Please keep in mind! connect the power. Plug the power cord into the electrical outlet. the bidet only works normally when the electricity is connected.  T his product is for 120 V~ / 60 Hz only. make sure to connect the power plug to a grounded electrical outlet tips (120 V~ / 60 Hz) dedicated to the product.

  • Page 12: Configuring A Special Mode

    cHeck Before usIng your Product Configuring a special mode selecting/cancelling silent mode 1. Press and hold down the ‘Power’ and ‘rear cleansing’ buttons simultaneously for at least 1 second when the power cord is plugged into the electrical outlet (an alarm sound is generated). 2.

  • Page 13: Checking The Control Panel

    cHeckIng tHe controL PaneL ※ Y ou can use the basic functions such as rear cleansing and nozzle cleaning from the bidet’s control panel without using the remote control. display control panel display remote control signal Power indicator receiver this indicator is turned on when the this receives the signals bidet power is turned on. from the remote control. this indicator is turned off when bidet eco mode is activated.
  • Page 14 ‘front’ button ‘stop’ button ‘dry’ button ‘move’ button ‘water Pressure/dry temp.’ button ‘nozzle Position’ button ‘water temp.’ indicator ‘seat temp.’ indicator ‘wide’ button ‘wide’ indicator ‘water temp.’ button ‘seat temp.’ button ‘sterilize’ button ‘deodorize’ button BA13-B For the BA13-AR/AE, the ‘Wide’, ‘Sterilize’ and ‘deodorize’ are excluded.
  • Page 15 cHeckIng tHe controL PaneL display ‘Water temp.’ indicator whenever the ‘water temp.’ button is remote control signal transmitter pressed, the temperature control indicator transmits the signal when a remote control cycles through the following order: button is pressed. L(Blue) M(Pink) H(Red) off. ‘seat temp.’ indicator ‘Wide’...

  • Page 16: Using Your Bidet

    usIng your BIdet using the rear nozzle using the rear nozzle 1. sit down on the seat and press the ‘rear cleansing’ button on the operation part. 2. self-cleaning for the rear cleansing nozzle is performed, removing the cold water remaining inside the nozzle before the water stream is ejected so that the water can be set to a desired temperature for cleansing.

  • Page 17: Using The Front Nozzle

    usIng your BIdet using the front nozzle using the front nozzle 1. sit down on the seat and press the ‘front cleansing’ button on the operation part. 2. self-cleaning for the front cleansing nozzle is performed, removing the cold water remaining inside the nozzle before the water stream is ejected so that the water can be set to a desired temperature for cleansing.

  • Page 18: Installing Your Bidet

    InstaLLIng your BIdet removing existing toilet seat 1. remove the existing toilet seat ① and seat cover ② by removing the fixing nuts. Keep the removed toilet seat in a shaded location to prevent it from being damaged. tips Installing the product as the bidet should be installed on the toilet, ensure that water is not splashed onto the bidet.

  • Page 19: Installing The Product

    InstaLLIng your BIdet Installing the product 3. Place the fixing slider over the installation plate on the toilet, insert the fixing bolts, and fasten the nuts so that the installation plate is fixed. 4. align the back of the bidet to the installation plate and push the bidet backwards while pressing the button to the left of the bidet.

  • Page 20: Installing The Remote Control Wall Mount

    InstaLLIng your BIdet Installing the remote control wall mount make sure to install the remote control wall mount on the wall using the supplied screws. failing to do so may result in the product falling and being damaged. if the bathroom has 3 sides in a black or similar color, use the remote control while fixing tips it to the wall holder.

  • Page 21: Cleaning And Maintaining Your Bidet

    cLeanIng and MaIntaInIng your BIdet cleaning the nozzles if excessive force is exerted on the nozzles when cleaning them, the nozzles may no longer work properly or break. Hold the nozzles lightly when cleaning them. When cleaning the nozzles, Nozzle cleaning water is emitted. (However, when main tips water supply is not supplied (main water supply stop status), no nozzle cleaning water is emitted and only the nozzle is extended). 1. Press the ‘nozzle cleaning’ button on the operation part to the right of the bidet.

  • Page 22: Removing The Product

    cLeanIng and MaIntaInIng your BIdet removing the product 1. unplug the power cord from the electrical outlet. 2. close the main water supply valve. 3. Pull the product forwards by holding both sides of the product while pressing the button at the bottom left of the product, to separate the product from the installation plate.
  • Page 23 cLeanIng and MaIntaInIng your BIdet Cleaning the MESH filter 3. clean the MesH filter by shaking it under flowing water. - R emoving foreign substances from the MESH filter with a toothbrush is more effective. - Do not clean the MESH filter excessively, as it may damage the MESH. 4. reinstall the cleaned MesH filter into the product. - C heck that the MESH filter is installed correctly. - I f you open the main water supply valve when the MESH filter is not completely installed, water leakage may occur.

  • Page 24: Specifications

    Product name coway bidet model no. BA13-AR/AE/BR/BE standard power voltage 120 V~ 60 Hz Power consumption 1 200 w supply water pressure 0.11 MPa - 0.68 MPa BA13-AR/BR 382 mm (Width) × 493 mm (Depth) × 144 mm (Height) dimensions BA13-AE/BE 382 mm (Width) × 528 mm (Depth) × 144 mm (Height) weight 6 kg - 6.5 kg rear cleansing Maximum 0.5 L/min, automatic nozzle self-cleaning function front cleansing Maximum 0.5 L/min, automatic nozzle self-cleaning function standard time rear cleansing 1 minute, front cleansing 1 minute, drying 2 minutes...

  • Page 25: Troubleshooting

    trouBLesHootIng the bidet may operate abnormally due to minor causes not because of a product malfunction but because the user is unfamiliar with using the product. in such a case, problems can be easily solved even without the help of the service center by checking the following. if you cannot solve the problem after checking the following items, please call the service center.

  • Page 26: Warranty Card

    Product THE ABOVE LIMITATION MAY NOT APPLY TO used for an application specified by coway for you. coway does not autHoriZe any the Product and applied in strict accordance with PERSON INCLUDING ITS REPRESENTATIVES,...
  • Page 27 Limitations on Implied Warranties: Waiver: any implied warranty of merchantability or fitness for coway’s failure at any time to enforce or rely upon a particular purpose or use, shall be limited to the any of the terms or conditions stated herein shall not duration of the foregoing express written warranty.
  • Page 28 1210964 Made in Korea www.coway.com...
