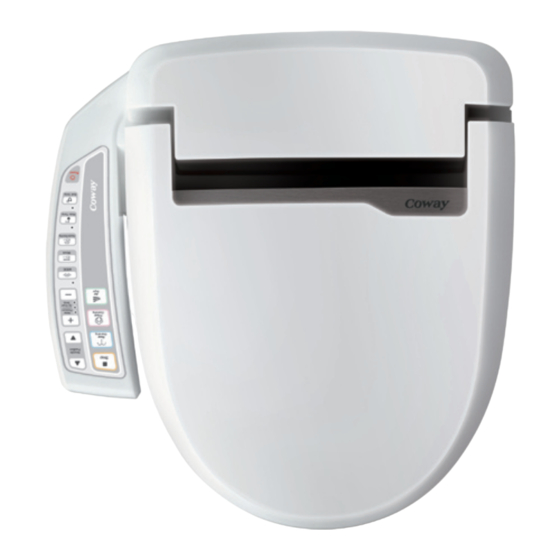

- Page 1 Bidet BA07-R/E • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use. • Warranty card is included in this User’s Manual.
-
Page 2: Self-Diagnostic Function
FEATURES 1. WIDE function Users can select the degree of the cleansing water spreading directly as the wanted step from the strong force of the flowing water to the softly spreading water. 2. Special function for the customer’s convenience Power saving mode : Helps lower the utilities bill. Seat sensor lock mode : In seat sensor lock mode, as rear cleansing, front cleansing, and air dryer will not work without the user sitting on the seat, it prevents the operating malfunctions due... -
Page 3: Table Of Contents
DEAR CUSTOMERS Coway Bidet Thank you for using our Please read this User’s Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the User’s Manual. As this manual contains the product warranty card, please keep it in a safe place. -
Page 4: Safety Information
SAFETY INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. If not observed, serious injury or even death may Danger occur as a result. Electrical Safety After drying completely If not observed, serious physical injury or property... -
Page 5: Installation Safety
In the case the power cord is damaged, do not replace the cord yourself. Call Service Center to have it replaced. Otherwise, electric shock or fire may occur as a result. Installation Safety Do not install near a heating device. Otherwise, fire may occur as a result. - Page 6 SAFETY INFORMATION Operation Safety Do not place an electric heater near the product or dispose of any flamed material such as lit cigarettes in the toilet. Otherwise, fire or product deformation may occur as a result. Do not use the product where excessive moisture exists or do not splash water on the product.
-
Page 7: Others
Coway Service Center. Do not disassemble, repair, or modify the product at discretion. Otherwise, electric shock, fire, or product damage may occur as a result. -
Page 8: Parts Name
PARTS NAME Dimensions The toilet dimensions must be within those shown below. Do not install this product on a toilet that does not meet these dimensional requirements. Round type Elongate type Distance of fixing hall 197.2 mm (7.76 inch) 133.3 mm 376.7 mm (5.25 inch) (14.8 inch) - Page 9 Front Body Water tank hose Tap water pipe Bidet hose T-shaped connector Main water supply valve Rear Power plug Product sticker Drain hole Nano silver ceramic MF filter Seat cover Precautions sticker Bidet seat Nozzle Indication part/ operation part...
-
Page 10: Installation Material
PARTS NAME Installation Material 2 pc of Fixing screws 2 pc of Fixing rubbers 2 pc of Fixing washers 2 pc of Fixing nuts Grounding This product must be grounded, in the event of an electrical short circus, ground reduces the risk of electrical hazards by providing an escape wire for the electric current. -
Page 11: Keep In Mind
KEEP IN MIND Connect the power. Turn on by connecting the power plug to the electrical outlet and pressing the power selection button on the control panel. The bidet works normally only when the electricity is connected. This product is for 120 V~ 60 Hz only. Please connect the power plug to a dedicated grounded Tips electrical outlet for 120 V~ 60 Hz . -
Page 12: After Installation
PREPARATIONS This product is for 120 V~ 60 Hz only. Please connect the power plug to a dedicated grounded Tips electrical outlet for 120 V~ 60 Hz . After installation Please check whether the water leaks or not in the connection part of the T-shaped connection pipe. -
Page 13: Operation/Indication Part
OPERATION/INDICATION PART Indication Part/Operation Part Indication part Stop button Rear cleansing function selection button Front cleansing function selection button Water pressure/air dryer temperature indicator Air dryer function selection button WIDE function selection indicator Warm water temperature adjustment indicator Seat temperature adjustment indicator Operation part Nozzle position button... - Page 14 OPERATION/INDICATION PART Indication Part Water pressure/air dryer temperature adjustment indicator If you press the water pressure/the air dryer temperature adjustment button, the indicator is turned on in the step1step2step3 order. It is used as the water pressure adjustment indicator when you operate the rear cleansing/front ...
- Page 15 Operation Part WIDE function selection button Use it if you want to control the water ejection range when you use the cleansing function. You can select the range of the force of the flowing water of 3 steps as straight linestep1step2 using wide function selection button.
-
Page 16: How To Use
HOW TO USE For Rear Cleansing Rear cleansing Sit on the seat and press the rear cleansing function selection button on the remote control. The cleansing water is ejected for about 1 minute and then automatically stopped. An automatic nozzle cleaning is performed for about 5 seconds after cleansing when the nozzle retracts itself. -
Page 17: For Front Cleansing
For Front Cleansing Front cleansing Sit on the seat and press the front cleansing function selection button on the remote control. The cleansing water is ejected for about 1 minute and then automatically stopped. An automatic nozzle cleaning is performed for about 5 seconds after cleansing when the nozzle retracts itself. -
Page 18: Installation
filter and hoses of the bidet may be damaged). To maintain the optimal product performance, consult a Coway engineer for detailed installation methods. There may be some water remaining inside the filter which was used to test the Tips product during the inspection process at the factory. -
Page 19: Uninstallation Existing Toilet Seat
Uninstallation Existing Toilet Seat 1. Remove the fixing nuts of the existing seat and separate the existing toilet seat Keep the removed seat and seat cover in a shaded place. Installation the Product 1. Turn off the main water supply valve the existing water tank hose 2. - Page 20 INSTALLATION Installation the Product 5. Please install by adjusting the rear of the body to the fixing plates and pushing the product back. 6. Connect the T-shaped connector and the connected bidet hose to the bidet body. Please shorten the bidet hose as soon as possible. If the bidet hose is long, it may cause noises.
-
Page 21: Cleaning Method
CLEANING METHOD Nozzles If excessive force is exerted on the nozzle when cleaning it, the nozzle may not be working properly or be broken. Hold the nozzle lightly to clean it. When you clean the nozzle, the nozzle cleaning water is sprayed (But the nozzle Tips cleaning water doesn’t be sprayed and only nozzle is extended in the feed water stop status). -
Page 22: Uninstallation The Product
CLEANING METHOD Uninstallation the Product 1. Unplug the power plug from the outlet. 2. Close the main water supply valve. 3. Place a big wash basin (1 L or more) under the rear drain hole of the bidet. 4. Turn the drain stopper pull out it in the direction of the arrow Please assemble the drain stopper to the product again after draining. -
Page 23: Maintenance
Please check the following items frequently to maintain the status of the bidet at its best. Freezing protection function Coway bidet has a built-in anti-freezing program. When the water temperature of the water tank falls below 5 ºC, the heater automatically operates to prevent freezing burst. -
Page 24: Filter Replacement Method
FILTER REPLACEMENT METHOD 1. Please unplug the power plug and turn off the main water supply valve. 2. Separate the MF filter from the filter holder by rotating the MF filter to replace to the arrow direction. 3. Please rotate and insert new MF filter to the filter holder like the next arrow direction to the end not to be shaken. -
Page 25: Troubleshooting
TROUBLESHOOTING The bidet may operate abnormally due to the minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items. - Page 26 TROUBLESHOOTING Symptom The air from the air dryer is cold. Water leaks in areas other than the nozzles. Water comes out while the bidet is not in use. If you plug in the power cord, the rear cleansing nozzle come out and go in.
-
Page 27: Specification
SPECIFICATION Product name Model name Power rating Power consumption Power cord Water pressure BA07-R Product dimensions BA07-E Weight (NET) Rear cleansing Front cleansing Timing Water pressure control Warm water Wide (spray range control) cleansing device Warm water temperature adjustment Power consumption of cistern heater... - Page 28 MEMO...
- Page 29 MEMO...
-
Page 30: Warranty Card
This limited warranty applies only to Product used for an application specified by COWAY for the Product and applied in strict accordance with COWAY published specifications in effect at the time of application. IF PRODUCT IS... - Page 31 Coway or the manufacturer of the product or that are not covered by the manufacturer’s warranty;...
- Page 32 MADE IN KOREA 1014692...
