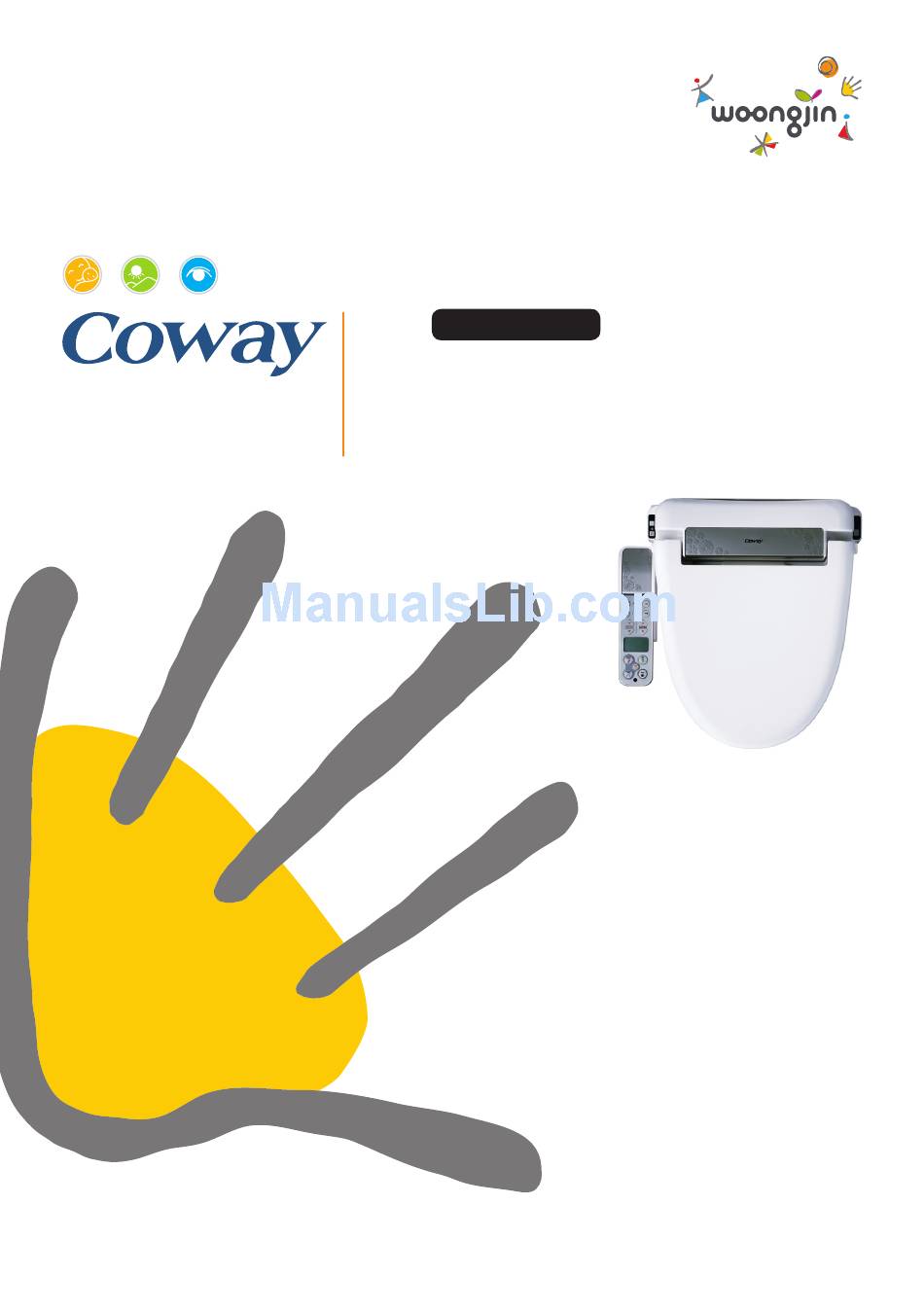

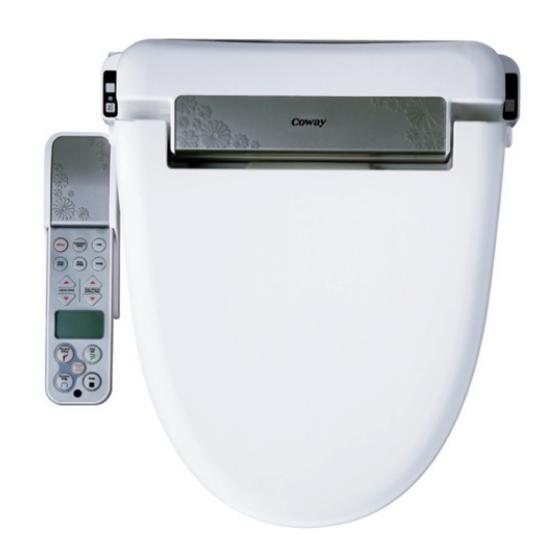

- Page 1 Bidet BA08-AR/AE • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use. • Warranty card is included in this User’s Manual.
- Page 2 FEATURES 1. WIDE function Users can select the degree of the cleansing water spreading directly as the wanted step from the strong force of the flowing water to the softly spreading water. 2. Air + function You can feel more soft and strong cleansing power as it is an air mixed water type. 3. Special function for the customer’s convenience Power saving mode : If you don’t operate the bidet body/ remote control button for 30 minutes without sensing the human body on the seat sensor, the body power selection indicator is turned off , and as the water/seat temperature is set as “Low” status, the amount of the power consumption is decreased. Remote control power saving mode : If you don’t operate the remote control button for 30 minutes, as the remote control indicator window is turned off, the amount of the battery consumption of the remote control is decreased. Silent mode : The bell sound can be turned on/off according to customer preference. Seat sensor lock mode : As rear cleansing/front cleansing/air dryer will not work without the user sitting on the seat, it prevents the operating malfunctions due to children’s unintended button inputs.
-
Page 3: Table Of Contents
DEAR CUSTOMERS Coway Bidet Thank you for using our Please read this User’s Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the User’s Manual. As this manual contains the product warranty card, please keep it in a safe place. CONTENTS FOR INFORMATION HOW TO USE SAFETy iNFORmATiON . . . . . . . . . . . . . . . . . . . 4 KEEP iN miND . -
Page 4: Safety Information
SAFETy INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. If not observed, If not observed, If not observed, minor serious injury or serious physical physical injury or even death may injury or property property damage Danger Warning Caution occur as a result. damage may occur may occur as a result. as a result. Electrical Safety Do not use a damaged Please connect the power power cord or plug, and plug to a dedicated loose outlet . -
Page 5: Installation Safety
Danger Warning Caution When you don’t use for a Do not attempt to repair or long time, close the main modify the power cord at water supply valve and your discretion . unplug . Otherwise, electric shock or fire may occur as a result. Otherwise, electric shock or fire may occur as a result. in the case the power cord is damaged, do not replace the cord yourself . -
Page 6: Operation Safety
SAFETy INFORMATION Operation Safety if the steam cleaner Do not insert a wire or sharp produces a strange noise, object in any gap of the product flaming smell, or smoke, or the warm air outlet . immediately unplug from Otherwise, electric shock, fire, or the electrical outlet and call product damage may occur as a result. -
Page 7: Others
. Otherwise, electric shock or fire may occur as a result. In the case foreign material gets inside the product, pull out the power plug from the electrical outlet, turn off the main water valve, and call the Coway Service Center. Do not disassemble, repair, Don’t pull out the bidet or modify the product at hose or the connection hose discretion . severely . Otherwise, electric shock, fire, or Otherwise, leaks or malfunction product damage may occur as may occur as a result. -
Page 8: Parts Name
PARTS NAME Dimensions The toilet dimensions must be within those shown below. Do not install this product on a toilet that does not meet these dimensional requirements. 197.2 mm 400 mm 525 mm (7.76 inch) (15.7 inch) (20.7 inch) Round type 125 mm 375 mm (5 inch) (14.8 inch) 199 mm 402.5 mm 525 mm (7.83 inch) (15.9 inch) (20.7 inch) Elongate type 125 mm 405 mm (5 inch) - Page 9 Front Seat cover Precautions sticker Nozzle Main water supply pipe Bidet seat T-shaped connector Main water supply valve Indication part/ operation part Bidet hose Remote control mount Rear Power cord Product sticker Drain hole Nano silver ceramic MF filter...
- Page 10 PARTS NAME Installation Material 2 fixing screws Bidet hose 2 fixing rubbers T-shaped connector 2 fixing washers Rubber packing 2 fixing nuts Filter fixing 2 fixing sliders stopper Nano silver 2 batteries Filer clip Screw (Ø 6) ceramic MF filter (AA size) ...
-
Page 11: Keep In Mind
KEEP IN MIND Connect the power . Turn on the product by connecting the power plug to the electrical outlet and pressing the power selection button on the control panel. The bidet works normally only when the electricity is connected. This product is for 120 V~, 60 Hz only. Please connect the power plug to a dedicated grounded Tips electrical outlet for 120 V~, 60 Hz. Open the main water supply valve . The main water must be supplied to operate the bidet normally. Check whether the product is in power saving mode before use . When you set the bidet body power saving mode, if there aren’t a seat sensor sensing and a button operation for 30 minutes, a warm water/seat temperature operates as ‘Low’ status and the power save mode is kept. In the power save mode, the power selection indicator is turned off. - Page 12 KEEP IN MIND Setting/canceling silent mode 1) Turn on the remote control by pressing the power selection button on the remote control with pulling out the power plug, and plug in the power plug with pressing the rear cleansing function selection button of the bidet body (Alarm). 2) Press the stop button on the remote control and select the desired status. The alarm rings 1 time (ding) : It means the release of the silent mode. The alarm rings 2 times (ding ding) : It means that the silent mode was set. 3) When you select the wanted status and press the air dryer function selection button on the remote control, the selected setting is saved and it is switched to the waiting status (The alarm rings 3 times (ding ding ding)). Setting/canceling remote control power saving mode 1) With the remote control turned on, press and hold the nozzle position button for 5 seconds or more (The LCD screen blink). 2) When the nozzle position indicator is lightened on LCD screen, it means that the remote control power saving mode is set, and when it is turned off, it means that mode is released (See the following figure). 3) When you press any button on the remote control, it is switched to the waiting status with saving the setting. With power saving mode on, the batteries on the remote control last longer. The product is supplied with the remote control power saving mode set. Power saving mode set screen Power saving mode canceled screen When you press the power selection button on the remote control, the powers on...
-
Page 13: Preparations
PREPARATIONS This product is for 120 V~, 60 Hz only . Please connect the power plug to a dedicated grounded Tips electrical outlet for 120 V~, 60 Hz. After installation Check if there is a leak in the main water supply valve and the connection hose. You must insert the rubber packing between the T-shaped connection pipe and the main water supply valve. Periodic filter replacement It is important to replace the filter periodically for the clean rinsing. If the filter is overused beyond its service life, the filter performance deteriorates, resulting in cleansing water that is not filtered properly. Please keep the filter replacement cycle. Filter replacement cycle : Every 4 months. if the bidet has not been used for a long time When you don’t use the product for a long time, use it after replacing the filter and cleaning the products such as an air dryer outlet, a nozzle, seat according to each cleaning methods (See P.26). -
Page 14: Operation/Indication Part
OPERATION/INDICATION PART Remote Control Indication Part/Operation Part Indication part Operation part Stop button Remote control signal transmitting part Rear cleansing function selection button WiDE function selection button Air dryer function selection button Front cleansing function Nozzle position indicator selection button Seat temperature adjustment indicator Signal transmitting WiDE function indicator... - Page 15 Indication part Remote control signal transmitting part It is the transmitting window that transmits signals when the remote control buttons are pressed. Nozzle position indicator If you press the nozzle position button, the lamp is turned on in 5 steps. Seat temperature adjustment indicator When you press the seat temperature adjustment button, you can adjust the indicator (L M H Off ). WIDE function indicator When you press the WIDE function selection button, the indicator is turned on (Straight line step1 step2). Air + function selection indicator When you press Air + function selection button, the indicator is turned on. Water pressure/air dryer temperature indicator If you press the water pressure/the air dryer temperature adjustment button, the temperature lamp is turned on in the step1 step2 step3 order. It is used as the water pressure adjustment indicator when you operate the front cleansing/rear cleansing function, and it is used as the water temperature adjustment indicator when you operate the air dryer function.
- Page 16 OPERATION/INDICATION PART Operation Part Stop button Stops all operating functions. Rear cleansing function selection button Use it to select the desired rear cleansing function. WIDE function selection button Use it if you want to control the water spraying range when you use the cleansing functions. You can select the range of the force of the flowing water of 3 steps in straight line step1 step2 order using WIDE function selection button. Whenever you press the button, the indicator of the selected current spraying range is turned on. Air dryer function selection button Use it to select the air dryer function. It helps dry the wet after using the front cleansing/rear cleansing function. Front cleansing function selection button Use it to select the cleansing function for woman. Water pressure/air dryer temperature adjustment button If you press the water pressure/the air dryer temperature adjustment button, the temperature lamp is turned on in the step1 step2 step3 order and 3 steps water pressure/air dryer adjustment can be performed.
- Page 17 Product Indication Part/Operation Part Remote control signal Remote control signal receiving part receiving part Power selection button Power selection indicator Rear cleansing function Nozzle cleaning button selection button Indication Part Remote control signal receiving part It receives the signals from the remote control. Power selection indicator When the power is turned on, the indicator is lightened. When you heat the water, the power selection indicator is turned on and off.
-
Page 18: How To Use
HOW TO USE For Rear Cleansing Rear cleansing Sit on the seat and press the rear cleansing function selection button on the remote control. The rear cleansing nozzle will remove the cold water remaining Inside the nozzle before the water stream is ejected so that you can have rear cleansing with water set to a desired temperature. The cleansing water is ejected for about 1 minute and then automatically stopped. An automatic nozzle cleaning is performed for about 5 seconds after cleansing when the nozzle retracts itself. Adjust the nozzle position by pressing the nozzle position button. Press the wide function selection button to adjust the desired water ejection range. You can select the air mixed water type by pressing Air + function selection button. If the rear cleansing function selection button is pressed again while in cleansing operation, additional rear cleansing starts again for another 1 minute. While in cleansing, users can adjust the water temperature, water pressure, and nozzle position according to their preference. move Press the move function selection button on the remote control. The nozzle moves back and forth, providing a wider range of cleansing. It will be worked continuously while the cleansing function is operated. You can adjust the nozzle position by pressing the nozzle position button. -
Page 19: For Front Cleansing
For Front Cleansing Front cleansing Sit on the seat and press the front cleansing function selection button on the remote control. The front cleansing nozzle will remove the cold water remaining inside the nozzle before the water stream is ejected so that you can have front cleansing with water set to a desired temperature. The cleansing water is ejected for about 1 minute and then automatically stopped. An automatic nozzle cleaning is performed for about 5 seconds after cleansing when the nozzle retracts itself. Adjust the nozzle position by pressing the nozzle position button. Press the wide function selection button to adjust the desired water ejection range. You can select the air mixed water type by pressing Air + function selection button. If the front cleansing function selection button is pressed again while in cleansing operation, additional front cleansing starts again for another 1 minute. While in cleansing, users can adjust the water temperature, water pressure, and nozzle position according to their preference. move Press the move function selection button on the remote control. The nozzle moves back and forth, providing a wider range of cleansing. It will be worked continuously while the cleansing function is operated. You can adjust the nozzle position by pressing the nozzle position button. To stop the move function, press the move function selection button again. -
Page 20: Installation
INSTALLATION installing the product Tighten the fixing nuts firmly so that the bidet body won’t be shaky on the toilet. Product installation place As the bidet should be installed on the toilet, take caution not to have water splashed on the bidet. After installation Keep the removed existing toilet seat in a shaded place to prevent its damage. Keep the existing toilet seat in the shaded place Cold water pipe Please connect to the cold water pipe (If the product is connected to the warm water pipe, the filter and hose may be damaged). Warm water To secure the optimum performance of the product, consult with an installation expert for further installation. There may be some water remaining inside the filter which was used to test the Tips product during the inspection process at the factory. -
Page 21: Uninstallation Existing Toilet Seat
Uninstallation Existing Toilet Seat 1 . Remove the fixing nuts of the existing seat and separate the existing toilet seat the seat cover Keep the removed seat and the removed seat cover in a shaded place. Installation the Product 1 . Turn off the main water supply valve on the water pipe and separate the existing water tank hose 2 . - Page 22 INSTALLATION Installation the Product 5 . Push fixing screw into the fixing slider . And slide the fixing slider with fixing screw to be hooked in the installation boad . 6 . insert fixing screw into the holes and pushfixing rubber, fixing washer into the fixing screw to prevent from wobbling of the main body .
-
Page 23: Installation The Remote Control Mount
This installation method was explained on the basis of the case installed the remote control mount for the right hand. After removing the fixing screw and separating the product form the toilet, separate Tips and install the remote control mount. Installation the Remote Control Mount 1 . Remove the fixing screw (Ø 6) that fixes the remote control mount on the bottom of the bidet . 2 . Remove the remote control mount from the bidet . 3 . - Page 24 INSTALLATION Installation the Remote Control Mount 5 . insert the rotating axis in the opposite side after pulling out it from the remote control mount . Insert the axis with the thicker part facing the back of the remote control mount. 6 . insert the cover-axis in the hole on the opposite side of the rotating axis .
-
Page 25: Cleaning Method
CLEANING METHOD Nozzles If excessive force is exerted on the nozzle when cleaning it, the nozzle may not be working properly or be broken. Hold the nozzle lightly to clean it. When you clean the nozzle, the nozzle cleaning water is sprayed (But the nozzle Tips cleaning water doesn’t be sprayed and only nozzle is extended in the feed water stop status). 1 . Press nozzle cleaning button on the right side of the bidet . The nozzle cleaning water is sprayed and the front cleansing nozzle sticks out to its full length. Clean the front cleansing nozzle. 2 . Press nozzle cleaning button one more . - The nozzle cleaning water is sprayed and the front cleansing nozzle retracts itself, and the rear cleansing nozzle sticks out to its full length. -
Page 26: Uninstallation The Product
CLEANING METHOD Uninstallation the product 1 . Unplug the power plug from the outlet . 2 . Close the main water supply valve . 3 . Place a big wash basin (1 L or more) under the rear drain hole of the bidet . 4 . -
Page 27: Maintenance
MAINTENANCE Freezing Protection Function Coway bidet has a built-in anti-freezing program . When the water temperature of the water tank falls below 5 ºC, the heater automatically operates to prevent freezing burst . Check that the power is turned on. If the power is turned off, the anti-freezing program does not work and the bidet may have freezing burst or malfunctions in a cold environment. -
Page 28: Filter Replacement Method
FILTER REPLACEMENT METHOD 1 . Please pull out the power plug and turn off the main water supply valve . 2 . Separate the mF filter from the filter holder by rotating the mF filter to replace to the arrow direction . 3 . -
Page 29: Troubleshooting
TROUBLESHOOTING The bidet may operate abnormally due to the minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items. If you can’t solve the problem after checking the following items, please call the Service Center. Symptom Check Measures to take • Is the power plug connected to Plug in the power cord. the electrical outlet? • Is it a power failure? Check whether it is a power failure. The product is not Check whether buttons other than working. the Power button work well. If one of the other buttons is pressed • Is the control panel turned off? down, the Power button does not work. In this case, call our service center. • Does the main water supply Open the main water supply valve. valve closed? Remove the foreign material by • Is the nozzle clogged with cleaning the nozzle opening with a foreign material? toothbrush. Water is not ejected. Check whether the suspension of water supply is performed or not. •... - Page 30 TROUBLESHOOTING Symptom Check Measures to take Please adjust as the proper • Isn’t the air dryer temperature The air from the air temperature by pressing the air adjustment button set to “OFF” dryer is cold. dryer temperature adjustment status? button. Check that the rubber packing is • Water leaks on the T-shaped inserted in the T-shaped connector connector. and firmly tighten the nut again. Water leaks in areas other than the • Water leaks on the connection Push the bidet hose to the nozzles. part of the bidet hose. connection part completely. Check whether the filter was • Water leaks on the filter. damaged or not. • What water comes out between the nozzles after cleansing is to clean the nozzles, not a malfunction. Water comes out while the bidet is • In some cases, water drops around the nozzles may fall down in the not in use. toilet. It is that the water drops remaining on the nozzle surface after the nozzle cleaning drop into the toilet. It is not a malfunction.
-
Page 31: Specification
SPECIFICATION Product name Bidet Model name BA08-AR/AE Power rating 120 V~, 60 Hz Power consumption 850 W Water pressure 0.11 MPa - 0.68 MPa BA08-AR 525 mm (W) X 500 mm (D) X 142 mm (H) Product dimensions BA08-AE 525 mm (W) X 530 mm (D) X 142 mm (H) Weight (NET) 5.7 kg - 6.3 kg Rear cleansing Maximum 0.7 L/min, automatic nozzle cleaning function Front cleansing Maximum 0.7 L/min, automatic nozzle cleaning function Timing Rear cleansing 1 min, Front cleansing 1 min Water pressure control Micom control, 3 levels control Wide (spray range control) 3 level spray range control(straight-level 1-level 2) Warm water Air + cleansing Air mixed water type device 4 levels Warm water temperature adjustment (off : room temperature, low : 33 ºC, medium : 36 ºC, high : 39 ºC) Power consumption of cistern heater 800 W... - Page 32 MEMO...
- Page 33 MEMO...
-
Page 34: Warranty Card
WARRANTy CARD OR WARRANTy LETTER ONE yEAR LimiTED WARRANTy BiDET BA08-AR/AE (“PRODUCT”) Model : Serial Number : Customer Name : (“OWNER”) Date of Purchase : What This Warranty Covers : Limitations and Exclusions : Commencing with the date of purchase of the TO THE EXTENT PERMITTED BY APPLICABLE LAW, Product and continuing for a period of one year, COWAY DISCLAIMS ANY OTHER WARRANTY if manufacturing defects in the Product cause the EXPRESS OR IMPLIED, THAN THAT PROVIDED Product to not operate properly for its intended FOR HEREIN. THIS WARRANTY IS IN LIEU OF AND... - Page 35 Obtaining Warranty Service and OWNER’S Duties : COWAY’s continuing liability under this Warranty is conditioned upon the following: If the Product fails to operate for its intended purpose, then notify COWAY or its a) The defect or damage is not caused Representative Agency, within 48 hours or by or is the result of: abnormal use or within the next business day after discovery conditions; improper storage, unauthorized of any defect in the Product. The OWNER must modifications or repair; misuse, neglect, give written notice to COWAY no later than accident, alteration, improper installation thirty (30) days after a defect is discovered or or other acts that are not the fault of Coway should by reasonable diligence have been or the manufacturer of the product or that discovered. Claims under this Warranty will are not covered by the manufacturer’s require proof of purchase by the OWNER. warranty; b) The Product has not been altered, modified or repaired without prior written approval of COWAY; c) The OWNER has notified COWAY in writing of any failure of the Product covered by this Warranty within thirty (30) days following such failure; d) There has been no misuse, abuse or negligence with respect to the Product on the part of the OWNER.
- Page 36 MADE IN KOREA 1021214...
