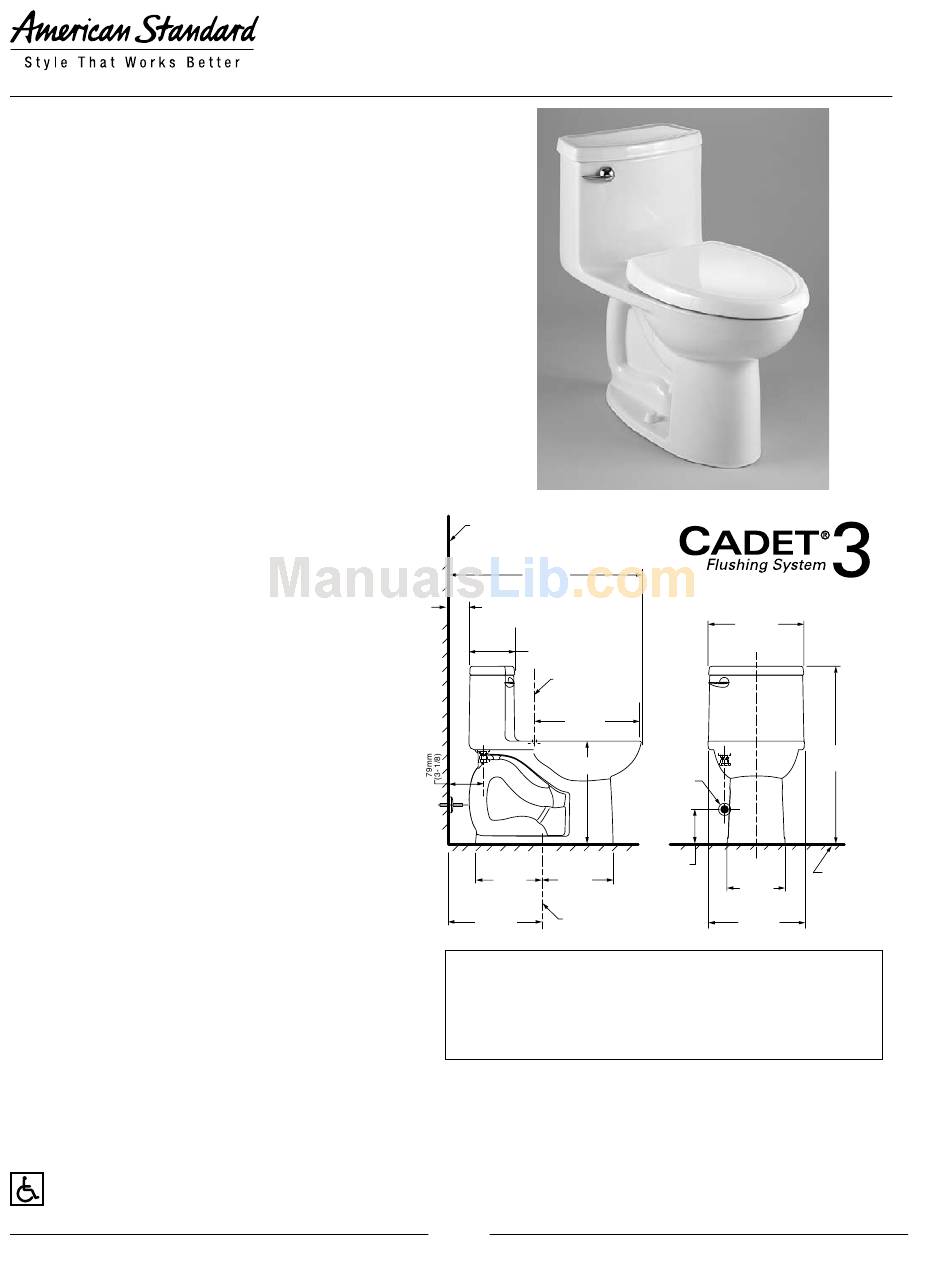

American Standard Compact Cadet 2403.012 Specification Sheet

COMPACT CADET ® 3 ELONGATED
RIGHT HEIGHT™ ONE-PIECE TOILET WITH SEAT
❑ 2403.012
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• Space saving compact design - Elongated
Right Height bowl fits in the same space as
a round front toilet
• EverClean surface inhibits the growth of
®
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Featuring the Cadet
• One-piece design
• Elongated siphon action jetted bowl with
2-1/8" trapway
• Internal trapway area fully glazed
• Rim height at 419mm (16-1/2") for accessible
application
• Includes color-matched and design-matched
solid plastic toilet seat and cover with slow-
close hinges and EverClean
Seat features unique sanitary seat lift tab
• Oversized 3" Flush Valve with Chemical
Resistant Flapper
• 10" x 8" water surface area
• 2 bolt caps
• Chrome Trip Lever
• 100% factory flush tested
• 5 year warranty
❑ 2403.500 Same as above, except with
Aquaguard liner in tank
❑
2403.800 Same as above, except with
trip lever on right side
Nominal Dimensions:
724 x 394 x 724mm
(28-1/2" x 15-1/2" x 28-1/2")
Fixture only, supply by others
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures -
includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
• Los Angeles Department of Water and Power
Supplementary Purchase Specification for
Non-Adjustability
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND
ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES-CHECK LOCAL CODES.
© 2008 AS America Inc.
3 Flushing System
®
surface.
®
COMPACT CADET
RIGHT HEIGHT™ ONE-PIECE TOILET
FINISHED WALL
724mm
(28-1/2)
16 ± 6mm
(5/8 ± 1/4)
159mm
(6-1/4)
C/L OF SEAT POST
HOLES 140mm
(5-1/2) CENTERS
422mm
(16-5/8)
419mm
(16-1/2)
292mm
267mm
(10-1/2) (11-1/2)
C/L OF OUTLET
305mm
(12)
To Be Specified:
❑ Color:
❏ White ❏ Bone ❏ Linen ❏ Silver ❏ Black
❑ Supply with Stop:
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
* DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
K14
®
3 ELONGATED
VITREOUS CHINA
381mm
(15)
724mm
(28-1/2)
SUPPLY
AS
REQ'D
*
140mm
FINISHED
(5-1/2)
FLOOR
241mm
(9-1/2)
394mm
(15-1/2)
Revised 2/08
