Yamaha RHINO YXR45FW Owner's Manual page 139

CAUTION:
_
To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.
_
3. Remove the blown fuse, and then install
a new fuse of the specified amperage.

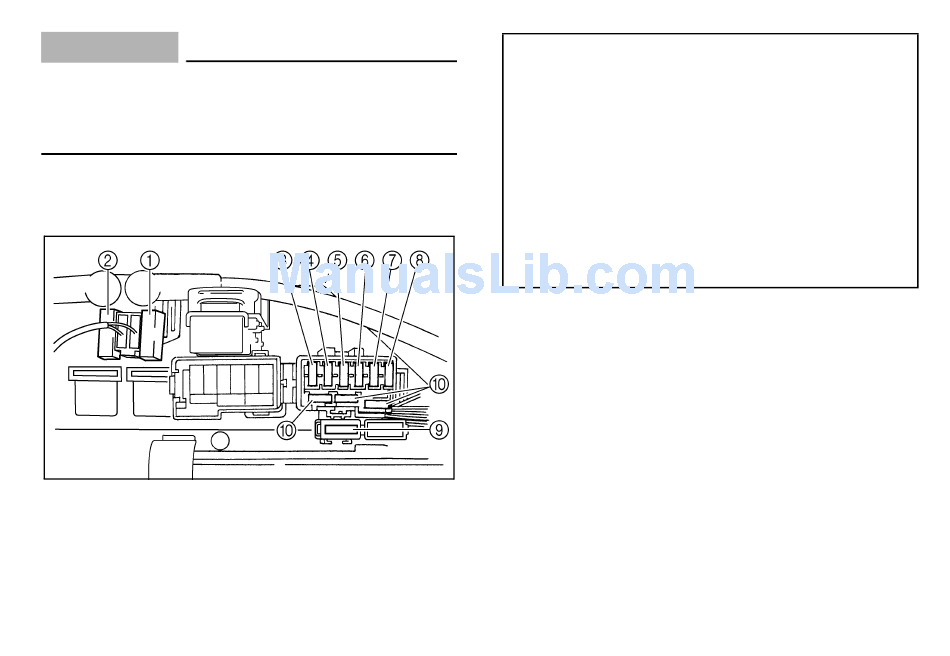

1. Main fuse
3. Headlight fuse
5. Auxiliary DC jack fuse
7. Signaling system fuse
8. Backup fuse (for optional odometer and clock)
9. Carburetor warmer fuse
2. Spare main fuse
4. Ignition fuse
6. Four-wheel-drive motor fuse
10. Spare fuse (× 3)
Specified fuses:
Main fuse:
Headlight fuse:
Ignition fuse:
Auxiliary DC jack fuse:
Signaling system fuse:
Carburetor warmer fuse:
Four-wheel-drive motor fuse:
Backup fuse:
4. Turn the key to "ON" and turn on the
electrical circuit in question to check if the
device operates.
5. If the fuse immediately blows again, have
a Yamaha dealer check the electrical
system.
6. Install the battery compartment cover.
7. Close the hood.
8-45
