Drive Belt - Yamaha G21A Owner's/Operator's Manual

MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
8-8
Y-60
B
Y-44

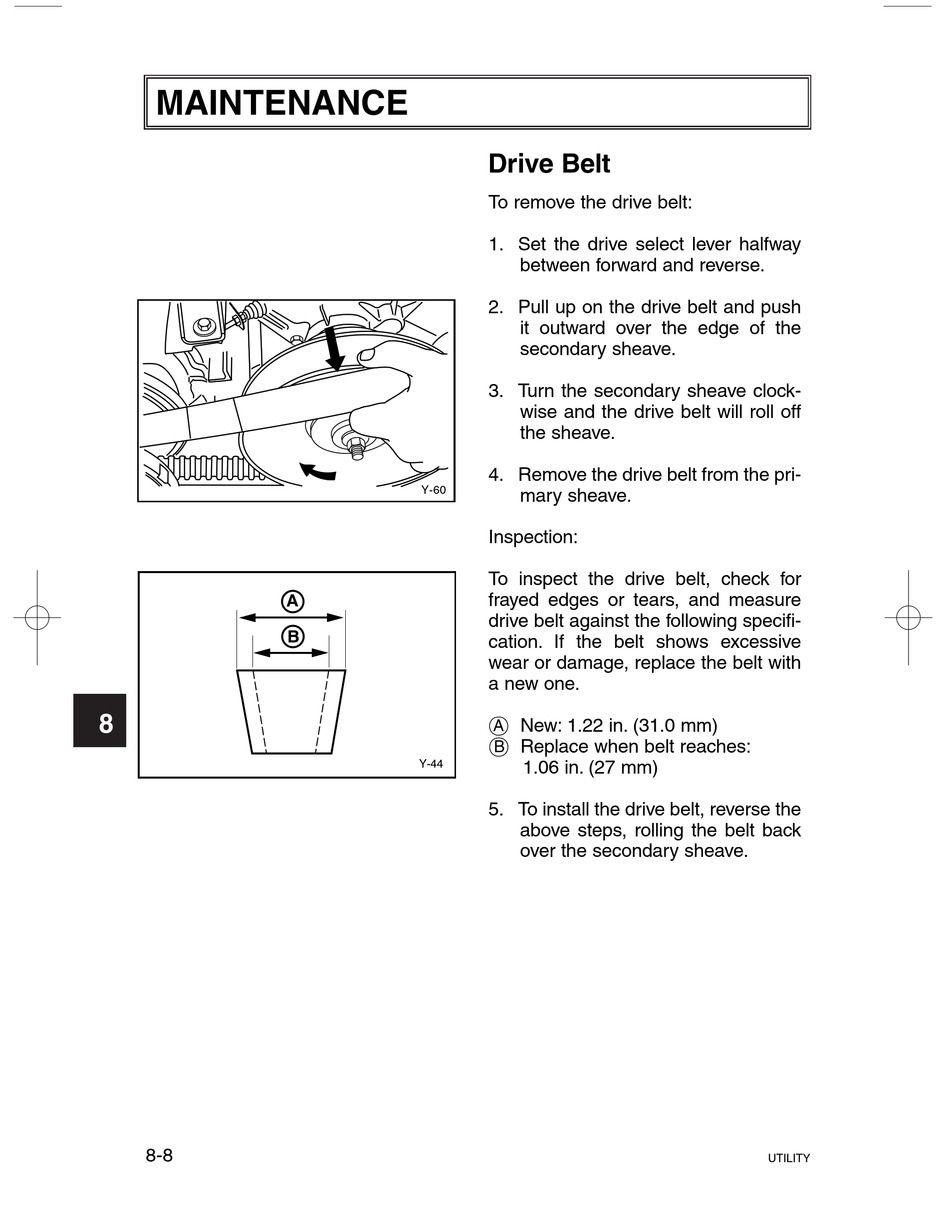

Drive Belt

To remove the drive belt:
1. Set the drive select lever halfway
between forward and reverse.
2. Pull up on the drive belt and push
it outward over the edge of the
secondary sheave.
3. Turn the secondary sheave clock-
wise and the drive belt will roll off
the sheave.
4. Remove the drive belt from the pri-
mary sheave.
Inspection:
To inspect the drive belt, check for
frayed edges or tears, and measure
drive belt against the following specifi-
cation. If the belt shows excessive
wear or damage, replace the belt with
a new one.
å New: 1.22 in. (31.0 mm)
∫ Replace when belt reaches:
1.06 in. (27 mm)
5. To install the drive belt, reverse the
above steps, rolling the belt back
over the secondary sheave.
