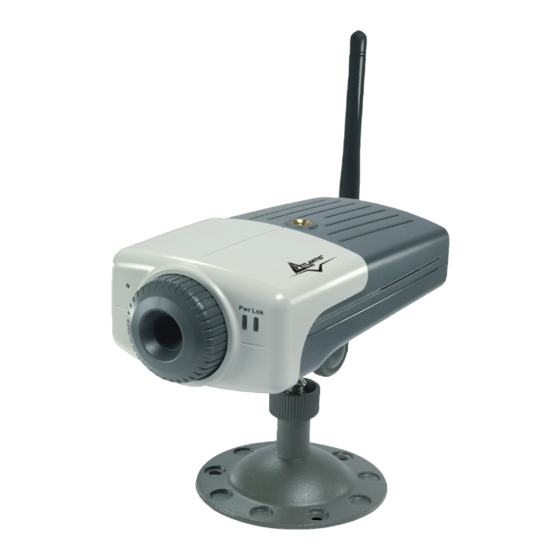

Atlantis Land NetCamera A02-IPCAM-W54 Quick Start Manual

Netcamera ip security wireless camera
Hide thumbs Also See for NetCamera A02-IPCAM-W54:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: User Manual
NetCamera
IP Security Wireless Camera
A02-IPCAM-W54
MULTILANGUAGE
Quick Start Guide
A02-IPCAM-W54_GX01
Where solutions begin
Company certified ISO 9001:2000

Advertisement

Table of Contents
loading

Related Manuals for Atlantis Land NetCamera A02-IPCAM-W54

Summary of Contents for Atlantis Land NetCamera A02-IPCAM-W54

  • Page 1 NetCamera IP Security Wireless Camera A02-IPCAM-W54 MULTILANGUAGE Quick Start Guide A02-IPCAM-W54_GX01 Where solutions begin Company certified ISO 9001:2000...
  • Page 3 Italiano fare riferimento al sito www.atlantis-land.com. ENGLISH This product is covered by Atlantis Land 3 years Fast-Swap warranty. For more detailed informations please refer to the web site www.atlantis-land.com. For more detailed instructions on configuring and using this device, please refer to the online manual.
  • Page 4 WARRANTY. Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice.

  • Page 5: Table Of Contents

    MULTILANGUAGE Quick Start Guide ITALIANO 1.1 Contenuto della confezione ....... 7 1.2 I LED frontali............7 1.3 Le porte posteriori..........8 1.4 Cablaggio .............. 9 1.5 Settaggi di Default ..........11 1.6 Configurazione IP Security Cam ..... 11 1.7 Java/ActiveX Mode..........12 1.8 System Administration ........
  • Page 6 Atlantis Land spa che non si assume responsabilità per qualsiasi errore o inesattezza che possa apparire in questo manuale. Nessuna parte di questa pubblicazione può essere...

  • Page 7: Italiano

    1.1 Contenuto della confezione Atlantis Land NetCamera, CDRom contenente il manuale ed il software IPView SE, Guida di Quick Start, cavo CAT-5 LAN, Antenna esterna, Alimentatore (5V, 2.5A) e Piedistallo in metallo. 1.2 I LED frontali...

  • Page 8: Le Porte Posteriori

    ITALIANO 1.3 Le porte posteriori 10/100 Ethernet DC Power Connector Reset DC 5V Reset Button Network Cable Antenna Connector Porte Utilizzo Connettere il cavo RJ-45 a Network Cable questa porta effettuare l’allacciamento alla Lan Avvitare l’antenna questo Antenna connettore Connector Dopo dispositivo è...

  • Page 9: Cablaggio

    ITALIANO Connettere l’alimentatore POWER (jack) questo jack 1.4 Cablaggio Prendere il piedistallo dalla confezione e collegarlo ala NetCamera. Sono presenti, nella base del supporto, 3 fori da utilizzarsi per un fissaggio sulla parete. Avvitare l’antenna sul connettore apposito, come da figura: Collegare a questo punto la NetCamera alla LAN utilizzando il cavo fornito in dotazione.
  • Page 10 ITALIANO Verificare che il LED Power sia acceso.

  • Page 11: Settaggi Di Default

    ITALIANO 1.5 Settaggi di Default Prima di iniziare la configurazione dell’Atlantis NetCamera è necessario conoscere quali siano i settaggi di default: • Password: • Username: • Indirizzo IP: 192.168.0.20 • SSSID=stringa vuota, Canale=11 1.6 Configurazione IP Security Cam Accedere col browser web al seguente indirizzo IP che di default è: http://192.168.0.20, e premere il tasto invio.

  • Page 12: Java/Activex Mode

    ITALIANO Cliccando sulla sezione desiderata, nello spazio della homepage appariranno tutti settaggi relativi alla configurazione della sezione scelta, oppure si apriranno tutta una serie di sottosezioni tra cui scegliere prima di avere accesso alle configurazione vere e proprie. 1.7 Java/ActiveX Mode Cliccare su “View Image –...
  • Page 13 ITALIANO Camera Name* Date/Time*** Camera Name* - Il nome della Camera mostrato è contenuto nel campo Camera Name in System. Date/Time***- Viene mostrata l’ora e la data attuale. E’ possibile configurare nel dettaglio le funzioni E-Mail Upload Image Upload accedendo all’opportuna sezione Nella modalità...

  • Page 14: System Administration

    Per qualunque altro problema o dubbio è possibile contattare l’help desk telefonico (02/93907634) gratuito di Atlantis Land che fornirà assistenza da lunedì al giovedì dalle 9:00 alle 13:00 e dalle 14:00 alle 18:00. Il venerdì dalle 9 :00 alle 13 :00.

  • Page 15: English

    All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice.

  • Page 16: Package Contents

    For more detailed instructions on configuring and using the NetCamera, please refer to the online manual. 1.1 Package contents Atlantis Land NetCamera, CDRom with manual and IPView SE, Quick Start Guide, cable CAT-5 LAN, Antenna, Power Adapter AC-DC (5V, 2.5A) and Camera Stand Accessory.

  • Page 17: The Rear Ports

    ENGLISH 1.3 The Rear Ports 10/100 Ethernet DC Power Connector Reset DC 5V Network Reset Button Cable Antenna Connector Port Meaning The Wireless Internet Camera’s Network Cable rear panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet...

  • Page 18: Cabling

    ENGLISH settings Connect the supplied power POWER (jack) adapter to this jack 1.4 Cabling The NetCamera comes with a camera stand with a swivel ball screw head that can be attached to the Wireless Internet Camera's bottom screw hole. Attach the camera stand to the NetCamera and station it for your application.

  • Page 19: Default Settings

    ENGLISH Connect an Ethernet cable to the network cable connector located on the Wireless Internet Camera’s rear panel, and then attach it to the network. Attach the external power supply to the DC power input connector located on Wireless Internet Camera’s rear panel, and then connect it to your local power supply.

  • Page 20: Browser Configuration

    ENGLISH 1.6 Browser configuration Open the web browser, enter the local port IP address of this Wireless Security Cam, which default http://192.168.0.20, and click “Go” to get the login page. At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the desired setup page, including: View Image ActiveX Mode, View Image Java Mode, System Administration.
  • Page 21 ENGLISH Camera Name* Date/Time*** Camera Name* - The Camera name will be display when the Camera Name field is entered in the Web Configuration setting under System. Date/Time***- The date/time of the video server will show the date and time that come from time server or you set manually.

  • Page 22: System Administration

    If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39. 02.93906085, +39. 02.93907634(help desk) Fax: +39.

  • Page 23: Francais

    FRANCAIS Copyright Copyright . 2002 est la propriété de cette société. Tous droits réservés. Sont interdites, reproduction, transmission, la transcription, la mémorisation dans un système de sauvegarde où la traduction dans une autre langue ou en langage informatique quels qu’ils soient, de la présente publication, sous quelque forme que ce soit ou quel qu’en soit le moyen, électronique, mécanique, magnétique, optique, chimique, manuel ou de tout autre...

  • Page 24: Contenu De La Boîte

    électronique (PDF) disponible sur le CDRom fourni. 1.1 Contenu de la boîte Avant l’installation, assurez-vous de disposer des éléments suivants : Atlantis Land NetCamera, CDRom avec Application IPView SE, Manuel, Guide d’installation rapide, Câble réseau RJ45 (Cat 5), Antenne, Adaptateur secteur et Pied metallique.

  • Page 25: Face Arrière

    FRANCAIS Signification Allumée quand l’IP Security Cam est Power sous tension Allumée quand le LAN (réseau) est connecté Orange= connexion à 100Mbps Link Clignote lors transferts données 1.3 Face arrière 10/100 Ethernet Reset Alimentation DC 5V Bouton Reset Cable Réseau Antenne Port Usage...

  • Page 26: Câblage

    FRANCAIS restauration usine. zéro) 1 secondes: reset (remise à zéro) secondes: retour conditions initiales Connectez l’alimentation fournie Prise à cette prise d’alimentation 1.4 Câblage L’IP Security Cam, qui est équipée de pas de vis sur les faces supérieure et inferieure, est livrée avec un pied orientable permettant de la fixer dans toutes les positions (table, mur, plafond).

  • Page 27: Configuration Initiale

    FRANCAIS Reliez votre IP Security Cam à votre réseau avec un cable adapté puis l’alimentation secteur fournie. Vérifiez que la LED Power est allumée sur la face avant de votre IP Security Cam. 1.5 Configuration initiale Avant de commencer la configuration de l'IP Wireless Security Cam, nécessaire...

  • Page 28: Configuration Avec Le Browser

    FRANCAIS 1.6 Configuration avec le Browser Pour accéder à l’interface Web, lancez un navigateur Internet et tapez dans la barre adresse l’IP suivante : http://192.168.0.20 Vous entrerez dans le Menu Principal, dans la partie gauche on accédera à toutes les sections: View Image ActiveX Mode, View Image Java Mode, System Administration.
  • Page 29 FRANCAIS Camera Name* Date/Time** Camera Name* - Le nom de l’IP Security CAM que l’on retrouve dans le champ Camera Name du menu System Administration. Date/Time**- L'heure et la date actuelles. Ppour la configuration E-mail Upload et Image Upload consulter le manuel contenu sur le CDRom fourni Pour modalité...

  • Page 30: System Administration

    « help desk » téléphonique gratuite d’Atlantis Land qui vous fournira assistance du: lundi au vendredi de 9.00 à 13.00 et 14.00 à 18.00 Vous pouvez aussi nous contacter par email : tech-fr@atlantis-land.com Atlantis Land France 57, Rue d’Amsterdam 75008 Paris WWW: http://www.atlantis-land.fr...
  • Page 31 NOTE...
  • Page 32 NOTE...
  • Page 33 Atlantis Land S.p.A. Viale De Gasperi, 122 Mazzo di Rho – MI – Italy info@atlantis-land.com sales@atlantis-land.com www.atlantis-land.com Where solutions begin Company certified ISO 9001:2000...
