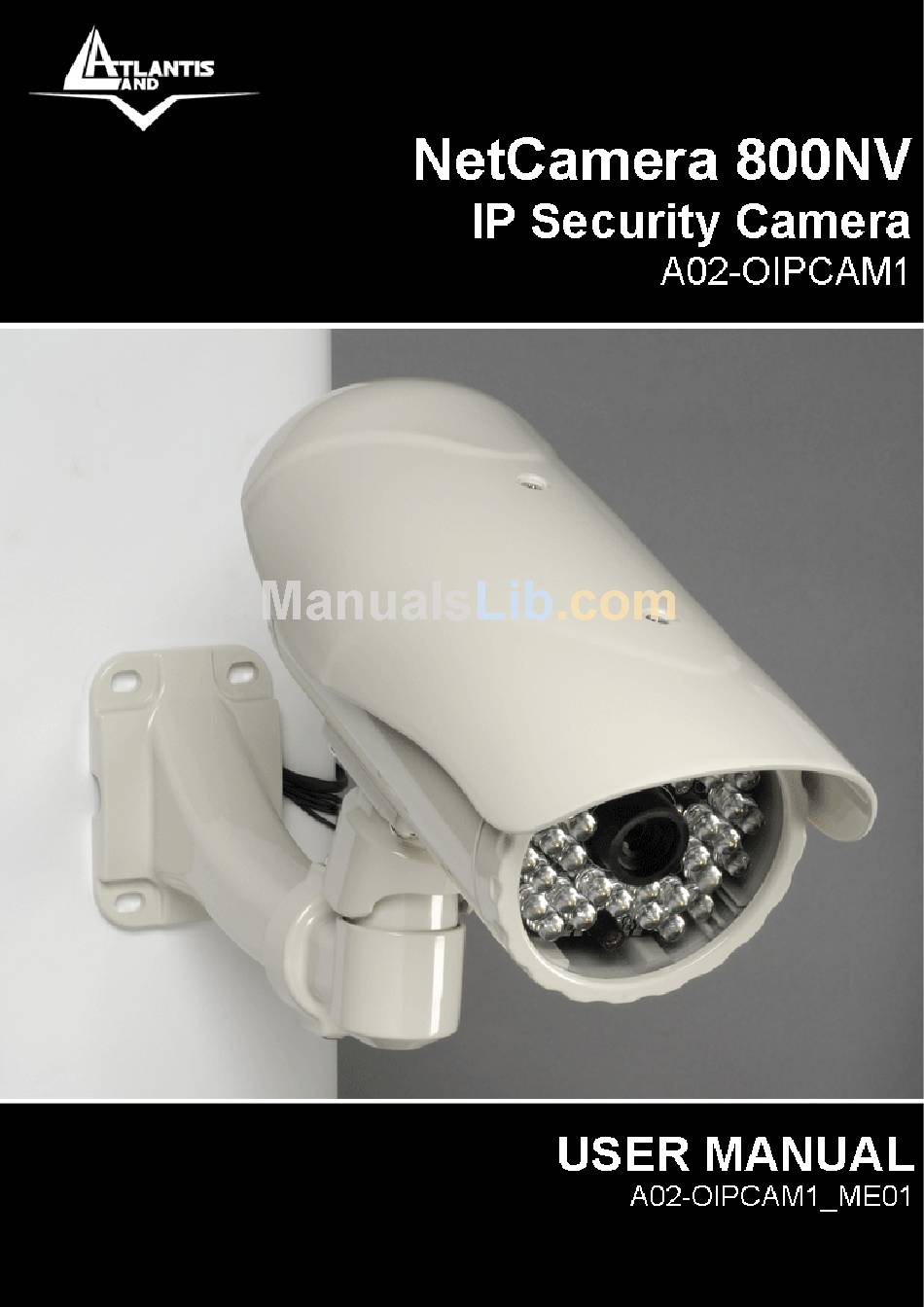

Atlantis Land Netcamera 800NV User Manual

Atlantis land netcamera user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Atlantis Land Netcamera 800NV

Summary of Contents for Atlantis Land Netcamera 800NV

  • Page 2: Before You Use This Product

    Before you use this Product This Atlantis Land product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following.

  • Page 3: Table Of Contents

    Index Installation ... 2 Using IP Camera via Mobile Phone ... 2 Using IP Camera via Web Browser ... 3 1. Initial accessing the IP camera ... 5 2. Configuration of Main Menu ... 6 2.1 Setting ... 6 2.2 Client Setting ... 7 2.3 Image Setup ...

  • Page 4: Installation

    Installation Installation Steps Follow these steps to install the NetCameraIR Camera on your Ethernet: 1. Check the package contents against the list below. 2. Set the device. See IP Installer User Manual on the available methods. Package Contents Item IP Camera Power Adapter Accessory Pack Printed Document...

  • Page 5: Using Ip Camera Via Mobile Phone

    Using IP Camera via Mobile Phone To use IP cameras via mobile phones, please make sure your RTSP is set to “ON”. (Default is “ON”) To change the settings of IP cameras, please see “Settings” for details. 3G Mobile Phone viewing For 3G mobile phone viewing, type “rtsp://<IP>:<PORT>/video.3gp”...

  • Page 6: Using Ip Camera Via Web Browser

    Using IP Camera via Web Browser System Requirement To use the product normally, we strongly recommend your computer follows our minimum system requirement (Computer level lower than this might cause some problems) Item Pentium 4 1600MHz (or equivalent AMD) Graphic Card 64MB RAM graphic cards (or equivalent on-board graphic cards) 512MB Operating System...
  • Page 7 Microsoft web browser. The recommended browser for Windows is Internet Explorer 6.0. If you want to know how to use Atlantis Land IP camera with Intelligent IP Installer, check Intelligent IP Installer User’s Manual in Windows operation systems.

  • Page 8: Initial Accessing The Ip Camera

    1. Initial accessing the IP camera 1. Start your web browser, and enter the IP address or host name of the ATLANTIS LAND IP camera in the Location / Address field of your browser. Note： • If you only want to view the video without setting page, enter “http://<IP>/index2.htm”...

  • Page 9: Configuration Of Main Menu

    2. Configuration of Main Menu Language You can click the pulldown box to select system language, including English, Traditional Chinese, Simplified Chinese, German, Japanese and Spanish. 2.1 Setting This function is only for the Administrator. Click this button to get into the Basic and Advance settings menu.

  • Page 10: Client Setting

    2.2 Client Setting Mode: Click the pulldown box to choose between MPEG4 and MJPEG video compression mode. Note：MJPEG streaming is unavailable if RTSP mode is ON. View Size: Select the desired display image resolution to 640X480 or 320X240. Protocol: Select the transferring protocol from TCP, UDP, HTTP and Multicast. Video Buffer: Turn the Video Buffer function On/Off.
  • Page 11 1. Click to d display the 2. Pull be sh howed on the above 3. You c can use the e left click Audio b buttons： ：S Speakers t urned on. ：M Microphone e turned on ： Vol ume contr ：...

  • Page 12: Setting

    Setting 3. Basic Click the “Basic” folder to display the sub folders, including System, Camera, Network, and Security. 3.1 System 3.1.1 Information The Information page provides you with product factory information, including Product name, Firmware version, and Web version.
  • Page 13 3.1.2 Day & Time Current date & time：This displays the current date and time of the device. PC clock：This displays the date and time of the monitoring PC clock. Date & time format：Click the pulldown box to select among different time display formats, including yyyy-mm-dd hh:mm:ss (year-month-day hour:minute:second), mm-dd-yyyy hh:mm:ss (month-day-year...
  • Page 14 millisecond of computer clock times in a network of computers. NTP server name：Type the host name or IP address of the NTP server, up to 64 characters. Time zone：Select the time zone and time difference from Greenwich Mean Time in the area where the device is installed from the pulldown box.
  • Page 15 Note: • Use only upgrade files that are special for this device. Problems may occur otherwise. • Do not turn off the device power or disconnect the network until the upgrading is completed.

  • Page 16: Camera

    3.2 Camera 3.2.1 General RTSP: Switch the RTSP streaming On/Off. Note： • RTSP: Real Time Streaming Protocol. RTSP is supported by most of the media clients . (RealPlayer, Media Player, QuickTime, etc…) Deinterlace Filter：Switch the deinterlace filter on/off. Overlay：Select to add Text Overlay or Privacy Mask on/off the display screen. Text Overlay：Enables users to see some information on the display screen, including Date/Time and user-defined text.
  • Page 17 3.2.2 MPEG4 3.2.2.1 Computer View RTSP (If RTSP mode is ON) RTSP port: Specify the transmission port number of RTSP streaming video. Default value is 554. Viewer authentication: If the viewer authentication is ON, users viewing through RTSP will be requested to key-in username and password. RTP (If RTSP mode is ON) Unicast streaming: Unicast streaming Video/Audio port range: Specify the transmission port range of...
  • Page 18 MPEG4 viewer port (If RTSP mode is OFF) Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 8090. Specify an even number from 1024 to 65534. Image Size：Specify the image size the network camera transmits. You can choose among 704 ×...
  • Page 19 3.2.2.2 Mobile View RTSP (If RTSP mode is ON) RTSP port: Specify the transmission port number of RTSP streaming video. Default value is 8554. RTP (If RTSP mode is ON) Unicast streaming: Unicast streaming Video/Audio port range: Specify the transmission port range of RTP streaming video.
  • Page 20 Quality Fixed Bitrate：Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 32, and 16kbps..
  • Page 21 3.2.3 MJPEG Note： • MJPEG settings are unavailable if the RTSP mode is ON, which means the MJPEG streaming is closed. MJPEG viewer port Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 8070. Specify an even number from 1024 to 65534. Note：...
  • Page 22 Quality Auto：The quality will be automatically decided. Fixed quality：The selectable values are Medium, Standard, Good, Detailed and Excellent.

  • Page 23: Network

    3.3 Network 3.3.1 Information MAC address：Display the MAC address of the device. Obtain an IP address automatically (DHCP)：If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server. Note： •...
  • Page 24 • When you have set the HTTP port number to a number other than 80 on the Network setting page or in the Setup Program, access the device by typing the IP address of the device on the web browser as follows: Example: when HTTP port number is set to 2000 http://192.168.1.100:2000/...
  • Page 25 3.3.2 PPPoE Use this when you connect the device through PPPoE (Point -to- Point Protocol over Ethernet). PPPoE connection is the protocol that is widely used in xDSL (digital affiliate line such as ADSL, VDSL or SDSL) as the authentication and connection system. IP address：The IP address obtained at the PPPoE connecting with network.
  • Page 26 3.3.3 DDNS Server name：Choose the DDNS Server from the list. User ID：Enter the user ID for authentication necessary for DDNS connections. Type it up to 64 characters. Password：Enter the password for authentication necessary for DDNS connections. Type it up to 32 characters. Re-type password：Re-type the password to confirm.
  • Page 27 3.3.4 UPnP device includes support for UPnP, which is enabled by default. If also enabled on your device computer, the will automatically be detected and a new icon will be added to “My Network Places.” It provides port forwarding for opening a port in a router or firewall in a private network in order to let a party from the outside world contact a user inside.
  • Page 28 3.3.5 IP Notification When network notify type is set to On, you can send an e-mail notification of the completion of the network setting. Notify type：Select type of DHCP, Static IP and PPPoE will notify. SMTP server name：Type the SMTP server name up to 64 characters, or the IP address of the SMTP server.
  • Page 29 User name, Password：Type the user name and Password of the user who has the mail account. This setting is necessary when the SMTP server which sends e-mails performs authentication. Recipient e-mail address：Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient E-mail addresses.

  • Page 30: Security

    3.4 Security 3.4.1 Account The device default account and password setting is “admin/admin”. That means everyone might access the device including the configuration as long as the IP address is known. It is necessary to assign a password if the device is intended to be accessed by others. Use this menu to set the user names and passwords of Administrator and up to 9 different users (User 1 to User 9), and the access right of each user.
  • Page 31 3.4.2 HTTPS HTTPS is a URI scheme used to indicate a secure HTTP connection. It is syntactically identical to the http:// scheme normally used for accessing resources using HTTP. Using an https: URL indicates that HTTP is to be used, but with a different default TCP port (443) and an additional encryption/authentication layer between the HTTP and TCP.

  • Page 32: Advance

    4. Advance 4.1 FTP Client Use this menu to set up for capturing and sending images to an FTP server. By using FTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server. FTP client setting menu is composed of two tabs, General, Alarm sending and Periodical sending.
  • Page 33 Passive mode：Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode. Attached file type：Set attached file type to MJPEG or MPEG.4...

  • Page 34: Alarm Sending

    4.1.2 Alarm sending Set to forward the image and audio file to the specified FTP server linked with the alarm detection by the external sensor input or by the built-in motion detection function. Select On to send the image and audio file to FTP server linked with the alarm detection. Remote path：Type the path to the destination in FTP server up to 64 characters.
  • Page 35 Cropping is set to Off. Alarm Buffer：Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded. Click Alarm buffer to display the Alarm buffer setting menu.

  • Page 36: Periodical Sending

    4.1.3 Periodical sending You can set to send an image file to FTP server periodically by selecting On to send the image file to FTP server linked with setting period. Remote path：Type the remote path up to 64 characters. Image file name：Type the file name of the image sent to FTP server up to 10 alphanumeric characters, - (hyphen) and _ (under score).
  • Page 37 Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 34)

  • Page 38: Smtp

    4.2 SMTP Set the SMTP menu when you want to send an image via e-mail. By using Mail (SMTP) function, you can send a mail with attached image which has been shot linked with the external sensor input or with the built-in motion detection function. The image file can also be sent periodically.
  • Page 39 Authentication：Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. SMTP: Select if SMTP authentication is necessary when an e-mail is sent. POP before SMTP: Select if POP before SMTP authentication is necessary when an e-mail is sent.
  • Page 40 4.2.2 Alarm sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Alarm sending：Select On to set to send mail with connection to the alarm detection. File attachment：Set whether an image file is attached to the mail sent or not.
  • Page 41 the motion detection function page. Note： • Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. Alarm Buffer：Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm).
  • Page 42 4.2.3 Periodical sending You can set to send an image file by SMTP server periodically by selecting On to send the image file by SMTP server linked with setting period. Image file name：Type the file name of the image sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score).

  • Page 43: Http Event

    4.3 HTTP Event Use this menu to set up for capturing and sending images to an HTTP server. By using HTTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to HTTP server.
  • Page 44 4.3.2 Alarm sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Alarm sending：Select On to set to send mail with connection to the alarm detection. Motion Detection：Click it on for using Motion Detection function as a sensor.

  • Page 45: Schedule

    4.4 Schedule When you click Schedule on the Advanced mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Alarm out setting menu and so on.

  • Page 46: Alarm Buffer

    4.5 Alarm Buffer You can set the Pre-alarm image and audio (the image and audio before the alarm detection) and the Post - alarm image and audio. These can be set when Alarm sending FTP client setting menu or Image memory setting menu is set to On, and besides when Use alarm buffer is selected.
  • Page 47 Post alarm period：Type it with recording time of the image/audio after the alarm detection. Note： • The value of Recording capacity differs depending on Image size, Bitrate (for MPEG4) and Image quality (for MPEG4 and MJPEG) in the camera setting menu.

  • Page 48: Motion Detection

    4.6 Motion Detection When you click Motion Detection on the Advance mode menu, the Motion Detection setting menu appears. There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially.
  • Page 49 over setting value, it would carry on assigned work. Sensitivity：You can use the tool bar to set down-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Carry out the following steps： 1. Click On to Motion Detection 1 choose one of eight orders. 2.

  • Page 50: System Log

    4.7 System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started. Remote Log: Enables user to send the log data to a specified log server.
  • Page 51 Atlantis Land Via Pellizza da Volpedo, 59 20092 Cinisello Balsamo – MI – Italy info@atlantis-land.com...
