MBOX Ultra-High Performance 2-Bay SATA NAS Server User Manual

Ultra-high performance 2-bay sata nas server
Hide thumbs
Table of Contents

Advertisement

Quick Links

To get Mbox's Quick Guide please visit www.mvix.net or copy it from installation CD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra-High Performance 2-Bay SATA NAS Server and is the answer not in the manual?

Questions and answers

Summary of Contents for MBOX Ultra-High Performance 2-Bay SATA NAS Server

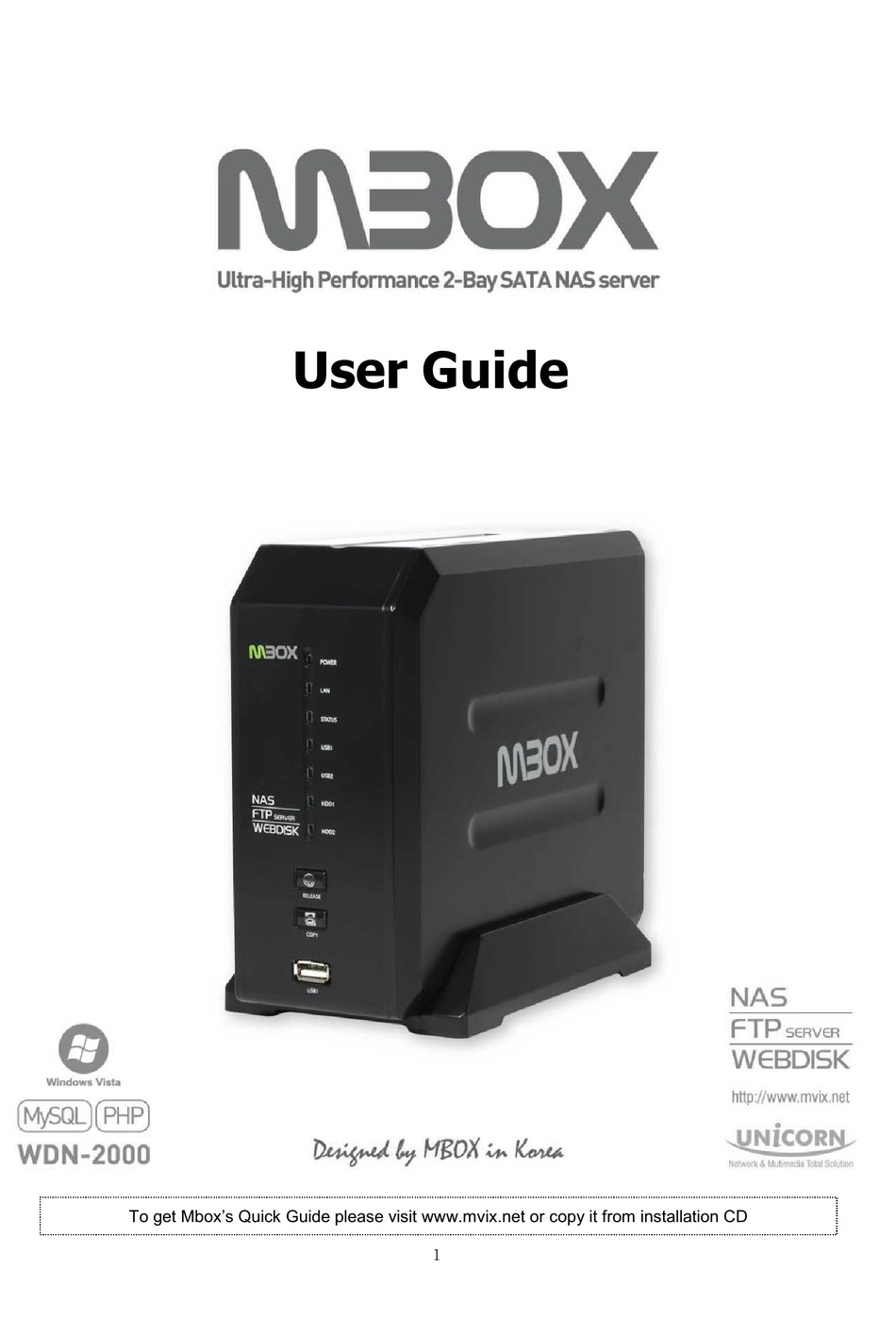

  • Page 1 To get Mbox’s Quick Guide please visit www.mvix.net or copy it from installation CD...
  • Page 2 8QLFRUQ ,QIRUPDWLRQ 6\VWHP...
  • Page 3 8QLFRUQ ,QIRUPDWLRQ 6\VWHP...
  • Page 4 8QLFRUQ ,QIRUPDWLRQ 6\VWHP...
  • Page 5 8QLFRUQ ,QIRUPDWLRQ 6\VWHP...

  • Page 6: Webdisk Execution

    1.1 WebDisk Execution 1.1.1 Login and Join 1. Input IP address and domain name of applicable equipment on internet web browser. ex)http://192.168.0.7 or http://shinsun.mvix.net] * It is easy to use domain name. Please refer the establishment guide and manager function for the domain establishment method.
  • Page 7 - The main page after login consists of the following: 1. Top of Screen Product Logo: Click product logo to move to main page at all times. 2. Top Left Basic Image: Image can be changed as desired by the user in ‘my profile’. My Profile: Password and basic image, etc.
  • Page 8 1.1.2 Executing Main Function 1.1.2-1 WebDisk Explorer 1. When executing Web Disk explorer, Web Disk explorer automatically activates. Server login takes place at the same times as execution. Therefore, there is no need for any additional login. 2. Once Web Disk explorer is opened, it can be used separately from the web browser.
  • Page 9 1.1.2 Executing Main Function 1.1.2-2 Web Explorer 1. Web Explorer can manage My Disk only using the web browser without requiring additional program. Therefore, Web Explorer can be used not only in the Windows operating system, but also in Macintosh and Linux. 2.
  • Page 10 1.1.2 Executing Main Function 1.1.2-3 Window Explorer 1. When executing Window Explorer, the Window Explorer Connector is executed. 2. WebDisk can be connected to the Window Explorer drive or can be released. 3. Also, Web Disk explorer can be executed after login through a WEBDISK Connector shortcut icon in desktop of PC.
  • Page 11 1.1.2 Executing Main Function 1.1.2-4 Connector for Mac 1. Download WebDisk Connector from Quick Launcher Download in the main screen after login. 2. Double click the downloaded image file (WebDiskConnector.dmg ). Image is mounted in finder. 3. Drag and drop WebDiskConnector to application program folder.

  • Page 12: Folder Definition

    1.1.3 Folder Definition Private WebDisk Folder New folder and corrected folder of folder contents is changed folder shape as T shape. -Shared folder that I approve to share to other User -Assign Authority Establishment per group, user, and Guest user. -Authority Establishment for read, write, read/write.

  • Page 13: Using Webdisk Explorer

    1.2 Using WebDisk Explorer 1.2.1 Menu Definition 1. WebDisk Explorer can be only used in windows operating system. So if you want to use another OS, please use Web Explorer or Windows Explorer. 2. WebDisk Explorer is similar to Windows explorer. It is largely divided into personal and Disk information menu WenDisk Side File/ Folder list and P P P P local PC parts.

  • Page 14: File Management

    1.2 Using WebDisk Explorer 1.2.2 File Management 1.2.2-1 Creating Folder 1. New folders are created in 3 ways, such as selecting ‘New Folder’ in the File menu, selecting ‘New Folder’ after clicking right-mouse on the place where a new folder is to be created or clicking the New Folder icon.
  • Page 15 1.2.2-3 Deleting File/Folder 1. There are 3 ways of deleting a file or folder. After selecting the file or folder to be deleted, select ‘Delete’ in the File menu, or right-click the mouse and select ‘Delete’. The last method is click the ‘Delete’...
  • Page 16 1.2.2-5 File/Folder Upload 1. This function is to upload files or folders in My Disk to a storage space in the Internet. 2. To upload a file or folder, first select the file or folder to be uploaded. Click ‘Upload’ in the File menu drag &...
  • Page 17 1.2.2-6 File/Folder Download 1. This function is to download files which are saved in the Internet storage space into my own disk. 2. To download a file or folder, first select the file or folder to be downloaded. Click ‘Download’ in the File menu, drag &...
  • Page 18 1.2.2-7 upload/download Environment setting 1. This function is to set the environment for upload and download in the Upload and Download window. 2. Exit When Transfer Completed : Selection can be made to automatically close the transfer window after upload/ download. Clear this selection in order to check the transfer status after transfer completion per file.

  • Page 19: Sharing Folder

    1.2.3 Sharing Folder 1.2.3-1 Sharing Folder Setup 1. Select the folder to be shared and click Share in the Tool menu. 2. When the Setup window is displayed, set values as follows and press the Save button to complete setup. a.
  • Page 20 1.2.3-2 Shared Folder Setup 3. Users to share the folder can be selected by searching user/ group on the basis of the user or group name. 4. Users can also be searched for by name. When pressing the Search button without entering search conditions, all users or groups will be displayed.
  • Page 21 1.2.3-3 Changing Shared Folder Setup 1. After selecting the Shared folder to be changed, click ‘Share’ in the tool menu. 2. Change values and press the Save button to complete setup changes. 1.2.3-4 Deleting Shared Folder Setup 1. Methods and functions of deleting Shared folders are the same as for general folder deletion. Refer to the deleting folder section.

  • Page 22: Secure Folder

    1.2.4 Secure Folder 1.2.4-1 Definition of Secure Folder 1. The Secure folder stores files not to be shared due to security-related reasons. 2. Files in the Secure folder are encoded within the server. Therefore, its contents cannot be seen even when files are downloaded not only by the administrator but also other users through the FTP connection.
  • Page 23 1.2.4-3 Using Secure Folder 1. Open Web Disk explorer and click the Secure folder to display a popup screen asking for the Secure folder password as seen below. 2. Enter the Secure folder password created during membership registration. 3. The Secure folder opens if the correct password has been entered.

  • Page 24: Open(Public) Folder

    1.2.5 OPEN(public) Folder 1. OPEN (Public) folder can share for all user. 2. Movie, Music, Photo folder is created automatically. Extra folder will be created freely. 3. Music folder is linked iTunes program. The file in Music folder can be shown on iTunes program. 4.

  • Page 25: System Folder (Usb Auto Copy & Homepage)

    In case you manage private homepage, you approach http://IP address or http://IP address:80 and you can see private homepage. Or you approach http://IPadress:8080, you can see Mbox main page. 1.2.6-1. USB Auto COPY • In case you execute USB Auto Copy, the file in USB equipment will be backup automatically in USBCOPY folder.

  • Page 26: Using Web Explorer

    1.3 Using Web Explorer 1.3.1 File Management 1. Web Explorer can manage My Disk only using the web browser without requiring additional program. Therefore, Web Explorer can be used not only in the Windows operating system, but also in Macintosh and Linux. 2.
  • Page 27 1.3.1-1 File/Folder Upload 1. File upload can be executed by moving to the corresponding folder for upload and selecting the Upload button in the menu list. 2. Select ‘File Transfer One by One’ menu to display the file upload window. 4.
  • Page 28 1.3.1-2 File/Folder Download Click the right button of the mouse 1. For file download, move to the corresponding folder in My Disk and select the file or folder to be downloaded. 2. Select ‘File Transfer One by One’ menu to display the file download window.
  • Page 29 1.3.2 Sharing Folder 1. For share setting, click the ‘Share’ button after checking the folder to be shared. 2. When the share setting window is displayed, setting can be made for group share, user share or guest user share. 3. To administrate sharing, search ID and check the list for sharing to add the ID to the list.

  • Page 30: Attaching File

    1.3.3 Attaching File 1. Link to the file can be attached to a note or mail and sent to other users to be downloaded. 2. Check file to be attached and click the ‘Attach’ button. 3. Enter ID of receiver. Then, enter title and contents. To add more files, search file and press ‘Add’.

  • Page 31: Using Window Explorer

    1.4 Using Window Explorer 1.4.1 Disk Connection 1.4.1-1 Connecting Disk 1. Click ‘Connect Disk’ in Window Explorer connector. 2. Select the name of the disk drive to be connected. Selection can be made among drive names currently not existing in the user’s computer. 3.
  • Page 32 1.4.1-2 Using Disk 1. Check that a new network drive has been connected in ‘My Computer’. 2. Name of network drive consists of an address and login ID. 3. Now, web storage space can be used as if a hard disk drive is attached to the user’s own computer.

  • Page 33: Using Note/Mail

    1.5 Using Note/Mail 1.5.1 Sending Note/Mail 1. Note/ mail box is a convenient tool of communication to simply send and receive messages among users. 2. Note/ mail box consists of ‘From message’, ‘To message’ and ‘Send Note/ Mail’ functions. 3. Click ‘Send Note/Mail’, enter contents and click ‘Send’...

  • Page 34: From Message Management

    1.5.2 From Message Management 1. Newly received notes are marked with ‘new’ in the From Message box. When notes have been read, the ‘new’ icon disappears and time and date are added to ‘Read Date’. In case there are files transferred through the link, the clip icon is displayed in the link part.

  • Page 35: Torrent File Download

    ‘Register Torrent File’ button. Torrent file registration is completed and Register Torrent File window is closed. 4. Up to 30 Torrent files can be uploaded to a Mbox. Up to 5 Torrent files can be uploaded by a single user. 8QLFRUQ ,QIRUPDWLRQ 6\VWHP...

  • Page 36: Torrent Command Button

    1.6.2 Torrent Command button Move STOP Cancel View Detail info Restart 1. Stop Download a. Download can be stopped only while download is in progress. When Stop Download button is clicked, status bar and download rate display stops and download is not carried out any more. b.
  • Page 37 1.7 RSS 1.7.1 File Download from Mininova 1. You can move on RSS Reader page after you click RSS menu on main page in order to RSS Reader. 2. RSS Reader shows you RSS information list of Mininova.org site. 3. You can receive Torrent file at Mininova.org. 4.
  • Page 38 6. In case you click title on RSS Reader, you can see detailed information for item. 7. Detailed information shows title, category for item, updated date, link address for applicable site, torrent file download address, and torrent file size. 8. In case you click ‘torrent file registration’ in detailed looking page, download will be started through torrent file is registered on torrent file download page.

  • Page 39: What Is Blogging Api

    1. Blog Main Menu a. Meta Blog : is a community space where you can access blogs and posts of MBox Blog users b. My Blog : It shows story list made by private persons. It supplies ‘private blog page’ menu and ‘WebDisk file link’.

  • Page 40: Create Blog

    1.8.3 Create Blog 1. If blog-related menus are clicked without creating a blog, you will move to the page where you can create a blog. 2. Enter blog identifier, ID, password and language used. Click 'Create' button to create a blog. 1.8.4 My Blog 1.It is execlusive page for private blog.

  • Page 41: Write Blog & Webdisk File Link

    1.8.5 Write Blog & WebDisk File Link 1. Click ‘WebDisk File Link' button at the top of posting list page to open a page to write a new listing. 2. Title and contents of posting can be entered. Also, open status can be selected. 3.
  • Page 42 1.8.6 Using Web editor Contents in working are previewed in a new Contents in working are saved as source file. window. Select all of the contents written. Move back one stage to the previous work state. Move forward one stage to the work state Font is changed.

  • Page 43: Service Request

    1.9 Service Request 1.9.1 Application for Service and Cancellation 1. If the basically allocated services are not sufficient enough, user must request for additional service. 2. Click ‘service request’. * This function can be only used by the general use. (sysadmin can’t use this function) 3.

  • Page 44: Adding Guest User

    1.10 Guest User 1.10.1 Adding Guest User 1. Using this option general users can generate guest accounts randomly without the assistance of administrator. 2. Click Guest User Management in the Tool menu. 3. When the Guest User Management window is displayed, set ID, name, password and expiration date in the add/ change section on the right and click the Add button.

  • Page 45: Administrator Execution

    2.1 Administrator Execution 1. Administrator Main Menu Administrator menu consists of ‘User Management’ menu for user, applicant, group, guest and administrator management, ‘Statistics Management’ to search service statistics and ‘WebDisk management’ menu to manage basic settings of menus and services and ‘System Management’ menu to manage system, service and Disk and ‘Network management’ menu to setup IP and DDNS.

  • Page 46: User Management

    2.2 User Management 2.2.1 User Management 2.2.1-1 User Management List 1. ‘User Management’ is where general user accounts are managed, such as user service suspension, deletion and modification. 2. Press ‘User Management’ in menu to see major information at a glance, such as user ID, name, total capacity, used capacity, status and expiration date in the list.
  • Page 47 2.2.1-2 User Management Function 1. Stop Service a. To stop service use by a user due to special reasons, select user and click ‘Stop Service’ to suspend service of the selected user. b. User with expired service term is automatically changed to service suspension status.
  • Page 48 2.2.1-2 User Management Function 4. Mail to Selected users E-mail can be sent to a user selected from the list. 5. Sending Mail to all searched users E-mail can be sent to all searched users. When no search conditions have been set, an e-mail is sent to all users.
  • Page 49 2.2.1-3 User Search 1. Simple Search a. This is used to search for users simply by user ID or name. b. First, select the search basis. Then enter contents and click ‘Search’ to display the list of corresponding users. c. If a name like ‘Tom” is selected as the search basis, all users with names including ‘Tom’...
  • Page 50 2.2.2 Applicant 2.2.2-1 Applicant Management List 1. This is where service application by users is managed, such as approval, deletion and holding, etc. for service application. 2. Press ‘Applicant’ in the menu to display a list of applicants and check applicant ID, name, application category, status before and after approval, application date and status of application holding, etc.
  • Page 51 2.2.2-2 Applicant Management Function 1. Service Approval a. Applications by users for membership, capacity increase and extension of the expiration date are included here. b. Application for membership is a request for access to the user web storage service after joining as a member.
  • Page 52 2.2.2-2 Applicant Management Function 3. Hold a. This function is to share the cause for denying approval when approval has to be deferred temporarily for special reasons. b. Click ‘---’ button in the list of applicants to create a window to write down the cause for withholding approval.
  • Page 53 2.2.2-2 Applicant Management Function 4. Mail to selected applicant E-mail can be sent to a applicant selected from a list 5. Sending mail to all searched applicants E-mail can be sent to all applicants to satisfy the search conditions. When no search conditions have been set, an e-mail is sent to all applicants.
  • Page 54 2.2.2-3 Applicant search 1. Simple Search a. This is used to search users simply based on user ID or name. b. Firstly, select the search basis. Then enter contents and click ‘Search’ to display a list of corresponding users. c. If a name like ‘Tom” is selected as the search basis, all users with names including ‘Tom’...

  • Page 55: Group Management

    2.2.3 Group Management 2.2.3-1 Group Management List 1. Groups can be created, modified and deleted. Press ‘Group Management’ in list to view major information at a glance, such as group name, description, number of users and registration date. 2. A single page shows 10 units of group information. The Group list is arranged by the order of names.

  • Page 56: Guest User Management

    2.2.4 Guest User Management 1. Click ‘Guest Management’ to manage guest users created by a user. 2. A list of guest users displays the ID of the guest user, name, ID of user who created the guest user and expiration date. 3.

  • Page 57: Statistics Management

    2.3 Statistics Management 2.3.1 Access Status Statistics 2.3.1-1 Viewing Statistics 1. This function is used to search various statistical data within a specific period. a. User Statistics : Daily statistics on number of users per state b. Login Statistics : Daily statistics on number of logins made c.
  • Page 58 2.3.1-2 Deleting Previous Statistics 1. To prevent unnecessary statistics being left behind for a long period of time, all statistical values before a specific date can be deleted. 2. Enter date and click the ‘Delete Previous Statistics’ button to delete all statistical data prior to the date entered.
  • Page 59 2.3.2 Up/Download Log 1. Up/ download log saves particulars of uploads or downloads made by a user for a specific period of time. 2. However, while information uploaded/ downloaded with Web Disk explorer or Web Explorer is saved, particulars of files uploaded/ downloaded with Window Explorer are not saved.

  • Page 60: Webdisk Management

    2.4 WebDisk Management 2.4.1 Registration Option 2.4.1-1 Registration Option Setup 1. Registration option is used to set various default values. 2. Options for membership registration and options for guest user can be set. 3. Change option and click ‘Save’ to apply the setup. 2.4.1-2 Setup per Option 1.
  • Page 61 2.4.2 Service Status 1. In ‘Members Current Status’, overall member status is displayed as of the current time. a. No. of Active Users : No. of users to normally use the service at the current time b. No. of Guest Users : No. of guest users created by users at the current time c.
  • Page 62 2.4.4 Board 1. It is free communication board. 2. When you write contents, string between “<“ and “>” is not stored. 2.4.5 Open(public) Folder 1. In Open(public) Folder, capacity of TV folder is set and the used space can be checked.

  • Page 63: System Management

    2.5 System Management 2.5.1 System Information 1. System information shows hardware formation information for present equipment. • Formation information is as follows. • Hardware Info. • CPU: It shows the kind and version of main treatment equipment. • Memory: It shows memory size and using capacity per use for present system. •...
  • Page 64 2.5.2 System Management 1. SMTP Server Options : SMTP server must be accurately set to have the mail sending function used in various parts of Web Disk operate normally. After the first installation, set this with SMTP server information currently used by the administrator.
  • Page 65 2.5.2 System Management 4. Clear : System initialization is a functon for turning all set-up information and user accounts(including data) back to initial state. You should re-install with installation program after executing initialization and rebooting. 5. Upgrade a. Upgraded (or debugging) patch file will be downloaded from the Web Disk Customer Center. b.

  • Page 66: Service Management

    2.5.3 Service Management 1. uPnP UPNP allows you to find a device on the network automatically. In an operating system Windows XP or higher, enabling UPNP in a network environment lets you find a device connected in the same network automatically. When you double-click the device thus found, your web browser brings in a relevant web page automatically.
  • Page 67 2.5.3 Service Management 6. SSH SSH is a service performing system commands like Telnet. Unlike Telnet, however, it comes with improved security. To use SSH, you need to install a SSH client on your computer. 7. AppleTalk AppleTalk is a service that lets you share a network with a Apple computer. When you establish a connection as in the following, you can access a space assigned to each user.

  • Page 68: Disk Management

    2.5.4 Disk Management 2.5.4.1 Disk & Volume Information Disk Information Disk Name The name of the disk the system has recognized Disk Model The name of the disk model the system has recognized Amount The size of the disk Status Volumes are not assigned physical ok The disk is physically normal...
  • Page 69 Volume Information Type Indicates whether it is under the extension mode or under the mirroring mode. Size Volume Size In the extension mode, this is equal to the sum of the capacities of the disks assigned the volumes. In the mirroring mode, this is equal to half the sum of the capacities of the disks assigned the volumes.
  • Page 70 2. In case it added new disk, the “disk addition” button is shows up. In case you click Disk Addition, it adds new disk for the expansion mode or mirroring mode according to the selection option of establishment of Mbox.
  • Page 71 $ 8SJUDGH 1. Login by sysadmin (if you want more information, refer to the User Guide.) 2. Select Administrator > Webdisk management menu. At the right screen, you can find the ‘Upgrade’ menu and check the version of WebDisk. 3. Upgrade(or debugging) patch file is downloadable from the www.mvix.net. login to your account at: http://www.Mvix.net 1.
  • Page 72 % $SSOLFDWLRQ • Store any MP3 file in the music folder under the open folder. • Run the iTunes program in your computer. • The name 'Music Box' will show up automatically as a shared item. • The list of MP3 files stored in the music folder of the open folder appears. •...
  • Page 73 % $SSOLFDWLRQ • Connect a external USB disk to a USB port. • If it is connected to a frontside port, it is mounted on /home/USBDISK1; or if it is connected to a backside port, it is mounted on /home/USBDISK2. •...
  • Page 74 & )$4 & D ,QVWDOODWLRQ 6HWXS Check if PC and device are in the same network band. In DOS window, it can be checked if Ping is possible with the IP address of device. (For example, it is normal if response is produced after the command of “ping 192.168.1.3”.) Check if serial number has been correctly entered.
  • Page 75 & )$4 & E 6\VWHP DQG XVHU After login as service administrator, click the corresponding user in user management menu to display window showing detailed information of the user. Press Initialize Password button to change password as of user ID. Once lost, administrator password cannot be retrieved.
  • Page 76 & )$4 & E 6\VWHP DQG XVHU The default value is 13193. Connection is made with default without additional input of port number. In case of port change is inevitable due to various reasons, such as firewall policy, etc., port number of server can be changed in system administrator port setup.
  • Page 77 • Continuously press [Next] button until moving to Mbox search screen. • If equipment is defected in Mbox search screen, Mbox can be accessed by using IP of the equipment detected. • Refer to manual for detailed operations of Installer.exe.
  • Page 78 ONE (1) YEAR from the date of retail purchase by the original end-user purchaser (”Warranty Period”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option, Mbox will either (1) repair the hardware defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product.
  • Page 79 The law provides severe civil and criminal penalties for the unauthorized reproduction, distribution, rental or digital transmission of copyrighted video and audio files. Mbox players are designed to assist you in backing up, storing and reproducing material which you own the copyright for or for which you have obtained permission from the copyright owner. UNLESS YOU OWN THE COPYRIGHT OR HOLD PERMISSION TO COPY FROM THE COPYRIGHT OWNER, YOU MAY BE VIOLATING COPYRIGHT LAW AND BE SUBJECT TO PAYMENT OF DAMAGES AND OTHER REMEDIES.
  • Page 80 Appendix. * &RQWDFW ,QIRUPDWLRQ http://www.mvix.net George lee : Overseas Business Div./ Director george_lee@eunicorn.co.kr Unicorn information system co. ltd Unbo b/d 226-16, sukchon-dong, songpa-gu, Seoul, Korea Tel: 82 2 420 2713 (202) / Fax: 82 2 420 0317...
  • Page 81 Appendix. + *ORVVDU\ UPNP allows you to find a device on the network automatically. In an operating system Windows XP or higher, enabling UPNP in a network environment lets you find a device connected in the same network automatically. When you double-click the device thus found, your web browser brings in a relevant web page automatically.
