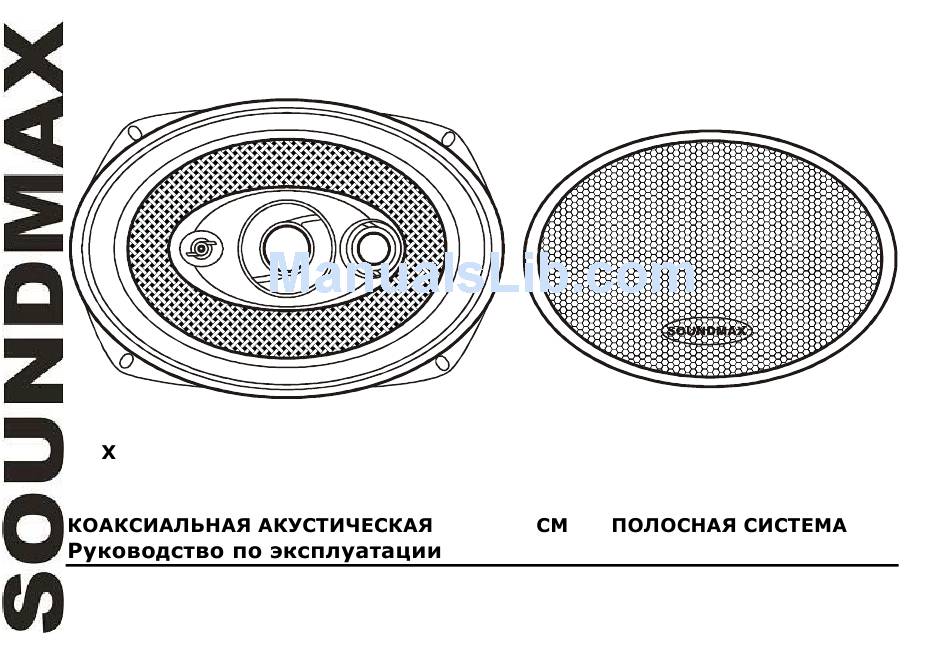

- Page 1 SM-CSM694 24 CM 4-WAY COAXIAL ACOUSTIC SYSTEM Instruction manual 16 X 24...
-
Page 2: Important Safeguards
Description The set of acoustic system includes: - acoustic system - metal grill – 2 pcs - speaker wire – 3 m - screw – 8 pcs - clip – 8 pcs (x 8) (x 8) Important safeguards The owner’s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. -
Page 3: Mounting The Speakers
Never run the wiring on the outside of the vehicle or under it where it can be damaged by road hazards or the moving parts of the vehicle. Use existing wire channels, sills, panels and molding strips inside the vehicle to hide the wiring for safety and a neat appliance. - Page 4 If it will be necessary to cut steel, reinstall the cosmetic panel in place and use the hole you have previously cut as a template. This will help you ensure proper cutting and a good fit. Now, mark the locations for the speakers mounting screws, remove the panel and drill the screw holes.
- Page 5 Turn your system on and confirm the speakers operation first at a low volume and then you may increase the volume as you desire. After installation of the acoustic system and having tested it the speaker grill will have to be inserted. Turn on you system and follow these steps carefully: - locate the speaker grill;...
- Page 6 If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION The volume control regulator set Adjust sound level in the minimal position Check to see that all the power and...
-
Page 7: Specification
Specification Loudspeaker one woofer: 16x24 m (6”x 9”) carbon compound kevlar woven cone midrange: 5.8 m (2.3”) mylar 15+20 mm piezo tweeter Magnet main: ferrite 30 Oz midrange: ferrite tweeter: ferrite Peak output power 240 W Rated output power 120 W Impedance Sensitivity 92 dB... - Page 8 – 2 – 3 – 8 – 8 (x 8) ( 8)
- Page 10 =220*151 , Ø =5...
- Page 13 : 16 24 (6”x 9”) : 5,8 (2,3”) : 15+20 (850 ) 30-22000 263,5 x 183 x 114 / 4,6...
