Summary of Contents for SoundMax SM-CSA502

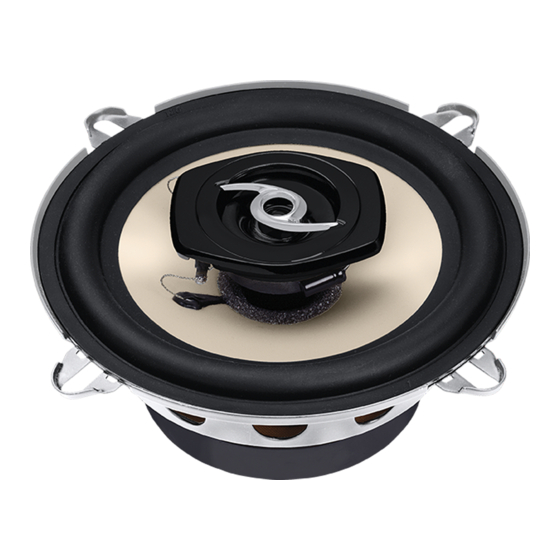

- Page 1 SM-CS 502 13 cm 2-way coaxial car speakers Instruction manual...
- Page 2 Description The set of acoustic system includes: - acoustic system - metal grill 2 pcs - speaker wire - screw 8 pcs - clip 8 pcs (x 8) (x 8)
-
Page 3: Important Safeguards
Important safeguards The owner s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the speakers where they may be subjected to excessive heat moisture, dust or where they will be kicked repeatedly, brushed or bumped. -
Page 4: Mounting The Speakers
Mounting the speakers Installation kits are available from your dealer or local stereo shop to help make your installation easy. These kits also give your installation a clean, custom appearance. Questions about installations methods please consult a professional auto sound dealer/installer for assistance. Choose the place of installation for acoustic system. - Page 5 Securing the speakers Position the speaker into the mounting hole and re-confirm the correct mounting location and hole placement. Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip. Place the speaker into the hole, align the holes and proceed to insert the screws.
- Page 6 If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position Bad power connections...
-
Page 7: Specification
Specification Loudspeaker one woofer: 13 cm (5 ) high quality injection cone Magnet main: ferrite 10 Oz magnet tweeter: neodymium Peak output power 140 W Rated output power 70 W Impedance Sensitivity 91 dB Frequency response 60-20000 Hz Dimensions 155.5 x 71 mm Net / Gross weight 0.65 kg / 1.5 kg Gift box dimension (L x H x W) - Page 8 (x 8) (x 8)
- Page 10 =116 , Ø =5...
- Page 13 : 13 (5 ) (311 ) 60-20000 155,5 0,65 / 1,5...
