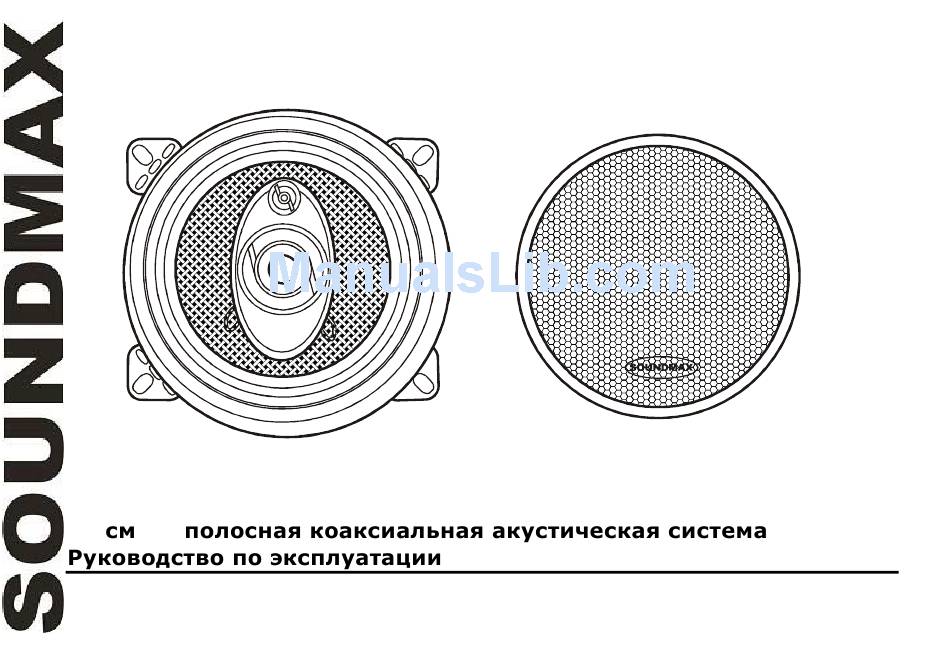

- Page 1 SM-CSM403 10 cm 3-way coaxial acoustic system Instruction manual...
-
Page 2: Important Safeguards
Description The set of acoustic system includes: - acoustic system - metal grill – 2 pcs - speaker wire – 3 m - screw – 8 pcs - clip – 8 pcs (x 8) (x 8) Important safeguards The owner’s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. -
Page 3: Mounting The Speakers
Make absolutely sure that the terminals for the speakers are connected to the proper outputs from the music source. Never run the wiring on the outside of the vehicle or under it where it can be damaged by road hazards or the moving parts of the vehicle. - Page 4 If it will be necessary to cut steel, reinstall the cosmetic panel in place and use the hole you have previously cut as a template. This will help you ensure proper cutting and a good fit. Now, mark the locations for the speakers mounting screws, remove the panel and drill the screw holes.
- Page 5 Turn your system on and confirm the speakers operation first at a low volume and then you may increase the volume as you desire. After installation of the acoustic system and having tested it the speaker grill will have to be inserted. Turn on you system and follow these steps carefully: - locate the speaker grill;...
- Page 6 If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION The volume control regulator set Adjust sound level in the minimal position Check to see that all the power and...
-
Page 7: Specification
Specification woofer: 10 cm (4”) carbon compound kevlar woven Loudspeaker one midrange: 30 mm mylar tweeter: 15 mm piezo main: ferrite 8 Oz Magnet midrange: ferrite tweeter: ferrite Peak output power 100 W Rated output power 50 W Impedance Sensitivity 91 dB Frequency response 80-20000 Hz... - Page 8 –2 – 3 – 8 – 8 (x 8) ( 8)
- Page 10 =102 , Ø =5...
- Page 13 : 10 (4”) : 30 (1,2”) : 15 (226,8 80-20000 133,5 x 65,5 0,56 / 1,3...
