Summary of Contents for Zanussi ZHI 615

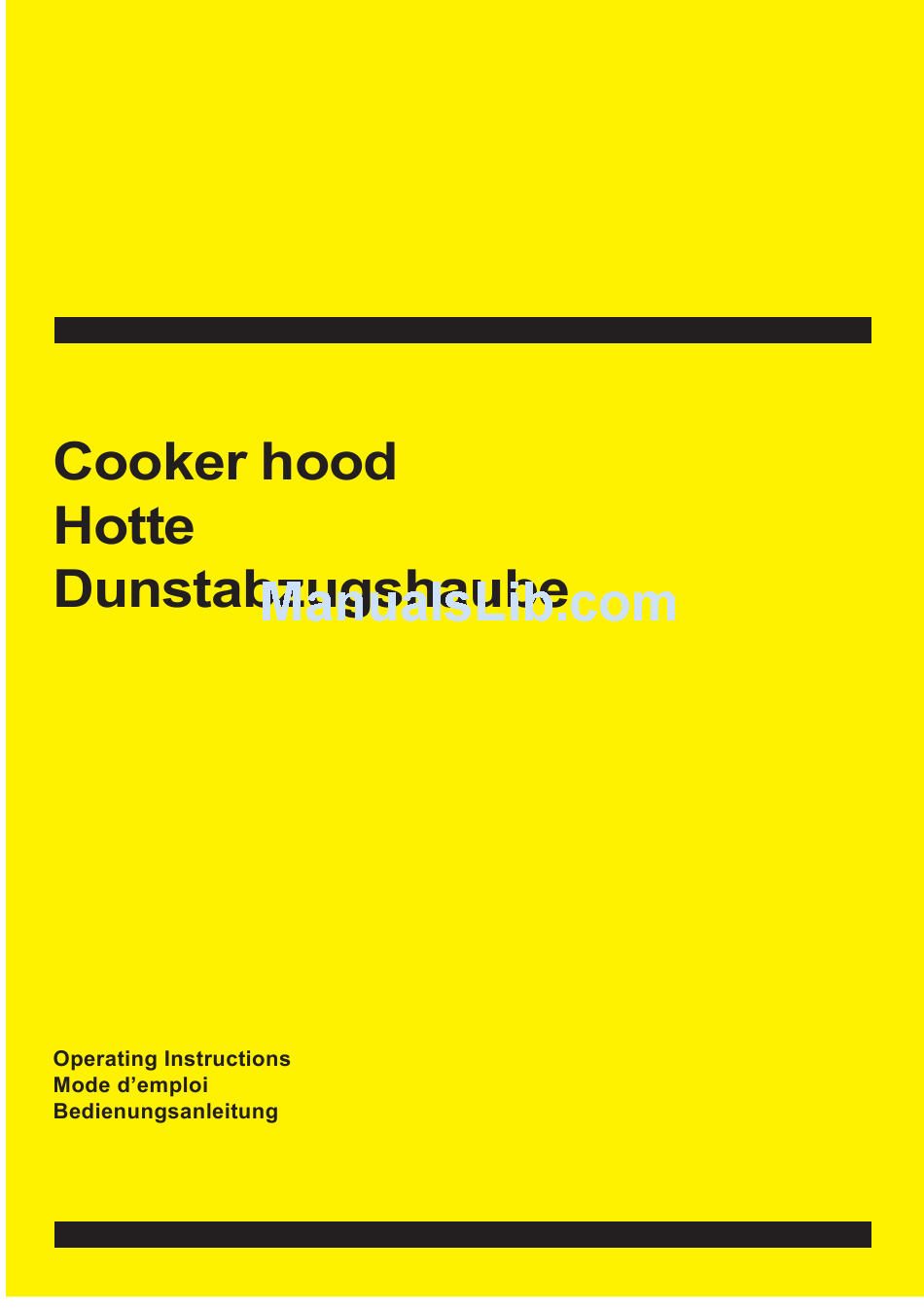

  • Page 1 Cappa Campana Dampkap ZHI 615 Istruzioni per L'uso Manual de instruccoines Gebruiksaanwijzing...
  • Page 2: General Information

    Part 1 - INSTALLATION INSTRUCTIONS 1 - GENERAL INFORMATION This hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recirculation mode (internal recycling).
  • Page 3 with the cupboards on either side (fig. 2). In some models the rear hooks can only be adjusted horizontally (fig. 3), in any case, after hooking the hood to the wall it will always be necessary to adjust the depth of the metal spacer on the lower part of the hood (fig.
  • Page 4 2 - USE A microswitch S activated by movement of the front panel turns the lighting system on and off and activates switching on and off of the motor at the pre-selected speed. Control panel (3 switches) (fig. 9) SWITCH L = controls the worktop illumination SWITCH M = switches the motor on or off SWITCH V = controls the fan speed Control panel (2 switches) (fig.
  • Page 5 3.4 - Lighting a - Two 40W lamps ensure the worktop lighting. These lamps can be reached by removing the metal grille. b - Should the two lamps fail to work, open the metal grille and ensure they are correctly screwed into the holder.
  • Page 8 6002439_01 041105...
