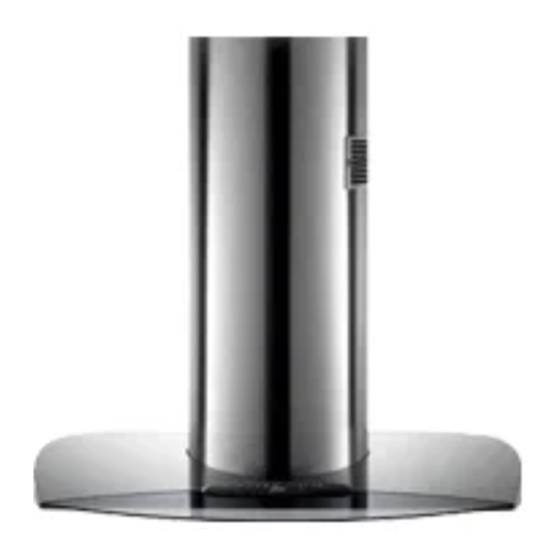

Zanussi ZHC 928 Installation, Use And Maintenance Handbook
  1. Manuals
  2. Brands
  3. Zanussi Manuals
  4. Ventilation Hood
  5. ZHC 928
  6. Installation, use and maintenance handbook

Zanussi ZHC 928 Installation, Use And Maintenance Handbook

Hide thumbs

Advertisement

Quick Links

Download this manual
Cappa
Cooker hood
Hotte de cuisine
Dunstabzugshaube
Dampkap
ZHC 928
MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE
INSTALLATION, USE AND MAINTENANCE HANDBOOK
MANUEL D'INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN
HANDBUCH FÜR INSTALLATION, BEDIENUNG UND WARTUNG
INSTRUCTIES VOOR MONTAGE, GEBRUIK EN ONDERHOUD

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZHC 928 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zanussi ZHC 928

Summary of Contents for Zanussi ZHC 928

  • Page 1 Cappa Cooker hood Hotte de cuisine Dunstabzugshaube Dampkap ZHC 928 MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE INSTALLATION, USE AND MAINTENANCE HANDBOOK MANUEL D’INSTRUCTIONS POUR L’INSTALLATION, L’EMPLOI ET L’ENTRETIEN HANDBUCH FÜR INSTALLATION, BEDIENUNG UND WARTUNG INSTRUCTIES VOOR MONTAGE, GEBRUIK EN ONDERHOUD...
  • Page 2 Dear Customer, If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performan- ce and will remain efficient for many years to come.
  • Page 3 • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
  • Page 6 • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. •...
  • Page 7 Upper frame • Align the power supply cable feed hole • Fix the upper frame to the ceiling or shelf using: • For concrete ceilings, use the appropriate plugs for the screw size (not provided). • For hollow brick ceilings of wall thickness of approximately 20 mm: use 4 plugs 11 and 4 screws 12h, provided.
  • Page 8 • Position the upper chimney section and fix the upper part to the frame using the 2 screws 12c provided. • Similarly, position the lower chimney section without fixing it, ensuring that the outlet from connector 15 is in line with the chimney intake. •...
  • Page 9 Light Switches the lighting system on and off. Motor running led. Optimum speed led. Intensive speed led. Grease filters saturated alarm led. Activated charcoal filter exhausted alarm led. To disable this indicator (Ducted hoods) simultaneously press buttons R (using a sharp object, for example a pencil) and V2. To enable it again, press buttons R and V3.
  • Page 10 Resetting the alarm signal • Press button R, using a sharp object (for example the tip of a pencil). • The Alarm indicator led S4 will go out. Cleaning the filters • The filters are washable and must be cleaned when led S4 flashes or at least every 2 months of operation, or more frequently for particularly heavy usage.
  • Page 11 • The filter is not washable and cannot be regenerated. It must be replaced when led S5 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on. Resetting the alarm signal •...
