2.1.2.1. Cabling Requirements for UTP Ports ................11 2.1.2.2. Cabling Requirements for 1000SX/LX/ZX SFP Modules..........11 2.1.3. Management options available with the POEFEM24T2SFP ........12 2.1.3.1. Configuring the POEFEM24T2SFP through the RS-232 serial port ......12 2.1.3.2. Configuring the POEFEM24T2SFP through the Ethernet Port........14 3-1. W ................17...

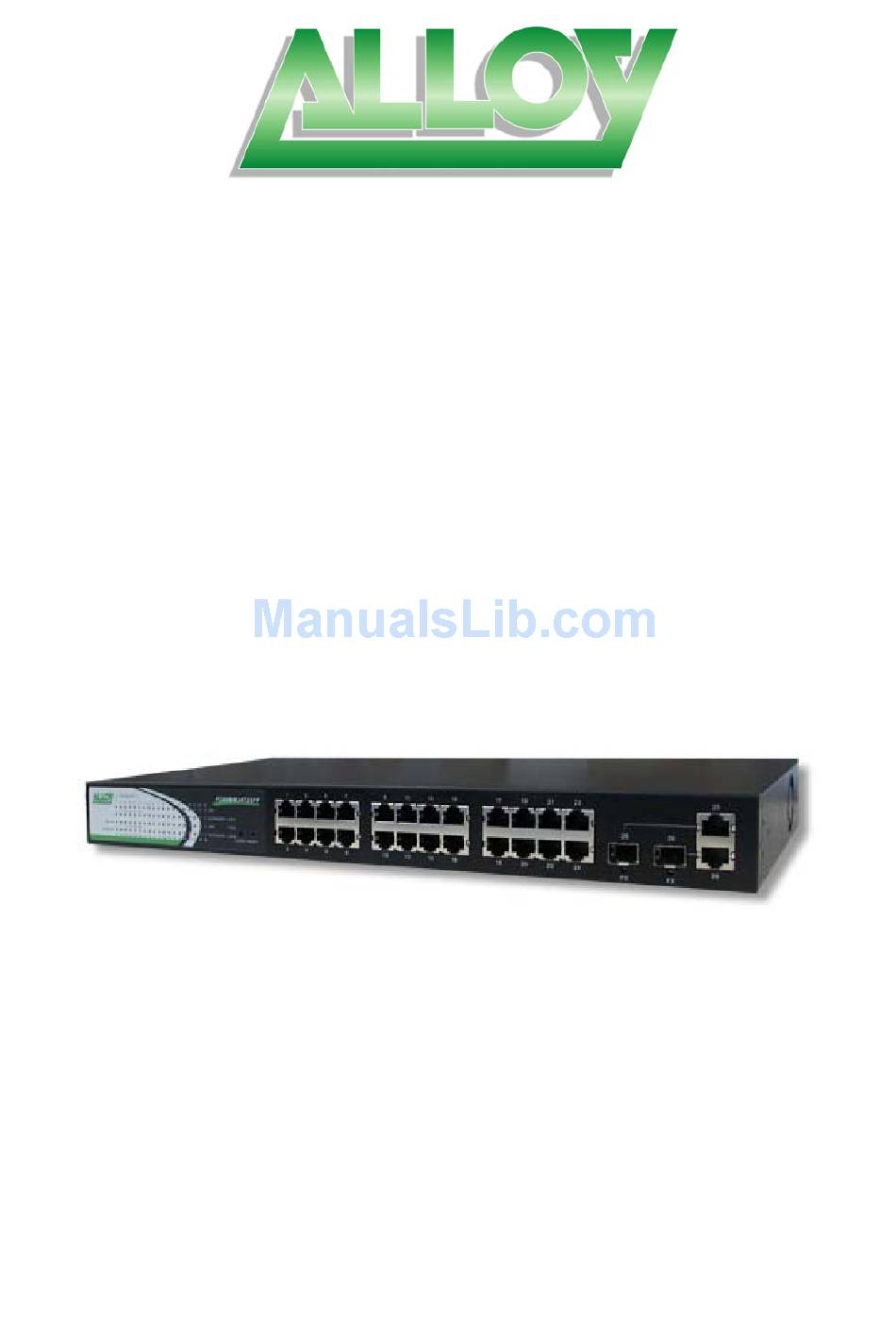

POEFEM24T2SFP User Manual About this User Manual This User Manual will guide you on procedures to install, configure and monitor the Alloy 24 port Fast Ethernet SNMP Managed POE Switch utilising the built-in web management interface and also the CLI.
These and other intelligent network features are all supported from the POEFEM24T2SFP switch. All ports of the POEFEM24T2SFP support the IEEE 802.3af PoE standard for Power Injection (PSE). This injects PoE power onto the Cat5 Cable when it detects the presence of a PoE compliant device.
Page 7
1000Mbps single fibre WDM transceivers are designed with an optic Wavelength Division Multiplexing (WDM) technology that transports bi-directional full duplex signals over a single fibre core. • Key Features of the POEFEM24T2SFP SNMP Managed POE Switches QoS: These switches offer powerful Quality of Service (QoS) functions. This feature...
Please notify your supplier immediately if any of the aforementioned items are missing or damaged. 1.3. Features The Alloy POEFEM24T2SFP provides a comprehensive range of features: Hardware • 24 10/100Mbps Auto-negotiation Fast Ethernet POE Ports • 2 Paired 10/100/1000Mbps or 1000Mbps SFP Mini-GBIC Ports •...
Gigabit Dual Media Port(25~26): SFP/TP RESET button is used to restore the system default TP Port Status Indication LEDs settings. Fibre Port Status Indication LEDs Fig. 1-2 : Front View of the POEFEM24T2SFP Switch LED Indicators Colour Function System LED POWER Green...
1.5. Overview of the Optional SFP Modules With the POEFEM24T2SFP switch, the SFP ports are paired with RJ-45 copper ports 25 and 26. Only one of any given paired port can be used. In this manner, these paired ports can be seen as ‘Dual Media’...
POEFEM24T2SFP User Manual 2. Installation 2.1. Starting the POEFEM24T2SFP SNMP Managed POE Switches This section provides a quick start guide for: • Hardware and Cable Installation • Management Station Installation • Software booting and configuration 2.1.1. Hardware and Cable Installation Please Note: ⇒...
Page 14
• Power On Please Note: ⇒ The POEFEM24T2SFP uses a 100-240 VAC, 50-60 Hz power supply. The power supply will automatically convert your local AC power source to DC power for use by the switch. 1. Ensure that the power switch is turned off before connecting mains power.
These are SX, LX, LHX, ZX and EZX. The majority of mini-GBIC modules available use a LC type connector. The connector types used currently on Alloy mini-GBIC modules are LC and WDM SC, for the following module types: •...
2.1.3.1. Configuring the POEFEM24T2SFP through the RS-232 serial port When configuring the POEFEM24T2SFP via the RS-232 console please connect the switch via the provided serial cable to a DCE device such as a PC. Once you have connection run a terminal emulation program such as Hyper Terminal.
POEFEM24T2SFP User Manual 2.1.3.2. Configuring the POEFEM24T2SFP through the Ethernet Port There are three different methods of configuring the POEFEM24T2SFP through the Ethernet Port. They are CLI, Web Browser and via SNMP Management Software. We will not cover SNMP management in this manual as it will vary depending on the Network Management Software that is being used.
Page 20
Username: admin Password: admin Once you have entered the IP address of the POEFEM24T2SFP into a web browser you will be prompted with a login screen where you will need to enter a valid username and password to gain access to the switch. The default username and password are shown above.
POEFEM24T2SFP User Manual 3-1-2. IP Configuration The IP configuration is used to set the IP settings in the switch. The POEFEM24T2SFP supports either a static IP address allocated via the system administrator or can be assigned an IP address dynamically from a DHCP server on your network. The IP address is used to gain access to the management functionality of the switch.
POEFEM24T2SFP User Manual 3-1-3. Time Configuration The POEFEM24T2SFP provides two methods to keep the switch’s time settings correct, they are via manual input and via a Time Server on the internet. If you are manually entering your time settings enter the “Year”, “Month”, “Day, “Hour”, “Minute” and “Seconds” into the space provided.
The account configuration is used to create or modify guest and administrator accounts. The POEFEM24T2SFP allows the administrator to create up to 5 guest accounts, accounts can only be created by the administrator. When a Guest user logs into the switch they will not be able to modify any parameters, they just have read only rights to the switch.
The Virtual Stack function allows multiple POEFEM24T2SFP switches to be managed from a single IP Address. One POEFEM24T2SFP switch will be configured as a Master and all other POEFEM24T2SFP switches will be configured as Slaves. You can then apply a group name to the virtual stack, only one master switch can exist within the same group name.
Page 35
If the port does not have an active link and is configured to run in auto- negotiation mode then Auto will be displayed. Flow Control: Shows the port’s flow control status. The POEFEM24T2SFP switches support both Backpressure flow control for Half Duplex and Pause flow control for Full Duplex.
Page 39
Duplex (1G/Full). (1G/Full Port 25 and 26 only) Default: Auto Flow Control: Shows the port’s flow control status. The POEFEM24T2SFP switches support both Backpressure flow control for Half Duplex and Pause flow control for Full Duplex. Select Enable to enable flow control and Disable to disable flow control.
- but still allow them to run on the switch as in the case of a normal Ethernet device. The POEFEM24T2SFP uses an injection voltage of about 48VDC on pins 1, 2, 3, 6 3-3-1. POE Status Fig.
SMI syntax. The SNMP agent is running on the switch to respond to requests issued by an SNMP manager. The POEFEM24T2SFP allows the administrator to turn the SNMP agent on or off. If SNMP is set to “Enable”, the SNMP agent will be started. All supported MIB OIDs, including RMON MIB, can be accessed via an SNMP manager.
Page 50
Default port number: 162 Trap: In the POEFEM24T2SFP, there are six trap hosts supported. Each of them has its own community name and IP address; which are user-definable. To configure a Trap host you will need a network management System to receive the Trap messages from the switch.
POEFEM24T2SFP User Manual 3-5. DHCP Boot The POEFEM24T2SFP supports DHCP Broadcast Suppression allowing the switch to suppress broadcast traffic. If a network loses power and then regains power and all computers on the network boot at the same time, a lot of broadcast traffic is generated especially if all nodes on your network are using DHCP.
The POEFEM24T2SFP supports all functions of IGMP Snooping including query, report and leave. IGMP Snooping is used by the switch to learn who belongs to a multicast group and also update the multicast table within the switch with new multicast members.
POEFEM24T2SFP User Manual 3-6-2. Allowed Group The POEFEM24T2SFP allows the administrator to lock down multicast members by IP Range, VLAN ID, and port number. If the administrator only wants to enable IGMP Snooping on ports 1, 2, 3 and 4 then this can be done in this section.
POEFEM24T2SFP User Manual 3-7. VLAN (Virtual Local Area Network) The POEFEM24T2SFP supports both 802.1q Tagged based VLAN’s and Port-based VLAN’s. VLAN’s are used to logically separate your network into smaller more defined networks. VLAN’s help to reduce broadcast traffic across your network as all broadcast traffic will be limited to the VLAN group in which it belongs.
I am alive. When the POEFEM24T2SFP is the root bridge of the network, for example all other bridges will use the hello time assigned by this switch to communicate with each other.
Page 77
POEFEM24T2SFP User Manual Max. Age: If the POEFEM24T2SFP is the root bridge, the whole network will apply this figure as their maximum age time. When a switch receives a BPDU message originating from the root bridge and if the message age exceeds the maximum age of the bridge, the bridge will treat the root bridge as malfunctioned and issue a Topology Change Notification (TCN) BPDU to all other bridges.
Using Static trunking at both ends of the link is highly recommended. The POEFEM24T2SFP allow up to 3 LACP trunk groups and another additional 3 trunk groups for static trunking. Only 3 groups can be used at one time. Each trunk group can contain a maximum of 4 member ports.
POEFEM24T2SFP User Manual 3-13. Alarm Configuration The POEFEM24T2SFP supports a number of trap messages that can be sent to an administrator if certain events occur on the switch. The switch offers 24 different trap events that can be sent to the administrator in 3 different ways; email, mobile phone SMS or trap.
The Alarm Configuration is used to configure who should receive the trap messages via Email, SMS or both which have been sent from the POEFEM24T2SFP. Up to 6 email addresses can be entered as well as 6 SMS mobile phone numbers. If using SMS you will need to enter the SMS ISP details.
POEFEM24T2SFP User Manual 3-14. Configuration The POEFEM24T2SFP supports multiple configuration files to be used by the administrator including the default configuration, start configuration and user configuration. In this section the administrator can save the switch’s configuration, restore the switch to factory default and also save the current configuration as the startup configuration when the switch is re-booted.
User-Conf configuration file. 3-15. Security The Mirror function of the POEFEM24T2SFP switches is used to capture data from a particular port on the switch. Any port on the switch can be selected as the monitoring port; this port will be used to capture data from another port on the switch using third party data capturing software.
POEFEM24T2SFP User Manual 3-16. Bandwidth The Bandwidth Management function of the POEFEM24T2SFP switches is used to limit the bandwidth a port may use when sending or receiving data. When limiting received data you can limit the bandwidth on a particular type of data, including all Traffic or Multicast and Broadcast Traffic.
DSCP Setting Function Description: The POEFEM24T2SFP allows the administrator to configure priority levels based on the 6-bit field in the DSCP of the IP packet. The 6-bit field allows a total of 64 different traffic classes in which you can set a High or a Low priority.
POEFEM24T2SFP User Manual 3-18. Diagnostics Three Diagnostic tools are supported in the POEFEM24T2SFP including Diagnostics, Loopback test and Ping test. 3-18-1. Diag Fig. 3-71 Function name: Diagnostics Function description: Provides a basic set of Diagnostic functions to allow the administrator to diagnose whether the switch is working correctly.
Loopback Test Function description: The POEFEM24T2SFP supports two types of loopback tests including an Internal and an External loopback test. The internal loopback test is an internal test and no test signal is sent out of the switch. The external loopback test will send the test signal to its link partner to check if the port has got an active link.
Fig. 3-73 Function name: Ping Test Function description: The POEFEM24T2SFP supports a ping test function to allow the switch to test communication between other IP based devices. Parameters description: IP Address: Enter an IP Address that you would like to test connectivity between.
Function description: The Trap Log Data displays all SNMP Private trap events, SNMP Public traps and all other user logs. The POEFEM24T2SFP supports up to 120 log entries. Parameters description: Displays the order number of all entries in the log.
POEFEM24T2SFP User Manual 3-21. Firmware Upgrade The POEFEM24T2SFP allows the administrator to upgrade the firmware to improve the features and capabilities of the switch. The firmware is upgraded via a TFTP server using any Ethernet port on the switch. Fig. 3-76...
POEFEM24T2SFP User Manual 3-22. Reboot The POEFEM24T2SFP allows the Administrator to reboot the switch from the web management you can also reboot the switch using the reset button on the front panel of the switch. Fig. 3-77 Function name: Reboot...
4-1. CLI Management Refer to chapter 2 for basic installation. When configuring the POEFEM24T2SFP via the RS-232 console please connect the switch via the provided serial cable to a DCE device such as a PC. Once you have connection run a terminal emulation program such as Hyper Terminal.
Fig. 4-1 4-2. Commands of the CLI To display the list of commands that are supported on the POEFEM24T2SFP CLI type “?” and press enter. All commands on the switch are divided into 2 groups Global commands and Local commands. The Global commands include “exit”, “end”, “help”, “history”, “logout”, “save start”, “save user”, “restore default”...
Page 132
POEFEM24T2SFP User Manual Syntax: set location <location string> Description: Enter a descriptive location for the POEFEM24T2SFP. Argument: String length up to 32 characters. Possible values: a, b, c, d, ... ,z and 1, 2, 3, …. etc. Example: POEFEM24T2SFP(system)# set location Canberra...
Page 137
: daylight saving start month/day/hour : daylight saving end month/day/hour : Month (01-12) : Day (01-31) : Hour (00-23) Example: POEFEM24T2SFP(time)# set daylightsaving 3 10/12/01 11/12/01 Save Successfully show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,” Timezone”, ”...
Page 154
<class>: class of service setting. 1: high, 0: low Example: POEFEM24T2SFP(qos)# set pri-tag 1-10 1-2 1 : Sets a high priority level to all packets containing a VLAN tag of 1 or 2 to all ports from 1 through to 10.
Page 155
<tos-range>: syntax: 1,5-7, available from 0 to 7 <class>: 1: high, 0: low Example: POEFEM24T2SFP(qos)# set tos 1-5 0-3 0 : Sets a low priority to all packets containing a TOS filed ranging from 0 through to 3 for all ports from 1 through to 5.
Page 159
POEFEM24T2SFP(snmp)# set set-community private : Sets the set-community name to private. POEFEM24T2SFP(snmp)# set trap 1 192.168.1.1 162 public : Sets trap 1 host IP address of 192.168.1.1 using port number 162. The community name is set to public. Any SNMP traps will be sent to the IP address specified above.
Page 164
1 to 26 Example: POEFEM24T2SFP(vlan)# set tag-group 2 VLAN-2 2-5, 6 0 : Creates a Tag-based VLAN group with a VID of 2, and a group name of VLAN-2. The ports that will belong to this group are 2 to 5 and 6, sym vlan set to symmetric.
Page 180
Leave Time must equal at least double the Join Time. Example: POEFEM24T2SFP(gvrp)# set timer 2-8 25 80 2000 : Sets the GVRP timer for ports 2 through to 8 with a join time of 25, a leave time of 80 and a leave all time of 2000.
Page 186
<Max. Age>: 6 to 40. <Forward Delay>: 4 to 30. Example: POEFEM24T2SFP(stp)# set config 61440 2 20 15 : Configures the STP parameters as follows, Bridge Priority of 61440, Hello Time of 2, Max Age of 20 and a Forward Delay of 15.
Page 187
<admin p2p>: auto / true / false Example: POEFEM24T2SFP(stp)# set port 1-26 0 128 yes auto : Configures ports 1 through to 26 with a path cost of 0, priority of 128, edge port is set as yes and the admin P2P is set to auto.
Page 198
Possible value: <port-number> : 1~65535, default is 1812 Example: POEFEM24T2SFP(802.1x)# set state 192.168.1.115 1812 WinRadius : Configures the switch to use a RADIUS Server with an IP Address of 192.168.1.115 using port 1812 and a secret key of WinRadius. set mode Syntax: set mode <port-range>...
Page 216
Description: Used to test connectivity between other IP based devices on your network. Argument: [ip] : ip address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. alloy.com.au Example: POEFEM24T2SFP(diag)# ping 192.168.1.115 Gateway : 192.168.1.253 192.168.1.115 is alive.
