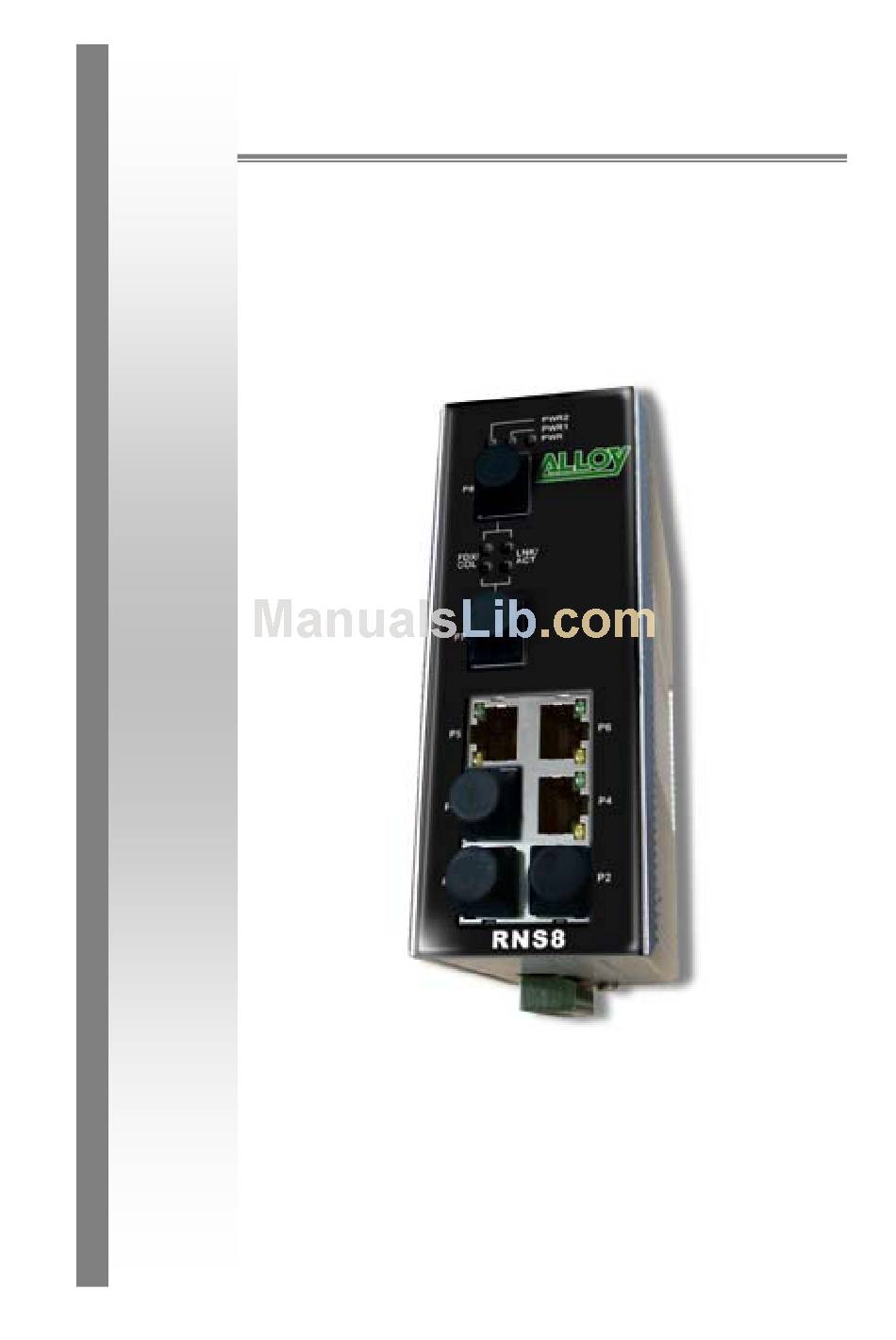

- Page 1 Alloy RNS5/8 Industrial 5-port/8-port Ethernet Rail Switch User’s Manual Rev.1.1 20-Jan-2005...
-
Page 2: Table Of Contents
Content Introduction... 1 Features ... 1 Package Checklist... 2 Hardware Description ... 3 Dimensions ... 3 Front Panel... 3 Bottom View ... 5 Wiring the DC Power Inputs... 5 LED Indicators... 6 Ports... 8 Cabling ... 9 DIN-Rail Mounting... 10 Wall Mounting ... -
Page 3: Introduction
Ethernet network, but also provides redundant power inputs and reverse polarity protection. In addition, the RNS5/8 is manufactured in an IP30 aluminum case, and has passed several safety certifications, ensuring customers a cost-effective, safe, and reliable industrial device. -
Page 4: Package Checklist
Package Checklist Alloy RNS5/8 Industrial 5-port/8-port Ethernet Rail Switches are packaged with the following items: RNS5/8 Industrial 5-port/8-port Ethernet Rail Switch One DIN-Rail clip (attached to the RNS5/8) One wall mounting plate and six screws User’s manual CD-ROM RNS5/8 Switch Wall Mounting Plate Contact your sales representative if any item is missing or damaged. -
Page 5: Hardware Description
RNS5/8 Industrial 5-port/8-port Ethernet Rail Switch dimensions (W x H x D) are 54mm x 135mm x 105mm Front Panel The Front Panel of the RNS5 Industrial 5-port Ethernet Rail Switch is shown in Figure A. UTP Ports Figure A. Front Panel of the RNS5 Industrial 5-port Ethernet Rail Switch... - Page 6 The Front Panel of the RNS8 Industrial 8-port Ethernet Rail Switch is shown in Figure A. LED Indicators UTP Ports Figure A. Front Panel of the RNS8 Industrial 8-port Ethernet Rail Switch...
-
Page 7: Bottom View
DC power inputs, Alarm output and one DC IN power jack for an additional AC/DC power adapter. Figure B. Bottom view of the RNS5/8 Industrial 5-port/8-port Ethernet Rail Switch Wiring the DC Power Inputs Follow the steps below to wire RNS5/8 dual DC power inputs. -
Page 8: Led Indicators
LED Indicators There are 5 diagnostic LEDs and 8 Port LEDs located on the Front panel of the RNS5 Industrial Ethernet Rail Switch. These LED indicators provide administrators with real-time system status. Table 1 gives descriptions of the functions of each LED indicator. - Page 9 Port LED Port Status (Port 1 to Port 4) There are 7 diagnostic LEDs and 12 Port LEDs located on the Front panel of RNS8 Industrial Ethernet Rail Switch. These LED indicators provide administrators with real-time system status. Table 2 gives descriptions of the function of each LED indicator.
-
Page 10: Ports
Port Status (Port 1 to Port 6) Ports RJ-45 ports (Auto MDI/MDIX): RNS5 has five 10/100 Mbps auto-sensing ports for 10Base-T or 100Base-TX device connection. The UTP ports will auto-detect 10Base-T and 100Base-TX connections. Auto MDI/MDIX allows users to connect another switch or workstation without changing straight through or crossover cabling. -
Page 11: Cabling
Fig C Straight Through Cabling Schematic All ports of RNS5/8 support the auto-MDI/MDI-X function. When you use an Ethernet cable to connect other devices, such as computers, switches or hubs, pin 1, 2, 3, and 6 of the 8-pin RJ45 connector are used to communicate with the connected devices. -
Page 12: Mounting Installation
DIN-Rail Mounting The DIN-Rail clip is already attached to the RNS5/8 when packaged. If the DIN-Rail clip is not screwed on the RNS5/8, follow the instructions and the figure below to attach the DIN-Rail clip to the RNS5/8. Rear Panel of the RNS5/8 1. - Page 13 Follow the steps below to mount the RNS5/8 to the DIN-Rail track: First, insert the upper end of the DIN-Rail clip into the back of the DIN-Rail track from its upper side. Lightly push the bottom of the DIN-Rail clip into the track.
-
Page 14: Wall Mounting
Wall Mounting Follow the steps below to install the RNS5/8 with the wall mounting plate. 1. To remove the DIN-Rail clip from the RNS5/8, loosen the screws from the DIN-Rail clip. 2. Place the wall mounting plate on the rear panel of the RNS5/8. -
Page 15: Hardware Installation
1. Take your RNS5/8 Industrial 5-port/8-port Rail Switch out of the package box. 2. Check if the DIN-Rail clip is attached to the RNS5/8. If the DIN-Rail clip is not attached to the RNS5/8, refer to DIN-Rail Mounting section for DIN-Rail installation. - Page 16 4. Pull the terminal block off the RNS5/8 and wire the power lines. Refer to the Wiring the DC Power Inputs section for how to wire the power inputs. 5. PWR1 and PWR2 dual power inputs can be connected to power sources simultaneously.
- Page 17 Command, and click on OK to continue. 10.2 Type ping 192.168.1.1 command to check the connection. Here we use IP address 192.168.1.1 as an example. 11. Repeat step 10 to make sure that the connection of each device connected to the RNS5/8 is successfully established.
- Page 18 14. Exit the Command Line mode, and connect PWR1 power input. .Your RNS5/8 has been tested and the installation is complete.
-
Page 19: Trouble Shooting
Trouble shooting Make sure you are using the correct VDC power supplies (12 to 48 VDC) or power adapters. Do not use power adapters with DC output over 48V. It will damage the device. Select Ethernet cables with specifications suitable for your applications to set up your system. -
Page 20: Technical Specifications
Store and Forward Transmission 14,880 pps for Ethernet port Rate 148,800 pps for Fast Ethernet port MAC address RNS5: 1K MAC address table table size RNS8: 2K MAC address table RNS5: 512Kbits Memory Buffer RNS8: 1024Kbits 10BaseT: twisted-pair UTP/STP Cat. 3, 4, 5... - Page 21 VDC power inputs. Power RNS5: 2.8 Watts consumption RNS8: 4.6 Watts Packet throughput RNS5: 0.74Mpps @ 64bytes (5TX) ability RNS8: 1.19Mpps @ 64bytes (8TX) Installation DIN-Rail kit and wall mounting panel Operating -10°C to 70°C...
- Page 22 IEC60068-2-6 (Vibration)
