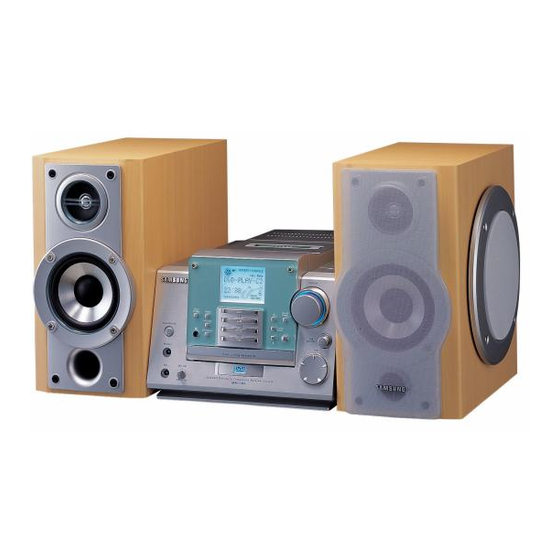

Samsung MM-ZB9 Instruction Manual

Micro component audio system mp3-cd/cd-r/rw playback
Hide thumbs Also See for MM-ZB9:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
MICRO COMPONENT
AUDIO SYSTEM
MP3-CD/
CD-R/RW PLAYBACK
MM-ZB9
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung MM-ZB9

Summary of Contents for Samsung MM-ZB9

  • Page 1 MICRO COMPONENT AUDIO SYSTEM MP3-CD/ CD-R/RW PLAYBACK MM-ZB9 Instruction Manual...

  • Page 2: Safety Warnings

    Safety Warnings CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 KLASSE 1 LASER PRODUKT LASER product. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT Use of controls adjustments or performance of procedures PRODUCTO LASER CLASE 1 other than those specified herein may result in hazardous radiation exposure.

  • Page 3: Table Of Contents

    Thank you for buying this Contents SAMSUNG MICRO-COMPONENT system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features....................................2 AFETY ARNINGS NSTALLING ICRO OMPONENT YSTEM Front Panel View ......................................4...

  • Page 4: Front Panel View

    Front Panel View Volume Power Sound TUNER /Band REC/Pause Surround Mode Demo On/Standby CD Synchro Sleep TAPE Open/Close CD Repeat Mono/ST S.Bass Level Tuning Mode Multi Jog Phones MIC Mixing 1. Function (TUNER/CD/TAPE) 11. Skip or Search 2. REC/Pause 12. Mono/ST Demo 13.

  • Page 5: Remote Control

    Remote Control Timer Timer/ On/Off Clock EQ/S.Bass Sleep TAPE REV. CD SYNC. Display Mode Repeat Program/ Band VOL. TUNE/CD Mode VOL. Mono/ST Mute On/Standby Volume Control EQ/S.Bass Band TAPE Rewind CD Play TAPE Fast-Forward Rec/Pause, CD SYNCHRO Display (RDS) REV. Mode PTY (RDS) Repeat Deck Stop...

  • Page 6: Rear Panel View

    Rear Panel View DIGITAL OUT OPTICAL 1. CD Digital Out jack 2. AUX-Input 3. AM Aerial Connector Terminal 4. FM Aerial Connector Terminal 5. SUBWOOFER Speaker 6. MAIN Speaker...

  • Page 7: Where To Install Your Micro Component System

    Where to Install Your Inserting Remote Control Batteries Micro Component System To take full advantage of your new micro component system, fol- Insert or replace remote control batteries when you: low these installation instructions before connecting the unit. Purchase the micro component system Find that the remote control is no longer operating correctly Install the system on a flat, stable surface.

  • Page 8: Connecting To An External Source

    Connecting to an External Source Speaker Connection The auxiliary input can be used to take advantage of the The System has Main Speaker jacks and Subwoofer Speaker sound quality of your micro component system when listening jacks. to other sources. Main Speaker Connection: Connect the Main Speaker cords Examples: A television...

  • Page 9: Connecting The Am (Mw)/Lw Aerial

    Connecting the AM (MW)/LW Aerial The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM . To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires.

  • Page 10: Viewing The Various Functions On Your System

    Viewing the Various Functions on Setting the Clock Your System You can view the various functions available on your system. Your system is equipped with a clock which allows you to turn your system on and off automatically. You should set the clock: Press the Demo button.

  • Page 11: To Replay The Cd/Mp3-Cd

    To replay the CD/MP3-CD Selecting a Track You can select the track you wish to listen to, either when the You can play 12 cm or 8 cm compact discs without an compact disc player is stopped or when a disc is playing. adapter.

  • Page 12: Searching For A Specific Music Passage On A Cd

    Searching for a Specific Music Passage on a CD When listening to a compact disc, you can quickly search for What is MP3? a specific music passage on a track. MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology.

  • Page 13: Function To Skip Through 10 Tracks At A Time

    Function to skip through 10 Repeating One or All Tracks tracks at a time on the Compact Disc You can repeat indefinitely: Press the +10 button briefly while playing back a A specific track on a compact disc. CD. The track 10 tracks after the current one will then All tracks on the compact disc selected.

  • Page 14: Programming The Order Of Playback

    Checking or Changing Programmed Programming the Order of Playback Tracks (This function is not only available during playback of an MP3-CD.) You can check or change your selection of tracks at any time. You can decide: The order of the track desired to listen The track not desired to listen Press once if you have started listening to the selection.

  • Page 15: Searching For And Storing The Radio Stations

    Searching for and Storing the Radio Selecting a Stored Station Stations You can store up to: You can listen to a stored radio station as follows: 15 FM stations 8 MW stations Switch the system on by pressing On/Standby ( 7 LW stations Select the required frequency band by pressing TUNER/Band on the front panel.

  • Page 16: About Rds Broadcasting

    About RDS broadcasting About RDS DISPLAY function This unit has the RDS (Radio Data System) function, which About "PS NAME" MODE enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Displays the name of broadcasting station. Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal.

  • Page 17: Pty (Program Type) Indication And Pty-Search Function

    PTY (Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, About PTY-SEARCH which helps the FM radio to recognize the program type of each FM station. Tuned to an FM station broadcasting a PTY MODE. The 30 PTY modes are shown in the display by pressing the PTY See the FM receiving method on the page 15.

  • Page 18: Listening To A Cassette

    Selecting the Cassette Listening to a Cassette Playback Mode Your mini-compact system has three cassette playback modes Always treat your cassettes with care; refer, if necessary, to which enable you to listen to both sides of a cassette the section entitled “Precautions When Using Audio Cassettes” automatically.

  • Page 19: Recording A Compact Disc

    Recording a Compact Disc Recording a Radio Program You can record a compact disc on a cassette in two different ways: You can record a radio program of your choice. Synchronised recording You do not need to adjust the volume, as it has no effect on Direct recording the recording.

  • Page 20: Timer Function

    Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. Timer Timer/ On/Off Clock If you no longer want the system to be switched on or off automatically, you must cancel the timer.

  • Page 21: Mute Function

    Mute Function S. Bass Function S.Bass function emphasizes the bass sound to produce the You can turn the sound off temporarily on your system. effect of explosion or booms. Example: You wish to answer a telephone call. Turn the S.Bass Level knob. Press Mute.

  • Page 22: Setting The System To Switch Off Automatically

    Setting the System to Switch off Connecting Headphones Automatically While listening to a compact disc or a cassette, you can You can connect a set of headphones to your mini-compact system so that you can listen to music or radio programmers set the system to switch off automatically without disturbing other people in the room.

  • Page 23: Safety Precautions

    Cleaning Your Micro Component Safety Precautions System The following diagrams illustrate the precautions to be taken To obtain the best possible results from your micro compo- when using or moving your micro component system. nent system, you must clean the following elements regularly: The outer casing The compact disc player The cassette players (heads, rollers and drive capstans)

  • Page 24: Precautions When Using Compact Discs

    If the above guidelines do not allow you to solve the problem, take a note of: The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service.

  • Page 25: Technical Specifications

    Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity 60 dB AM (MW) Signal/noise ratio 40 dB Usable sensitivity 54 dB...
  • Page 26 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-01020B...
