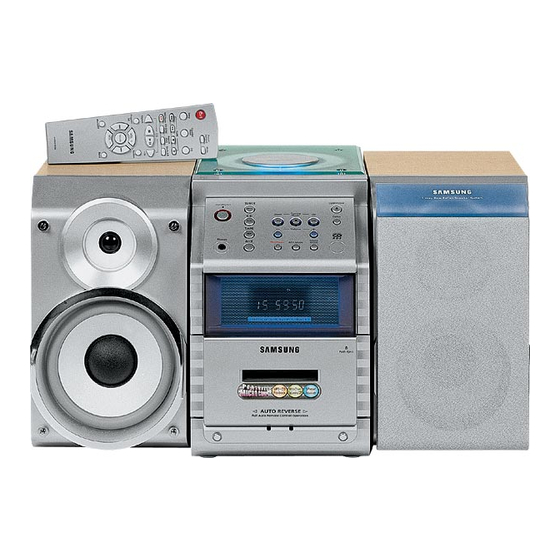

- Page 1 MICRO COMPONENT AUDIO SYSTEM MP3-CD/CD-R/RW PLAYBACK MM-ZB7 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER, NO USER SERVICEABLE PARTS INSIDE, REFER SER- VICING TO QUALIFIED SERVICE PERSONNEL. -
Page 3: Table Of Contents
Before Contacting the After-Sales Service ...23 Technical Specifications ...24 Press Thank you for buying this SAMSUNG micro component system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features. -
Page 4: Front Panel View
Front Panel View Skip or Search Function (TUNER/CD/TAPE/AUX) Standby/On Headphone Jack Connector REC/Pause Stop TUNER Open/Close Band Standby/On Tuning Down Mode Demo TAPE Volume Phones Sound Mode Rec/Pause REV.Mode Push Eject Push Eject CD Door open/close Demo Sound Mode Volume REV.Mode Push Eject (Cassette Door Open/Close) -
Page 5: Remote Control
Remote Control Standby/On EQ/P.Sound TAPE Rewind TAPE Fast-Forward CD SYNCHRO REV. Mode Repeat CD Stop Program/Set Skip or Search Tune/CD mode FM Mono/ST Timer Timer/ On/Off Clock EQ/P.Sound Sleep TAPE REV. CD SYNC. Display Mode Repeat Band VOL. Program/ Tune/CD Mode VOL. -
Page 6: Rear Panel View
Rear Panel View 1. AM Aerial Connector Terminal 2. FM Aerial Connector Terminal 3. AUX-Input 4. CD Digital Out Jack 5. Loudspeakers Connnector Terminals DIGITAL (OPTICAL) -
Page 7: Where To Install Your Micro Component System
Where to Install Your Micro Component System To take full advantage of your new micro component system, fol- low these installation instructions before connecting the unit. Install the system on a flat, stable surface. Never place this unit on carpeting. Never place this unit in an outdoor area. -
Page 8: Connecting To An External Source
Connecting to an External Source The auxiliary input can be used to take advantage of the sound quality of your micro component system when listening to other sources. Examples: A television A video disc player A Hi-Fi stereo video cassette recorder To connect the external source, the source must have an audio output. -
Page 9: Connecting The Am (Mw)/Lw Aerial
Connecting the AM (MW)/LW Aerial The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM . To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires. -
Page 10: Viewing The Various Functions On Your System
Viewing the Various Functions on Your System You can view the various functions available on your system. Press the Demo button. Result: The various functions available are listed in turn on the display. All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections. -
Page 11: To Replay The Cd/Mp3-Cd
To replay the CD/MP3-CD This unit has been designed to playback the CDs: Audio CD, CD Text, CD-R, CD-RW and MP3-CD. Continued use of irregular shape CDs (heart-shape, octagonal, etc.) can damage the unit. Select the CD function by pressing CD( ) button. -
Page 12: Searching For A Specific Music Passage On A Cd
What is MP3? MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology. It uses digital compression technology to compress original sound data by up to 12 times without sound quality degradation. File Compatibility The unit will playback files created in MP3 format (Mpeg1.Layer3) with * .mp3 as their extension. -
Page 13: Programming The Order Of Playback
Programming the Order of Playback (This function is not only available during playback of an MP3-CD.) You can decide: The order of the track desired to listen The track not desired to listen A maximum of up to 24 order of tracks desired to listen may be programmed. -
Page 14: Searching For And Storing The Radio Stations
Searching for and Storing the Radio Stations You can store up to: 15 FM stations 8 MW stations 7 LW stations Switch the system on by pressing Standy/On ( Select the required frequency band by pressing TUNER (Band) again on the front panel or Band on the remote control. Result: The appropriate indication is displayed: AM(MW) To search for a... -
Page 15: About Rds Broadcasting
About RDS broadcasting This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal. Press the Standby /On ( ) button. -
Page 16: Pty(Program Type) Indication And Pty-Search Function
PTY(Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The below 30 PTY information is shown on the display by pressing the Pty button. -
Page 17: Listening To A Cassette
Listening to a Cassette Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 23. Switch the system on by pressing Standby/On ( Open the cassette deck by pushing on the corner of the cover marked Push Eject ( ) until you hear a click and then releasing it. -
Page 18: Recording A Compact Disc
Recording a Compact Disc You can record a compact disc on a cassette in two different ways: Synchronised recording Direct recording Synchronised recording This feature enables you to synchronize the start of the recording with the start of the disc or track of your choice. Switch the system on by pressing Standby/On ( Insert a blank cassette in Deck. -
Page 19: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 20: Canceling The Timer
Canceling the Timer After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it. You can stop the timer at any time (system on or in standby mode). To... -
Page 21: Setting The System To Switch Off Automatically
Setting the System to Switch off Automatically While listening to a compact disc or a cassette, you can set the system to switch off automatically Example: You wish to go to sleep to music. Press Sleep. Result: The following indications are displayed: 90 MIN Press Sleep one or more times to indicate how long the system should continue playing before it switches off:... -
Page 22: Safety Precautions
Safety Precautions The following diagrams illustrate the precautions to be taken when using or moving your micro component system. TUNER Open/Close Standby/On Band Down Tuning Mode Demo TAPE Volume Phones Rec/Pause REV.Mode Sound Mode Push Eject Push Eject Full Auto Remote Control Operation Ambient operating conditions: Do not expose the unit to direct sun Ambient temperature... -
Page 23: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. -
Page 24: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity AM (MW) Signal/noise ratio Usable sensitivity Total harmonic distortion Signal/noise ratio... - Page 25 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-01100B...
