Summary of Contents for Samsung MM-G25

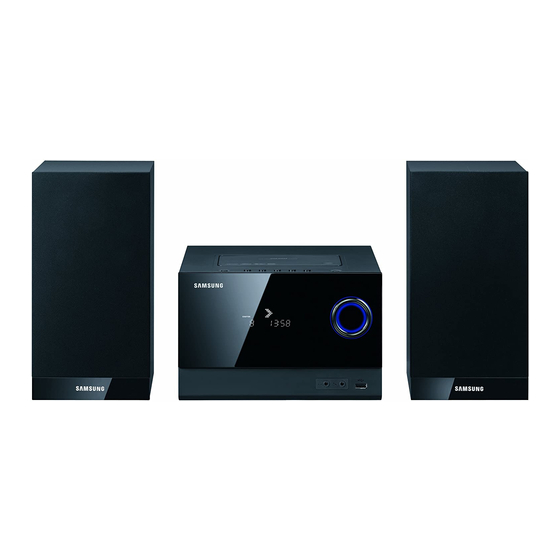

- Page 1 MM-G25 Micro Component Audio system CD/MP3-CD/WMA-CD/CD-R/RW Playback user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register...
-
Page 2: Safety Warnings
Safety Warnings This symbol indicates “dangerous voltage” inside CAUTION the product that presents a risk of electric shock RISK OF ELECTRIC SHOCK. DO NOT OPEN or personal injury. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER (or BACK). This symbol indicates important instructions NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Table Of Contents
Thank you for buying this SAMSUNG micro-compact system. Contents Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features....................................2 afety arningS nStalling icro oMpact ySteM Front Panel View ...................................... -
Page 4: Front Panel View
Front Panel View wINDOw DISPLAy USb JACK COMPACT DISC COMPARTMENT vOLUME CONTROL bUTTON HEADPHONE JACK Top Panel View POwER bUTTON FUNCTION bUTTON SEARCH FUNCTION bUTTON(DOwN) TUNING MODE OR STOP bUTTON PLAy/PAUSE bUTTON 6. SEARCH FUNCTION bUTTON(UP) 7. CD OPEN/CLOSE bUTTON... -
Page 5: Rear Panel View
Rear Panel View AUX IN FM Aerial Connector Terminal Speaker Connector Terminals 4. Clamp-wire (Fasten the speaker wires.) Remote Control 1. POwER 31. REMAIN 2. TUNER 32. DEMO 3. CD 33. SLEEP 4. TIMER/CLOCK 34. USb 5. TIMER ON/OFF 35. AUX 6. -
Page 6: Where To Install Your Micro-Compact System
Where to Install Your Micro-Compact Inserting Remote Control Batteries System Insert or replace remote control batteries when you: To take full advantage of your new micro-compact system, follow Purchase the micro-compact system these installation instructions before connecting the unit. Find that the remote control is no longer operating correctly Install the system on a flat, stable surface. -
Page 7: Connecting To An External Source
Connecting the FM Aerial Connecting to an External Source How to connect a COAXIAL TYPE aerial. The auxiliary input can be used to take advantage of the Connect a 75Ω antenna to the FM antenna terminal. sound quality of your micro-compact system when listening to Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) other sources. -
Page 8: Demo/Dimmer Function
DEMO/DIMMER function Setting the Clock All functions available on the system can be viewed on the Your system is equipped with a clock which allows you to turn your system on and off automatically. display and the display's brightness can be switched between "on"... -
Page 9: To Play The Cd/Mp3/Wma-Cd
Selecting a Track To play the CD/MP3/WMA-CD You can select the track you wish to listen to when a disc is You can play 12 cm or 8 cm compact disc without an adapter. playing. You can play 12 cm or 8 cm compact discs without an adapter.This To play the previous track unit has been designed to playback the CDs: Audio CD, CD-R, Press the... -
Page 10: Function To Skip Through 10 Track At A Time
Function to skip through 10 What is WMA? tracks at a time WMA means Windows Media Audio, the global standard for audio signal compression technology. Press the +10 button briefly while playing back a CD and MP3/WMA-CD . The track 10 tracks after the current one will then be played back. -
Page 11: Repeating One Or All Tracks On The Compact Discs
Repeating One or All Tracks Programming the Order of CD Playback on the Compact Discs (This function is not available during playback of an MP3/WMA-CD.) You can repeat indefinitely: A specific track on a compact disc. You can decide: All tracks on the compact disc selected. The order of the track desired to listen The track not desired to listen You can program up to 24 tracks. -
Page 12: Checking Or Changing Programmed Cd Tracks
Checking or Changing Programmed CD Tracks You can check or change your selection of tracks at any time. Please be aware of the following before using USb. Some external USB storage devices may not be compatible with this Press once if you have started listening to the selection. player. -
Page 13: To Use High Speed Search
To skip next 10 tracks To use high speed search before you begin! Connect the external USB storage device to your player. before you begin! Connect the external USB storage device to your player. Select USB function by using the USB button. Select USB function by using the USB button. -
Page 14: About Rds Broadcasting
About RDS broadcasting About RDS DISPLAy function This unit has the RDS (Radio Data System) function, which enables for About "PS NAME" MODE the various information such as broadcasting station, radio text, time Displays the name of broadcasting station. and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal. -
Page 15: Pty(Program Type) Indication And Pty-Search Function
PTy(Program Type) indication and PTy-SEARCH function About PTy-SEARCH The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. Receive the FM radio. The below 30 PTY information is shown on the display by pressing the ... -
Page 16: Searching For And Storing The Radio Stations
Searching for and Storing the Radio Stations You can store up to: 15 FM stations Switch the system on by pressing STANDby/ON. Select the TUNER function by pressing TUNER. To search for a Press TUNING MODE button station... Once or more times until PRESET is Preset displayed. -
Page 17: Selecting A Stored Station
Selecting a Stored Station Improving Radio Reception you can improve the quality of radio reception by: Rotating the FM aerial Testing the positions of the FM aerials before fixing them permanently You can listen to a stored radio station as follows: If reception from a specific FM radio station is poor, press MO/ST. -
Page 18: Cd Ripping Function
CD RIPPING Function you can rip a compact disc as a MP3 file on the USb This feature enables you to ripping with the start of the disc or track of your choice. Switch the system on by pressing STANDby/ON. Connect the USB. -
Page 19: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 20: Mute Function
Mute Function Bass Level Function BASS function stresses low tones providing thudding sound effects. You can turn the sound off temporarily on your system. Example: You wish to answer a telephone call. Press TREB/BASS button until BASS 00 is displayed. Press button to select from BASS -04 to BASS 04. -
Page 21: Setting The System To Switch Off Automatically
Setting the System to Switch off Connecting Headphones Automatically You can connect a set of headphones to your micro-compact system so that you can listen to music or radio programmers While listening to music, you can set the system to switch without disturbing other people in the room. -
Page 22: Safety Precautions
Cleaning Your Micro-Compact Safety Precautions System The following diagrams illustrate the precautions to be taken To obtain the best possible results from your micro-compact when using or moving your micro-compact system. system, you must clean the following elements regularly: The outer casing The compact disc player The cassette players (heads, rollers and drive capstans) Always unplug the system from the wall outlet:... -
Page 23: Before Contacting The After-Sales Service
The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. Problem Checks/Explanation • The main lead is not correctly plugged into a wall socket or the wall socket is not The system does not work switched on. -
Page 24: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Signal/noise ratio 62 dB Usable sensitivity 10 dB Total harmonic distortion 0.4 %... - Page 25 Contact SAMSUNG wORLD wIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country Customer Care Centre web Site...
- Page 26 AH68-02157B...
