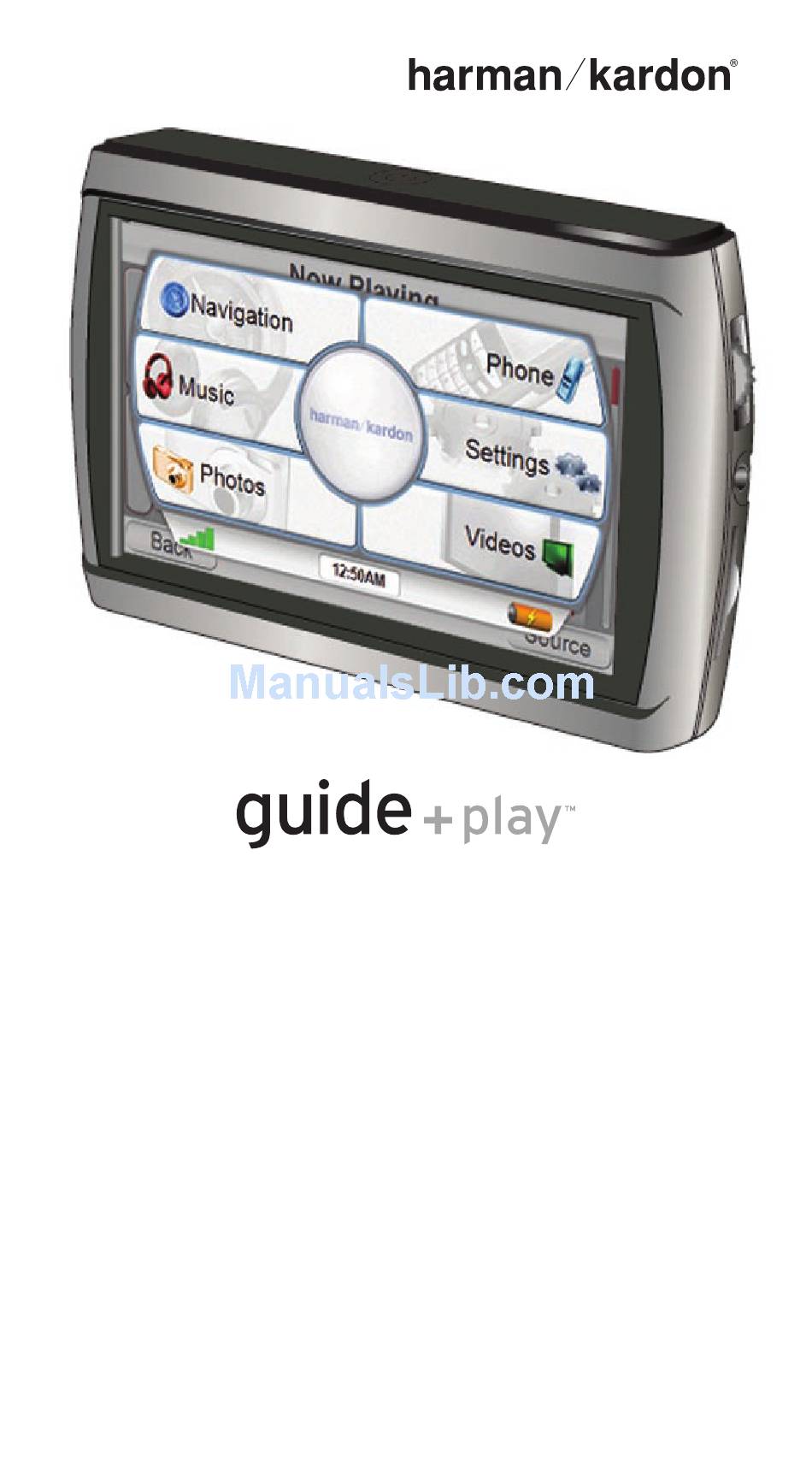

- Page 1 GPS-810 Portable Touchscreen Navigation System and A/V Media Player Quick-Start Guide...
- Page 2 à 0° C (32° F) ou supérieure à 25° C (77° F). La pile du GPS-810 ne se charge pas lorsque la température ambiante est supérieure à 50° C (122° F). El GPS-810 de Harman Kardon® usa una batería de litio-polímero. Bajo condiciones normales de operación, la batería le brindará...
-
Page 3: What's In The Box
What’s in the Box GPS-810 Car Charger Wall Charger USB Cable Quick-Start Guide Carrying Case Fold-Flat Mounting Bracket Plastic Adhesive Disc for Dash-Mount Wireless Remote Control w/Battery Mounting Disc for Wireless Remote Alcohol Cleaning Pads for Mounting Surfaces Before You Begin... -
Page 4: Setup Wizard
The driver must always be aware of the actual road conditions and surroundings, and decide whether or not to follow the information provided by this device. Obey all traffic laws and observe safe driving practices. The manufacturer does not accept responsibility for any inaccurate or incomplete information provided by this device. GPS-810... - Page 5 Plan a Trip Choose “Plan a Trip” Choose “Address” Input the destination Choose “Go” Follow the on-screen prompts GPS-810...
-
Page 6: Connecting A Bluetooth Phone
Connecting a Bluetooth Phone* * A Bluetooth® enabled phone is required operation with GPS-810 calling features. Please read the instructions with your particular phone to determine how to place it into “pairing” or “discovery” mode to set up the connection with GPS-810. -
Page 7: Placing And Receiving Calls
Placing and Receiving Calls You can place and receive calls directly from the screen of GPS-810 once a phone is paired and an external hands-free microphone has been connected (microphone not included). There are several ways in which to place calls... -
Page 8: Loading Media Files
* An SD Memory Card is required for storage of audio and video files. This is not included with the unit and must be purchased separately. Media Files GPS-810 is compatible with the following A/V formats: Audio • MP3 VBR/CBR (8 - 448 kbps), 8 - 48 kHz, ID3 tags (v1 and v2.1 to v2.3) with album art supported. -
Page 9: Using The Multimedia Player
Video Menu Example File Name Scroll Up/Down Choosing “Video” from the source menu brings up the “Video” screen. You can view all the video files stored on the SD card and select one to view by pressing that file name. GPS-810... -
Page 10: In-Vehicle Installation
Check your state and local laws before mounting. Mounting the Unit Select Mounting Location Dash-Mount Install Mounting Base Clean dash with supplied alcohol pad. Install GPS-810 in Mounting Base Adjustment GPS-810 Windshield-Mount Lock Unlock Display... -
Page 11: Install Battery
The knob can be removed by turning the bottom counterclockwise. Screen Dependent Button Function Press once for Source (Same as Right button on Screen) Press and hold for 2 seconds to adjust Brightness from Press to select the highlighted menu item Center outer ring Right GPS-810... - Page 12 Note: The headphone output may also be connected to the line/aux input of an audio device when the GPS-810 is away from the car, but when docked in the mount it’s recommended to use the connection in the mount for easy removal and redocking of the unit.
-
Page 13: Activate Traffic Service
GPS 810’s unique ID number into the form on the website. Press “Activate” on GPS-810 Note: If you’ve signed up for the 90-day trial subscription, please return to the website to purchase a full subscription when the trial has expired. - Page 14 GPS-810 has a feature called “Text to Speech” in which navigation prompts that appear on the screen as text can be configured to be spoken in one of several voices (male or female). You can choose to have only directions announced or both directions and street names.
-
Page 15: Troubleshooting
Ensure the device is enabled for “discovery” or “pairing”. Try pressing the top, center and right buttons simultaneously for 2 seconds, then turn the outer ring until the highlight bar moves. If the control knob is still unresponsive, try a fresh CR2032 type battery. GPS-810... - Page 16 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. For customer and technical support, call 516.255.4545 (USA only). Download the complete GPS-810 User’s Manual at www.guideandplay.com. 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com ©2007 Harman International Industries, Incorporated.
