Summary of Contents for Harman Kardon guide + play GPS-410 EU

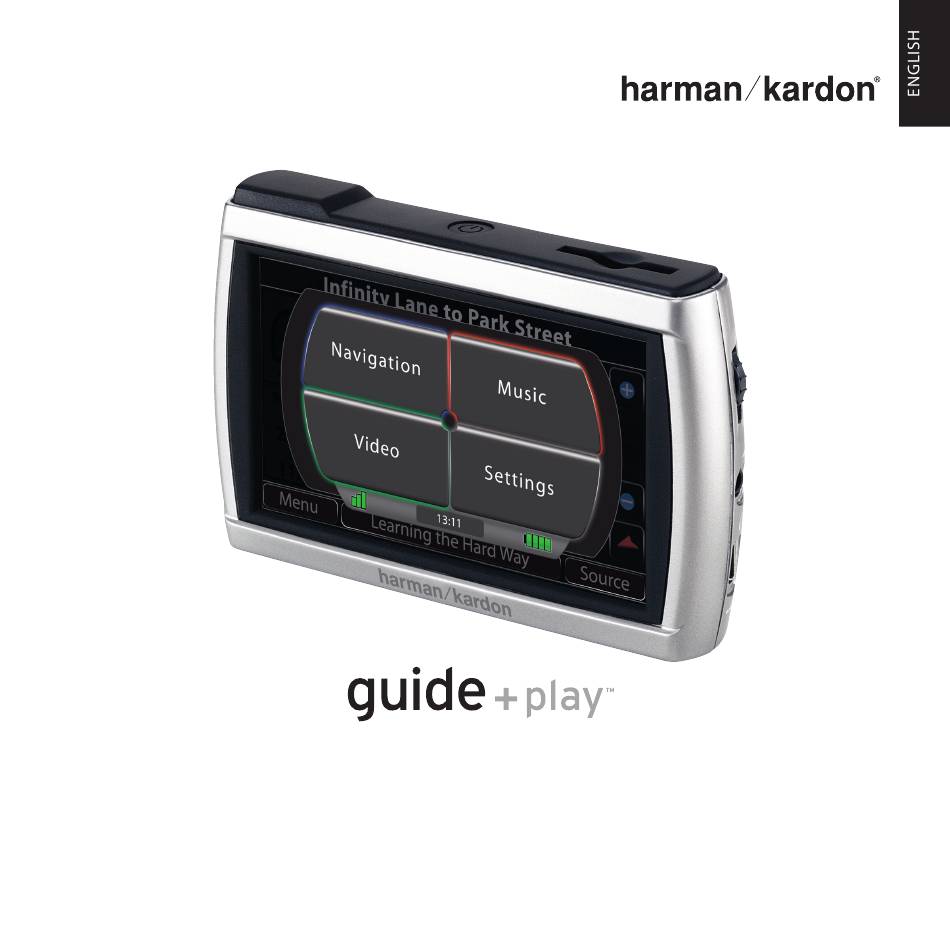

- Page 1 GPS-410 EU / GPS-510 EU Quick-Start Guide...
-
Page 2: What's In The Box
What’s in the Box What’s in the Box Car Charger (12-24 V) Alcohol Cleaning Pad Wall Charger (110-230 V) Quick-Start Guide USB Cable Carrying Case Fold-Flat Mounting Bracket TMC Antenna Plastic Disc for Dash-Mount Download the complete User’s Manual at www.guideandplay.eu Before You Begin Before You Begin Unlock Switch... -
Page 3: Setup Wizard
Setup Wizard Setup Wizard Confi rm Time of Day Select Language Select Units The geographic information provided by this device serves as a navigational aid Select Time Zone only and does not include information pertaining to construction, road closures, speed restrictions, road or traffi c conditions, or other circumstances relevant to public safety. -
Page 4: In-Vehicle Installation
In-Vehicle Installation In-Vehicle Installation Windshield-Mount Select Mounting Location Lock Unlock Install Dash-Mount Mounting Base Do not install this device in any manner that impairs the safe operation of the vehicle. Do not install this device on any airbag panels or in the deployment fi eld Display of any airbags. - Page 5 Plan Your First Trip Plan Your First Trip Choose “Plan a Trip” Choose “Address” Enter Enter Destination Choose “Go” Follow the On-Screen Prompts...
-
Page 6: Loading Media Files
Loading Media Files Loading Media Files * An SD or SD-HC Memory Card (up to Up to 32GB 32GB) is required for storage of media fi les. This is not included with the unit and must be purchased separately. Please use the supplied USB cable. While connected to the PC the GPS unit will be automatically charged. - Page 7 Syncing Media Files Syncing Media Files Requirements Prepare the GPS unit for Sync • PC running Windows XP service pack 2 or higher. • Insert the SD card into the unit’s • In • Windows Media Player 10 or higher installed on PC. SD card slot.
- Page 8 Syncing Media Files Syncing Media Files Select Files Select the fi les you wish to sync from the sync list. If necessary, Windows Media Player will automatically transcode audio or video fi les to the format supported by the GPS unit. In order to do this, the decoder required for the media format must be installed on the PC –...
-
Page 9: Using The Audio Player
Main Menu Main Menu The colour coded menu screen Navigation Menu Music Menu gives you direct access to the (Blue Background) (Red Background) main functionalities of the GPS unit. You can easily get back to the main menu by pushing the “Source”... - Page 10 Listening to Audio (car) Listening to Audio (car) A separate audio cable is not included with the unit and has to be purchased separately if required. To Audio System Please consult the manual of your vehicle’s audio system to fi nd out the correct cable type.
-
Page 11: Troubleshooting
Troubleshooting Troubleshooting SYMPTOM SOLUTION Unit does not turn on at all Charge battery, check UNLOCK switch Unit does not have a good GPS signal Make sure the unit has a clear and unobstructed view of the sky If your vehicle has a heat refl ective shield you might have to use an external GPS antenna. - Page 12 Declaration of Conformity We, Harman Consumer Group, Inc. 8500 Balboa Boulevard, Northridge, CA 91329, USA declare in own responsibility that the product described in this manual is in compliance with technical standards: EN 55022 : 2006 , Class B EN 55024:1998+A1:2001+A2:2003 EN 61000-4-2 : 1995+A1 : 1998+A2 :2000 EN 61000-4-3 : 2002+A1 : 2002 EN 61000-4-4 : 2004...
