1
Accessories
Accesorios
Remote control × 1
Controlador remoto × 1
FM antenna × 1
Antena de FM × 1
3
System connections
Conexiones del sistema
Right speaker
Altavoz derecho
Red
Rojo
Black
Negro
Printed in Malaysia
Impreso en Malaysia
AM loop antenna × 1
Antena de cuadro de AM × 1
®
iPod
adaptor × 8
®
Adaptador del iPod
× 8
FM antenna
Antena de FM
AC INPUT

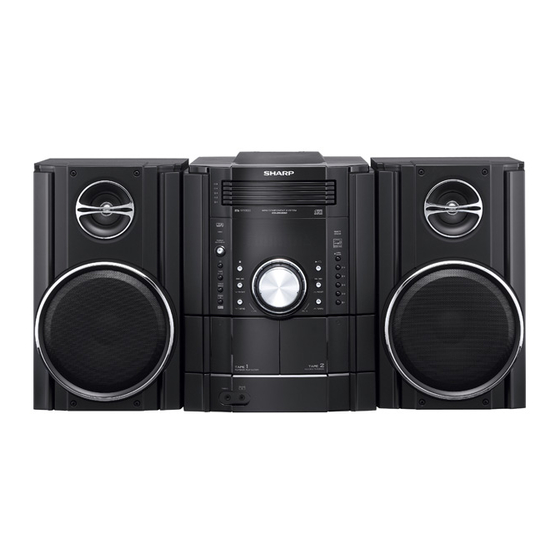

CD-DK890N
MINI COMPONENT SYSTEM
SISTEMA MINI COMPONENTE
2
Remote control battery installation
Instalación de las pilas del controlador
remoto
Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
Batteries are not included.
Use dos pilas del tamaño "AA" (UM/SUM-3, R6, HP-7 o
equivalentes).
Las pilas no están incluidas.
1
Open the battery cover.
Abra la cubierta de las pilas.
2
Insert the batteries as shown.
Inserte las pilas como se muestra.
3
Close the cover.
Cierre la cubierta.
AM loop antenna
Antena de cuadro de AM
Left speaker
Altavoz izquierdo
Speaker connection (see page 11)
Conexion de bócina (ver página 11)
AC outlet
(AC 120 V ~ 60 Hz)
Toma de corriente de CA
(120 V de CA ~ 60 Hz)
ANTENNA
FM
GND
AM
75 OHMS
TINSZA369AWZZ
08G R KI 1
